Case IH Farmall 35A vs New Holland Workmaster 35C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 35C leads 5 categories to 1 (3 tied). Machine pages: Case IH Farmall 35A and New Holland Workmaster 35C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 35A	New Holland Workmaster 35C
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	30.1 hp	▲ 31 hp
Weight (lb)	3,042 lb	▲ 3,062 lb
Loader Lift (lb)	890 lb	▲ 1,344 lb
3-Pt Lift (24 in) (lb)	1,596 lb	1,596 lb
Lift Height (in)	▲ 98 in	92 in
Breakout Force (lbf)	1,900 lbf	▲ 2,138 lbf
Hydraulic Flow (gpm)	13.3 gpm	13.3 gpm
Travel Speed (mph)	14.8 mph	▲ 14.9 mph

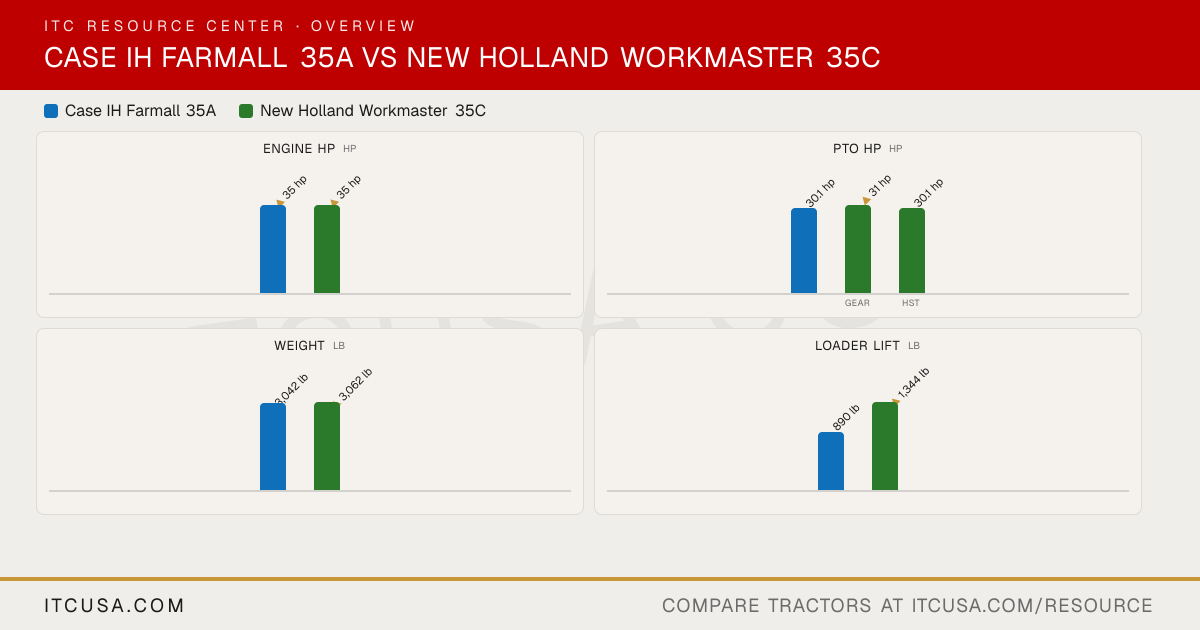

The headline numbers at a glance.

Case IH Farmall 35ANew Holland Workmaster 35C

Engine HPhp

▲35 hp

PTO HPhp

30.1 hp

▲31 hp

30.1 hp

GearHST

Weightlb

3,042 lb

▲3,062 lb

Loader Liftlb

890 lb

▲1,344 lb

3-Pt Lift (24 in)lb

▲1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35A	New HollandWorkmaster 35C


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, Tier 4 B/Final	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	30.1 hp	Gear: 31 hp; HST: 30.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Liquid cooled
Air Cleaner	Not Published	Dual-element
Fuel System	Not Published	Common rail direct injection
Alternator	85 A, 12 V	70 A

Pump Type	Not Published	Dual pump (dedicated steering pump)
Implement Flow	8.4 gpm	8.4 gpm
Steering Flow	Not Published	4.9 gpm
Total Hydraulic Flow	13.3 gpm	13.3 gpm
Overall Hydraulic Pump Flow	Not Published	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None (rear remotes optional)
No. of Optional Remote Valves	3	Up to 3

Fuel Tank Capacity	12.6 gal	12.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent, electro-hydraulic engagement	Gear: transmission-driven with overrunning clutch; HST: independent, electrohydraulic wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	Not Published	2,067 lb
Hitch Lift Capacity (at 24”)	1,596 lb	1,596 lb
Lift Control Type	Mechanical Draft Control (MDC)	Position control with drop-rate control

Transmission Type	3-range hydrostatic (optional)	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	3 ranges	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	14.8 mph (with R4 tires)	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	n/a (no clutch on hydrostatic)	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Not Published	Power steering (dedicated steering pump)
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	Mechanical Front Drive (MFD)	4WD front axle, engaged by handle in front of the seat
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.5 in	65.4 in (outside of rear tires, dished in)
Wheelbase	66.2 in	66 in
Ground Clearance	Not Published	12.7 in
Min. Turn Radius without Brakes	10.5 ft	123.2 in
Height to Top of ROPS	96.2 in	92.4 in
Height to Top of ROPS (folded)	74.2 in	74 in
Height to Top of Cab Model	Not Published	Not Published
Overall Length	119.4 in	133 in

Tractor Weight (Base)	3,042 lb	3,062 lb
Weight with ROPS and Loader	Not Published	4,131 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, or R4 Industrial	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	7x14	Not Published
R1 Agricultural - Rear	11.2x24	Not Published
R3 Turf - Front	25x8.50-14	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16-20

Quick Attach Loader System	Not Published	Skid steer quick attach
Loader Model	L340A	250LC
Loader Lift Height	98 in	250LC: 92 in
Loader Lift Capacity (Full Height)	890 lb at 31.5 in forward of pivot pin	250LC: 1,344 lb (at bucket pivot pin, max height)
Loader Breakout Force	1,900 lb	250LC: 2,138 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Basic 24 months or 750 hours; powertrain 72 months or 1,500 hours

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 35A vs New Holland Workmaster 35C: Quick Answers

Which has more horsepower, the Case IH Farmall 35A or the New Holland Workmaster 35C?: They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 35A or the New Holland Workmaster 35C?: The New Holland Workmaster 35C leads on pto hp at 31 hp hp, compared to 30.1 hp hp for the Case IH Farmall 35A.
Which is heavier, the Case IH Farmall 35A or the New Holland Workmaster 35C?: The New Holland Workmaster 35C leads on weight at 3,062 lb lb, compared to 3,042 lb lb for the Case IH Farmall 35A.
Which has more loader lift capacity, the Case IH Farmall 35A or the New Holland Workmaster 35C?: The New Holland Workmaster 35C leads on loader lift at 1,344 lb lb, compared to 890 lb lb for the Case IH Farmall 35A.
Which has more three-point hitch lift capacity, the Case IH Farmall 35A or the New Holland Workmaster 35C?: They are effectively tied: both machines are rated at 1,596 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 35A	New Holland Workmaster 35C
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	30.1 hp	▲ 31 hp
Weight (lb)	3,042 lb	▲ 3,062 lb
Loader Lift (lb)	890 lb	▲ 1,344 lb
3-Pt Lift (24 in) (lb)	1,596 lb	1,596 lb
Lift Height (in)	▲ 98 in	92 in
Breakout Force (lbf)	1,900 lbf	▲ 2,138 lbf
Hydraulic Flow (gpm)	13.3 gpm	13.3 gpm
Travel Speed (mph)	14.8 mph	▲ 14.9 mph

The headline numbers at a glance.

Case IH Farmall 35ANew Holland Workmaster 35C

Engine HPhp

▲35 hp

PTO HPhp

30.1 hp

▲31 hp

30.1 hp

GearHST

Weightlb

3,042 lb

▲3,062 lb

Loader Liftlb

890 lb

▲1,344 lb

3-Pt Lift (24 in)lb

▲1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35A	New HollandWorkmaster 35C


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, Tier 4 B/Final	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	30.1 hp	Gear: 31 hp; HST: 30.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Liquid cooled
Air Cleaner	Not Published	Dual-element
Fuel System	Not Published	Common rail direct injection
Alternator	85 A, 12 V	70 A

Pump Type	Not Published	Dual pump (dedicated steering pump)
Implement Flow	8.4 gpm	8.4 gpm
Steering Flow	Not Published	4.9 gpm
Total Hydraulic Flow	13.3 gpm	13.3 gpm
Overall Hydraulic Pump Flow	Not Published	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None (rear remotes optional)
No. of Optional Remote Valves	3	Up to 3

Fuel Tank Capacity	12.6 gal	12.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent, electro-hydraulic engagement	Gear: transmission-driven with overrunning clutch; HST: independent, electrohydraulic wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	Not Published	2,067 lb
Hitch Lift Capacity (at 24”)	1,596 lb	1,596 lb
Lift Control Type	Mechanical Draft Control (MDC)	Position control with drop-rate control

Transmission Type	3-range hydrostatic (optional)	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	3 ranges	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	14.8 mph (with R4 tires)	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	n/a (no clutch on hydrostatic)	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Not Published	Power steering (dedicated steering pump)
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	Mechanical Front Drive (MFD)	4WD front axle, engaged by handle in front of the seat
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.5 in	65.4 in (outside of rear tires, dished in)
Wheelbase	66.2 in	66 in
Ground Clearance	Not Published	12.7 in
Min. Turn Radius without Brakes	10.5 ft	123.2 in
Height to Top of ROPS	96.2 in	92.4 in
Height to Top of ROPS (folded)	74.2 in	74 in
Height to Top of Cab Model	Not Published	Not Published
Overall Length	119.4 in	133 in

Tractor Weight (Base)	3,042 lb	3,062 lb
Weight with ROPS and Loader	Not Published	4,131 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, or R4 Industrial	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	7x14	Not Published
R1 Agricultural - Rear	11.2x24	Not Published
R3 Turf - Front	25x8.50-14	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16-20

Quick Attach Loader System	Not Published	Skid steer quick attach
Loader Model	L340A	250LC
Loader Lift Height	98 in	250LC: 92 in
Loader Lift Capacity (Full Height)	890 lb at 31.5 in forward of pivot pin	250LC: 1,344 lb (at bucket pivot pin, max height)
Loader Breakout Force	1,900 lb	250LC: 2,138 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Basic 24 months or 750 hours; powertrain 72 months or 1,500 hours

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 35A vs New Holland Workmaster 35C: Quick Answers

Which has more horsepower, the Case IH Farmall 35A or the New Holland Workmaster 35C?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 35A or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on pto hp at 31 hp hp, compared to 30.1 hp hp for the Case IH Farmall 35A.

Which is heavier, the Case IH Farmall 35A or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on weight at 3,062 lb lb, compared to 3,042 lb lb for the Case IH Farmall 35A.

Which has more loader lift capacity, the Case IH Farmall 35A or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on loader lift at 1,344 lb lb, compared to 890 lb lb for the Case IH Farmall 35A.

Which has more three-point hitch lift capacity, the Case IH Farmall 35A or the New Holland Workmaster 35C?

They are effectively tied: both machines are rated at 1,596 lb lb for 3-pt lift (24 in).
