Bad Boy Tractors 4025 vs New Holland Workmaster 35C

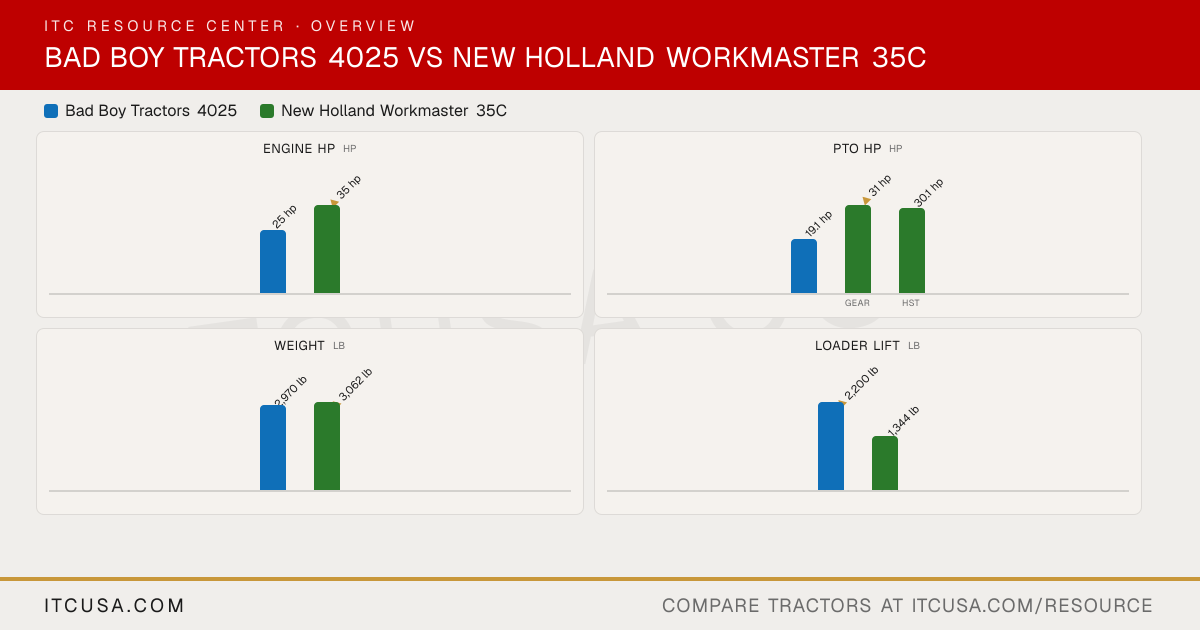

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Bad Boy Tractors 4025, 4 to the New Holland Workmaster 35C. Machine pages: Bad Boy Tractors 4025 and New Holland Workmaster 35C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	New HollandWorkmaster 35C

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N6-BUTR_3	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	104.7 in³	114.7 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	19.1 hp	Gear: 31 hp; HST: 30.1 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry	Dual-element
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	70 A
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Dual pump (dedicated steering pump)
Implement Flow	7.5 gpm	8.4 gpm
Steering Flow	4 gpm	4.9 gpm
Total Hydraulic Flow	11.5 gpm	13.3 gpm
Overall Hydraulic Pump Flow	11.5 gpm	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0 (rear remotes optional)
No. of Optional Remote Valves	2	Up to 3
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	12.6 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Gear: transmission-driven with overrunning clutch; HST: independent, electrohydraulic wet clutch
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	3,307 lb	2,067 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,596 lb
Lift Control Type	Position control	Position control with drop-rate control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	3 range (A/B/C)	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	Not Published	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock, mechanical (foot-engaged)
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Power steering (dedicated steering pump)
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	Selectable 4WD	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	133 in
Overall Width	56.7 in	65.4 in
Wheelbase	65.7 in	66 in
Ground Clearance	15 in	12.7 in
Min. Turn Radius without Brakes	Not Published	123.2 in
Height to Top of ROPS	96.85 in	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,970 lb	3,062 lb
Weight with ROPS and Loader	Not Published	4,131 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 / 15-19.5)	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	8.0-16	Not Published
R1 Agricultural - Rear	12.4-24	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	15-19.5	43x16-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Skid steer quick attach
Loader Model	BBL400	250LC
Loader Lift Height	104 in	250LC: 92 in
Loader Lift Capacity (Full Height)	2,200 lb	250LC: 1,344 lb
Loader Breakout Force	3,660 lbf	250LC: 2,138 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 24 months or 750 hours; powertrain 72 months or 1,500 hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 4025 vs New Holland Workmaster 35C: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on pto hp at 31 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on weight at 3,062 lb lb, compared to 2,970 lb lb for the Bad Boy Tractors 4025.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the New Holland Workmaster 35C?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,344 lb lb for the New Holland Workmaster 35C.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the New Holland Workmaster 35C?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,596 lb lb for the New Holland Workmaster 35C.
