Bad Boy Tractors 3026 vs New Holland Workmaster 35C

Across 9 measurable specs, the New Holland Workmaster 35C leads 9 categories to 0. Machine pages: Bad Boy Tractors 3026 and New Holland Workmaster 35C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	New HollandWorkmaster 35C

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1100N2	Not Published
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	71.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	18 hp	Gear: 31 hp; HST: 30.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry element	Dual-element
Fuel System	Indirect injection (swirl chamber)	Common rail direct injection
Alternator	50 A, 12 V	70 A
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Dual pump (dedicated steering pump)
Implement Flow	4.3 gpm	8.4 gpm
Steering Flow	3.1 gpm	4.9 gpm
Total Hydraulic Flow	7.4 gpm	13.3 gpm
Overall Hydraulic Pump Flow	7.7 gpm	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None (rear remotes optional)
No. of Optional Remote Valves	1	Up to 3
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	12.6 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Gear: transmission-driven with overrunning clutch; HST: independent, electrohydraulic wet clutch
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	1,433 lb	2,067 lb
Hitch Lift Capacity (at 24”)	974 lb	1,596 lb
Lift Control Type	Position control	Position control with drop-rate control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	3 range (L/M/H)	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	14.8 mph	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock, mechanical (foot-engaged)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering (dedicated steering pump)
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	Selectable 4WD	4WD front axle, engaged by handle in front of the seat
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.8 in	65.4 in
Wheelbase	65.7 in	66 in
Ground Clearance	16.4 in	12.7 in
Min. Turn Radius without Brakes	Not Published	123.2 in
Height to Top of ROPS	91.4 in	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	Not Published	Not Published
Overall Length	110 in	133 in
▶Weight
Tractor Weight (Base)	2,106 lb	3,062 lb
Weight with ROPS and Loader	Not Published	4,131 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	7-16 6PR	Not Published
R1 Agricultural - Rear	11.2-20	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	14x17.5	43x16-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Skid steer quick attach
Loader Model	BBL300	250LC
Loader Lift Height	86 in	250LC: 92 in
Loader Lift Capacity (Full Height)	1,314 lb	250LC: 1,344 lb (at bucket pivot pin, max height)
Loader Breakout Force	1,960 lbf	250LC: 2,138 lb (at bucket pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 24 months or 750 hours; powertrain 72 months or 1,500 hours
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

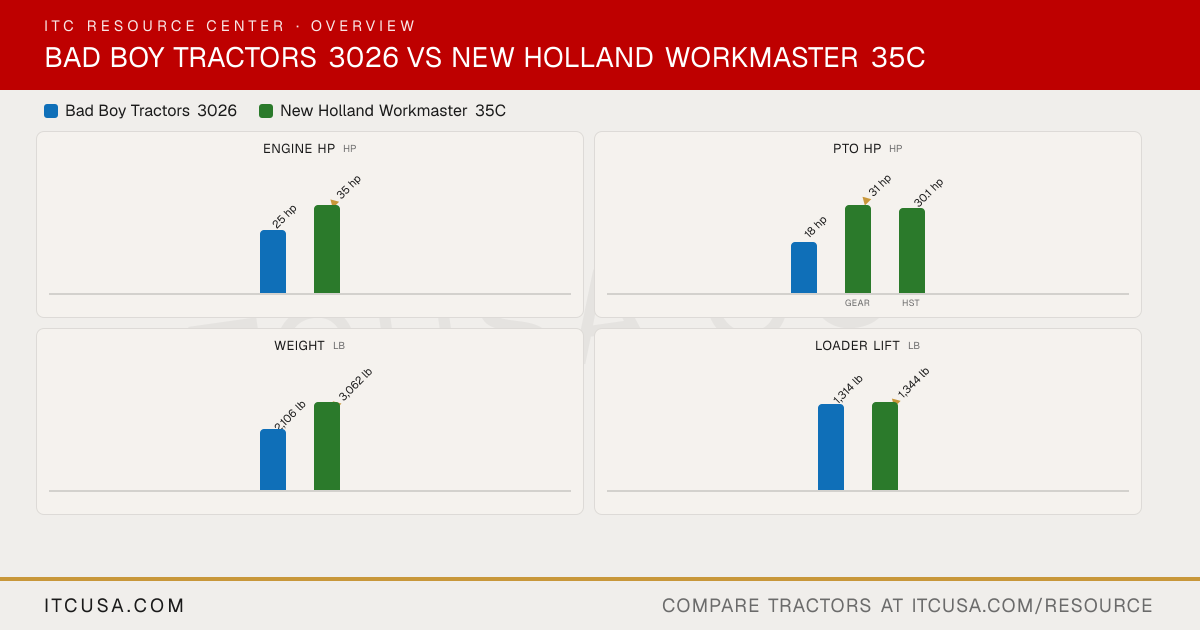

Bad Boy Tractors 3026 vs New Holland Workmaster 35C: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on pto hp at 31 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on weight at 3,062 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on loader lift at 1,344 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on 3-pt lift (24 in) at 1,596 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
