Case IH Farmall 35C vs Case IH Farmall 40A Mechanical

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Case IH Farmall 35C leads 7 categories to 2. Machine pages: Case IH Farmall 35C and Case IH Farmall 40A Mechanical.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 35C	Case IH Farmall 40A Mechanical
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	28 hp	▲ 35.9 hp
Weight (lb)	▲ 3,175 lb	3,053 lb
Loader Lift (lb)	▲ 1,540 lb	890 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,596 lb
Lift Height (in)	▲ 105 in	98 in
Breakout Force (lbf)	▲ 2,640 lbf	1,900 lbf
Hydraulic Flow (gpm)	▲ 13.5 gpm	13.3 gpm
Travel Speed (mph)	▲ 14.8 mph	14.2 mph

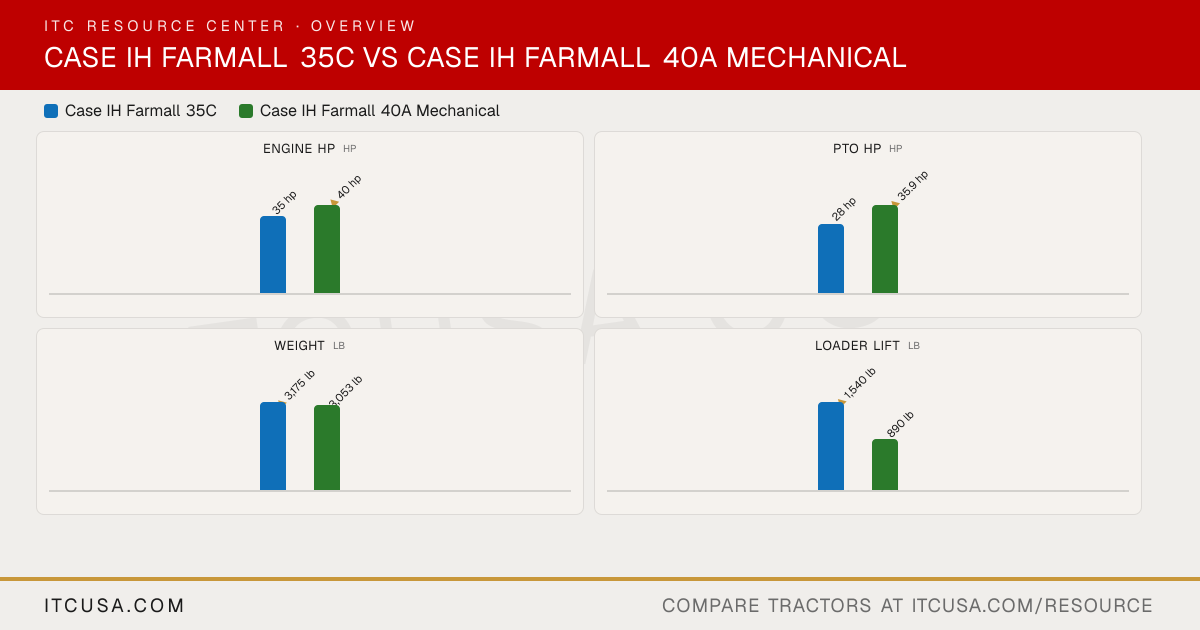

The headline numbers at a glance.

Case IH Farmall 35CCase IH Farmall 40A Mechanical

Engine HPhp

35 hp

▲40 hp

PTO HPhp

28 hp

▲35.9 hp

Weightlb

▲3,175 lb

3,053 lb

Loader Liftlb

▲1,540 lb

890 lb

3-Pt Lift (24 in)lb

▲1,808 lb

1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35C	Case IHFarmall 40A Mechanical


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3C19-T5	Not Published
Engine Type	Diesel, 3-cylinder, turbocharged	3-cylinder, turbocharged diesel, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	115.9 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	28 hp	35.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Not Published
Air Cleaner	Replaceable dry element	Not Published
Fuel System	Common rail direct injection	Not Published
Alternator	70 A	Not Published

Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.4 gpm
Steering Flow	5.3 gpm	Not Published
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed)	13.3 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0
No. of Optional Remote Valves	2	3

Fuel Tank Capacity	10.5 gal	12.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	1,808 lb	1,596 lb
Lift Control Type	Mechanical draft control (MDC)	Mechanical Draft Control (MDC)

Transmission Type	3-range hydrostatic (HST)	12x12 mechanical shuttle with synchro shift (dry clutch) (standard)
No. of Speeds	Infinitely variable, 3 ranges	12 forward, 12 reverse
Max Travel Speed (Forward)	14.8 mph	14.2 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Applicable	Dry clutch
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Not Published
Brakes	Wet multi-disc	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.4 in	66.5 in
Wheelbase	66 in	66.2 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	10.5 ft
Height to Top of ROPS	93.5 in	96.2 in
Height to Top of ROPS (folded)	74.1 in	74.2 in
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	122.5 in	119.4 in

Tractor Weight (Base)	3,175 lb	3,053 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, or R4 Industrial
R1 Agricultural - Front	7-14	7x14
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20

Quick Attach Loader System	Quick-Attach faceplate; mid-mount frame with fast loader connect and disconnect (L350A)	Not Published
Loader Model	L350A	L340A
Loader Lift Height	105 in	98 in
Loader Lift Capacity (Full Height)	1,540 lb at 31.5 in forward of pivot pin	890 lb at 31.5 in. forward of pivot pin
Loader Breakout Force	2,640 lb	1,900 lb

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year, 72-month total)	Basic 2 years; powertrain 4 additional years (6-year total)

Find a Case IH dealer near you

Case IH Farmall 35C vs Case IH Farmall 40A Mechanical: Quick Answers

Which has more horsepower, the Case IH Farmall 35C or the Case IH Farmall 40A Mechanical?: The Case IH Farmall 40A Mechanical leads on engine hp at 40 hp hp, compared to 35 hp hp for the Case IH Farmall 35C.
Which has more PTO horsepower, the Case IH Farmall 35C or the Case IH Farmall 40A Mechanical?: The Case IH Farmall 40A Mechanical leads on pto hp at 35.9 hp hp, compared to 28 hp hp for the Case IH Farmall 35C.
Which is heavier, the Case IH Farmall 35C or the Case IH Farmall 40A Mechanical?: The Case IH Farmall 35C leads on weight at 3,175 lb lb, compared to 3,053 lb lb for the Case IH Farmall 40A Mechanical.
Which has more loader lift capacity, the Case IH Farmall 35C or the Case IH Farmall 40A Mechanical?: The Case IH Farmall 35C leads on loader lift at 1,540 lb lb, compared to 890 lb lb for the Case IH Farmall 40A Mechanical.
Which has more three-point hitch lift capacity, the Case IH Farmall 35C or the Case IH Farmall 40A Mechanical?: The Case IH Farmall 35C leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,596 lb lb for the Case IH Farmall 40A Mechanical.

More Head-to-Heads

Farmall 40A Mechanical

Farmall 40A Mechanical

Farmall 40A Mechanical

Farmall 40A Mechanical

Bad Boy Tractors

5045 Cab

Compare

Category Verdict

Spec	Case IH Farmall 35C	Case IH Farmall 40A Mechanical
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	28 hp	▲ 35.9 hp
Weight (lb)	▲ 3,175 lb	3,053 lb
Loader Lift (lb)	▲ 1,540 lb	890 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,596 lb
Lift Height (in)	▲ 105 in	98 in
Breakout Force (lbf)	▲ 2,640 lbf	1,900 lbf
Hydraulic Flow (gpm)	▲ 13.5 gpm	13.3 gpm
Travel Speed (mph)	▲ 14.8 mph	14.2 mph

The headline numbers at a glance.

Case IH Farmall 35CCase IH Farmall 40A Mechanical

Engine HPhp

35 hp

▲40 hp

PTO HPhp

28 hp

▲35.9 hp

Weightlb

▲3,175 lb

3,053 lb

Loader Liftlb

▲1,540 lb

890 lb

3-Pt Lift (24 in)lb

▲1,808 lb

1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35C	Case IHFarmall 40A Mechanical


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3C19-T5	Not Published
Engine Type	Diesel, 3-cylinder, turbocharged	3-cylinder, turbocharged diesel, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	115.9 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	28 hp	35.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Not Published
Air Cleaner	Replaceable dry element	Not Published
Fuel System	Common rail direct injection	Not Published
Alternator	70 A	Not Published

Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.4 gpm
Steering Flow	5.3 gpm	Not Published
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed)	13.3 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0
No. of Optional Remote Valves	2	3

Fuel Tank Capacity	10.5 gal	12.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	1,808 lb	1,596 lb
Lift Control Type	Mechanical draft control (MDC)	Mechanical Draft Control (MDC)

Transmission Type	3-range hydrostatic (HST)	12x12 mechanical shuttle with synchro shift (dry clutch) (standard)
No. of Speeds	Infinitely variable, 3 ranges	12 forward, 12 reverse
Max Travel Speed (Forward)	14.8 mph	14.2 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Applicable	Dry clutch
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Not Published
Brakes	Wet multi-disc	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.4 in	66.5 in
Wheelbase	66 in	66.2 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	10.5 ft
Height to Top of ROPS	93.5 in	96.2 in
Height to Top of ROPS (folded)	74.1 in	74.2 in
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	122.5 in	119.4 in

Tractor Weight (Base)	3,175 lb	3,053 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, or R4 Industrial
R1 Agricultural - Front	7-14	7x14
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20

Quick Attach Loader System	Quick-Attach faceplate; mid-mount frame with fast loader connect and disconnect (L350A)	Not Published
Loader Model	L350A	L340A
Loader Lift Height	105 in	98 in
Loader Lift Capacity (Full Height)	1,540 lb at 31.5 in forward of pivot pin	890 lb at 31.5 in. forward of pivot pin
Loader Breakout Force	2,640 lb	1,900 lb

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year, 72-month total)	Basic 2 years; powertrain 4 additional years (6-year total)

Find a Case IH dealer near you

Case IH Farmall 35C vs Case IH Farmall 40A Mechanical: Quick Answers

Which has more horsepower, the Case IH Farmall 35C or the Case IH Farmall 40A Mechanical?

The Case IH Farmall 40A Mechanical leads on engine hp at 40 hp hp, compared to 35 hp hp for the Case IH Farmall 35C.

Which has more PTO horsepower, the Case IH Farmall 35C or the Case IH Farmall 40A Mechanical?

The Case IH Farmall 40A Mechanical leads on pto hp at 35.9 hp hp, compared to 28 hp hp for the Case IH Farmall 35C.

Which is heavier, the Case IH Farmall 35C or the Case IH Farmall 40A Mechanical?

The Case IH Farmall 35C leads on weight at 3,175 lb lb, compared to 3,053 lb lb for the Case IH Farmall 40A Mechanical.

Which has more loader lift capacity, the Case IH Farmall 35C or the Case IH Farmall 40A Mechanical?

The Case IH Farmall 35C leads on loader lift at 1,540 lb lb, compared to 890 lb lb for the Case IH Farmall 40A Mechanical.

Which has more three-point hitch lift capacity, the Case IH Farmall 35C or the Case IH Farmall 40A Mechanical?

The Case IH Farmall 35C leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,596 lb lb for the Case IH Farmall 40A Mechanical.
