Bad Boy Tractors 4025 vs Case IH Farmall 35C

Across 8 measurable specs, the Case IH Farmall 35C leads 5 categories to 3. Machine pages: Bad Boy Tractors 4025 and Case IH Farmall 35C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	Case IHFarmall 35C

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N6-BUTR_3	L3C19-T5
Engine Type	Vertical, 4-stroke, water-cooled diesel	Not Published
No. of Cylinders	3	3
Displacement	104.5 in³	115.9 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	19.1 hp	28 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry	Replaceable dry element
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	70 A
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Not Published
Implement Flow	7.5 gpm	8.2 gpm
Steering Flow	4 gpm	Hydro: 5.3 gpm; Gear: 4.2 gpm
Total Hydraulic Flow	11.5 gpm	13.5 gpm (8.2 + 5.3, computed)
Overall Hydraulic Pump Flow	11.5 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 2	2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	10.5 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent rear PTO, electro-hydraulic engagement
PTO Rear	Not Published	540 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	1,808 lb
Lift Control Type	Position control	Mechanical draft control (MDC)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	3-range hydrostatic (HST)
No. of Speeds	3 range (A/B/C)	infinitely variable, 3 ranges
Max Travel Speed (Forward)	Not Published	Hydro: 14.8 mph; Gear: 14.2 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Not Applicable
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical differential lock
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Power steering
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Not Published	Adjustable suspension seat
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	122.5 in
Overall Width	56.7 in	66.4 in
Wheelbase	65.7 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	74.1 in
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,970 lb	3,175 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 / 15-19.5)	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	8.0-16	7-14
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	15-19.5	43x16.00-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Quick-Attach faceplate; mid-mount frame with fast loader connect and disconnect (L350A)
Loader Model	BBL400	L350A
Loader Lift Height	104 in	105 in
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1,540 lb at 31.5 in forward of pivot pin
Loader Breakout Force	3,660 lbf	2,640 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years; powertrain 4 additional years (6-year, 72-month total)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Case IH dealer near you→

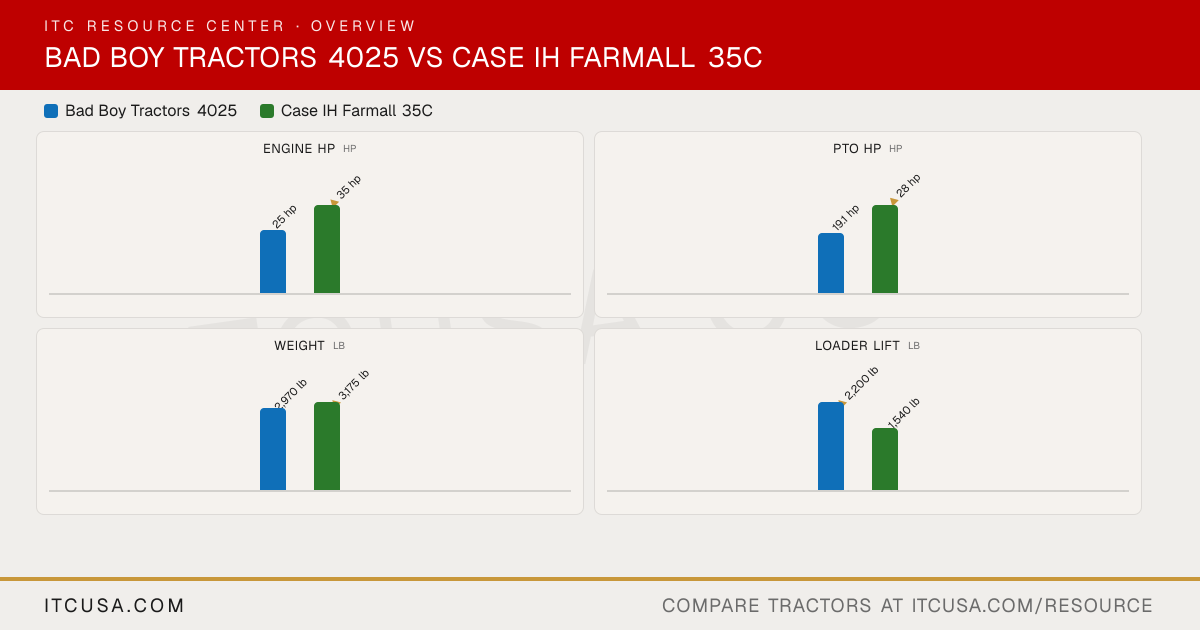

Bad Boy Tractors 4025 vs Case IH Farmall 35C: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Case IH Farmall 35C?

The Case IH Farmall 35C leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Case IH Farmall 35C?

The Case IH Farmall 35C leads on pto hp at 28 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the Case IH Farmall 35C?

The Case IH Farmall 35C leads on weight at 3,175 lb lb, compared to 2,970 lb lb for the Bad Boy Tractors 4025.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Case IH Farmall 35C?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,540 lb lb for the Case IH Farmall 35C.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Case IH Farmall 35C?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,808 lb lb for the Case IH Farmall 35C.
