Case IH Farmall 35C Gear vs New Holland Workmaster 35
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the Case IH Farmall 35C Gear leads 4 categories to 3 (2 tied). Machine pages: Case IH Farmall 35C Gear and New Holland Workmaster 35.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

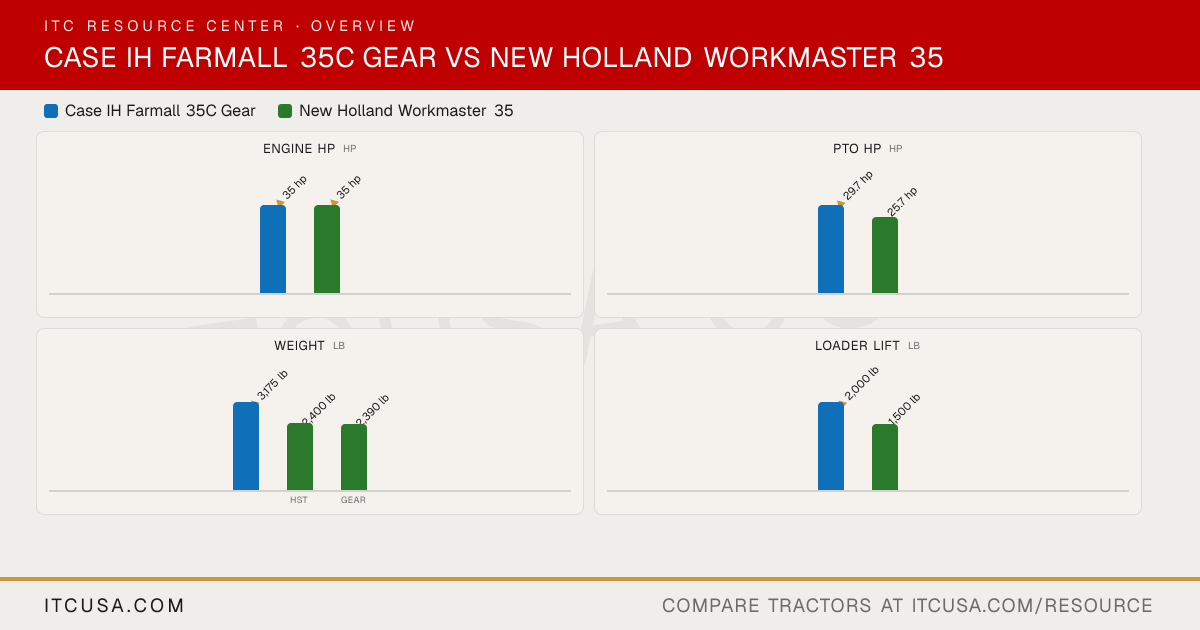

Category Verdict
| Spec | Case IH Farmall 35C Gear | New Holland Workmaster 35 |
|---|---|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | ▲ 29.7 hp | 25.7 hp |
| Weight (lb) | ▲ 3,175 lb | 2,400 lb |
| Loader Lift (lb) | ▲ 2,000 lb | 1,500 lb |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | 1,433 lb |
| Lift Height (in) | ▲ 105 in | 91.5 in |
| Breakout Force (lbf) | 2,640 lbf | ▲ 2,700 lbf |
| Hydraulic Flow (gpm) | 8.2 gpm | ▲ 13 gpm |
| Travel Speed (mph) | 14.2 mph | ▲ 15 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 35C Gear | New HollandWorkmaster 35 |
|---|
| Engine Manufacturer | Not Published | LS Mtron |
|---|---|---|
| Engine Model | Not Published | LS Mtron L3C19-T |
| Engine Type | Diesel, 3-cylinder, turbocharged | Turbocharged diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 116 in³ | 114.7 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 35 hp | 35 hp |
| PTO Power | 29.7 hp | 25.7 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4B Final |
| Cooling System Type | Not Published | Pressurized liquid with recirculating bypass |
| Air Cleaner | Replaceable dry element | Dual element dry air cleaner |
| Fuel System | Common rail direct injection | High pressure common rail (ECU controlled timing) |
| Alternator | 70 A | 70 A, 12 V |
Case IH Farmall 35C Gear vs New Holland Workmaster 35: Quick Answers
- Which has more horsepower, the Case IH Farmall 35C Gear or the New Holland Workmaster 35?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 35C Gear or the New Holland Workmaster 35?
- The Case IH Farmall 35C Gear leads on pto hp at 29.7 hp hp, compared to 25.7 hp hp for the New Holland Workmaster 35.
- Which is heavier, the Case IH Farmall 35C Gear or the New Holland Workmaster 35?
- The Case IH Farmall 35C Gear leads on weight at 3,175 lb lb, compared to 2,400 lb lb for the New Holland Workmaster 35.
- Which has more loader lift capacity, the Case IH Farmall 35C Gear or the New Holland Workmaster 35?
- The Case IH Farmall 35C Gear leads on loader lift at 2,000 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 35.
- Which has more three-point hitch lift capacity, the Case IH Farmall 35C Gear or the New Holland Workmaster 35?
- They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
