Case IH Farmall 40A vs Kioti DK4220SEH

Across 9 measurable specs, the Kioti DK4220SEH leads 7 categories to 2. Machine pages: Case IH Farmall 40A and Kioti DK4220SEH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 40A	KiotiDK4220SEH

▶Engine
Engine Manufacturer	LS Mtron	KIOTI (Daedong)
Engine Model	L3C19-T4	3H-TH4D
Engine Type	3-cylinder, turbocharged diesel, Tier 4 B/Final	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	116 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	39.6 hp
PTO Power	32 hp	29.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Pressurized liquid cooling with recirculating bypass	Liquid-cooled
Air Cleaner	Not Published	Dry element
Fuel System	High pressure common rail	Not Published
Alternator	70 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear	Gear
Implement Flow	8.2 gpm	9.62 gpm
Steering Flow	5.3 gpm	6.87 gpm
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed)	16.5 gpm
Overall Hydraulic Pump Flow	Not Published	16.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	2
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.4 gal	12.7 gal
Coolant Capacity	7.5 qt	2.1 gal
Crankcase Capacity	5.8 qt	1.95 gal
Transmission / Hydraulic System Capacity	8.5 gal	11.4 gal
Front Axle Fluid Capacity	6.9 qt	1.48 gal
▶PTO & Hitch
PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	2,998 lb
Hitch Lift Capacity (at 24”)	1,433 lb	2,716 lb
Lift Control Type	Mechanical Draft Control (MDC)	Position
▶Transmission & Drivetrain
Transmission Type	3-range hydrostatic (optional)	Hydrostatic (HST)
No. of Speeds	infinite, 3 ranges	3 ranges (hydrostatic, infinite speeds)
Max Travel Speed (Forward)	14.8 mph	18.45 mph
Max Travel Speed (Reverse)	14.96 mph	12.92 mph
Clutch	Dry clutch	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Mechanical differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc, mechanical actuation	Wet multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Deluxe suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	145.2 in	125.5 in
Overall Width	66.5 in	62.8 in
Wheelbase	67.2 in	71.3 in
Ground Clearance	Not Published	14.5 in
Min. Turn Radius without Brakes	123 in	102.8 in (with brake applied)
Height to Top of ROPS	87.6 in	96.8 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	93.0 in
▶Weight
Tractor Weight (Base)	3,067 lb	3,523 lb (DK4220SEH); 4,043 lb (DK4220SEH CAB)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 agricultural, R3 turf, or R4 industrial (R4 standard)	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	7x14	8-16
R1 Agricultural - Rear	11.2x24	13.6-24
R3 Turf - Front	25x8.50-14	29-12.5-15
R3 Turf - Rear	41x14.00-20	21.5L-16.1
R4 Industrial - Front	25x8.50-14	10-16.5
R4 Industrial - Rear	43x16.00-20	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Not Published	Quick attach (QA) bucket, 66 in or 72 in
Loader Model	L340A	KL5520; KL5521 (Cab models)
Loader Lift Height	98.4 in	KL5520: 107.7 in; KL5521: 107.7 in
Loader Lift Capacity (Full Height)	1,250 lb	KL5520: 2,474 lb; KL5521: 2,474 lb
Loader Breakout Force	1913 lb	KL5520: 3,895 lb; KL5521: 3,895 lb
▶Warranty
Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a Case IH dealer near you→Find a KIOTI dealer near you→

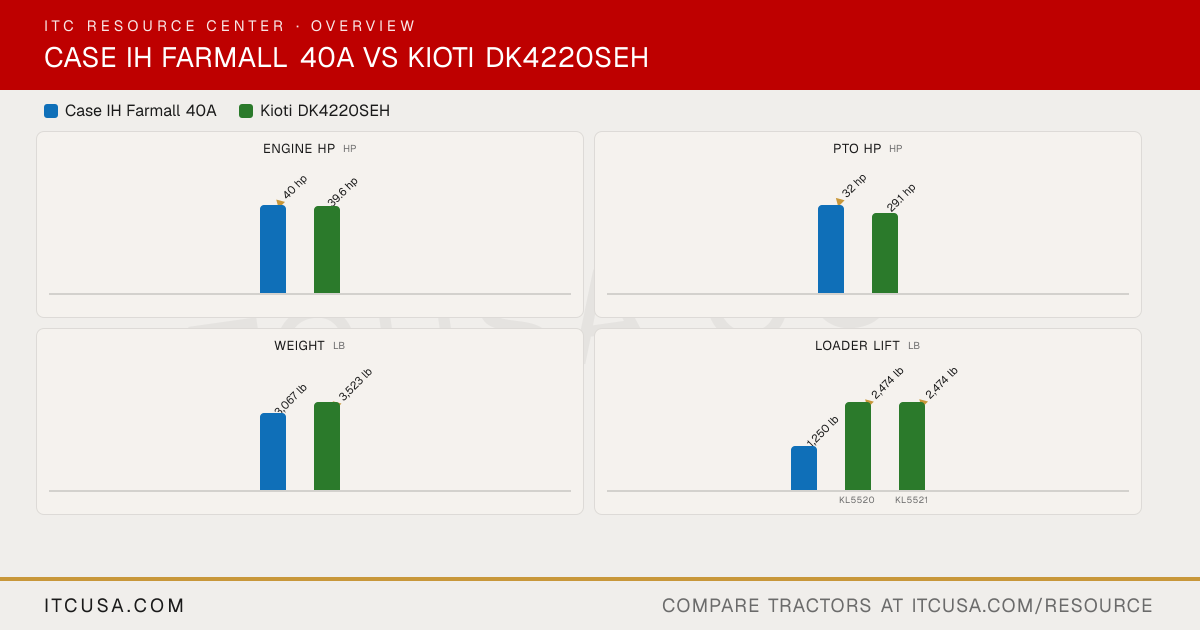

Case IH Farmall 40A vs Kioti DK4220SEH: Quick Answers

Which has more horsepower, the Case IH Farmall 40A or the Kioti DK4220SEH?

The Case IH Farmall 40A leads on engine hp at 40 hp hp, compared to 39.6 hp hp for the Kioti DK4220SEH.

Which has more PTO horsepower, the Case IH Farmall 40A or the Kioti DK4220SEH?

The Case IH Farmall 40A leads on pto hp at 32 hp hp, compared to 29.1 hp hp for the Kioti DK4220SEH.

Which is heavier, the Case IH Farmall 40A or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on weight at 3,523 lb lb, compared to 3,067 lb lb for the Case IH Farmall 40A.

Which has more loader lift capacity, the Case IH Farmall 40A or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on loader lift at 2,474 lb lb, compared to 1,250 lb lb for the Case IH Farmall 40A.

Which has more three-point hitch lift capacity, the Case IH Farmall 40A or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 1,433 lb lb for the Case IH Farmall 40A.
