Case IH Farmall 50A vs New Holland Workmaster 50

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the New Holland Workmaster 50 leads 5 categories to 0 (2 tied). Machine pages: Case IH Farmall 50A and New Holland Workmaster 50.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 50A	New Holland Workmaster 50
Engine HP (hp)	53 hp	▲ 53.7 hp
PTO HP (hp)	45 hp	▲ 46.2 hp
Weight (lb)	5,060 lb	n/a
Loader Lift (lb)	2,734 lb	▲ 3,130 lb
3-Pt Lift (24 in) (lb)	2,701 lb	2,701 lb
Lift Height (in)	106 in	▲ 122 in
Breakout Force (lbf)	3,527 lbf	3,527 lbf
Hydraulic Flow (gpm)	17.4 gpm	▲ 17.5 gpm
Travel Speed (mph)	n/a	19.8 mph

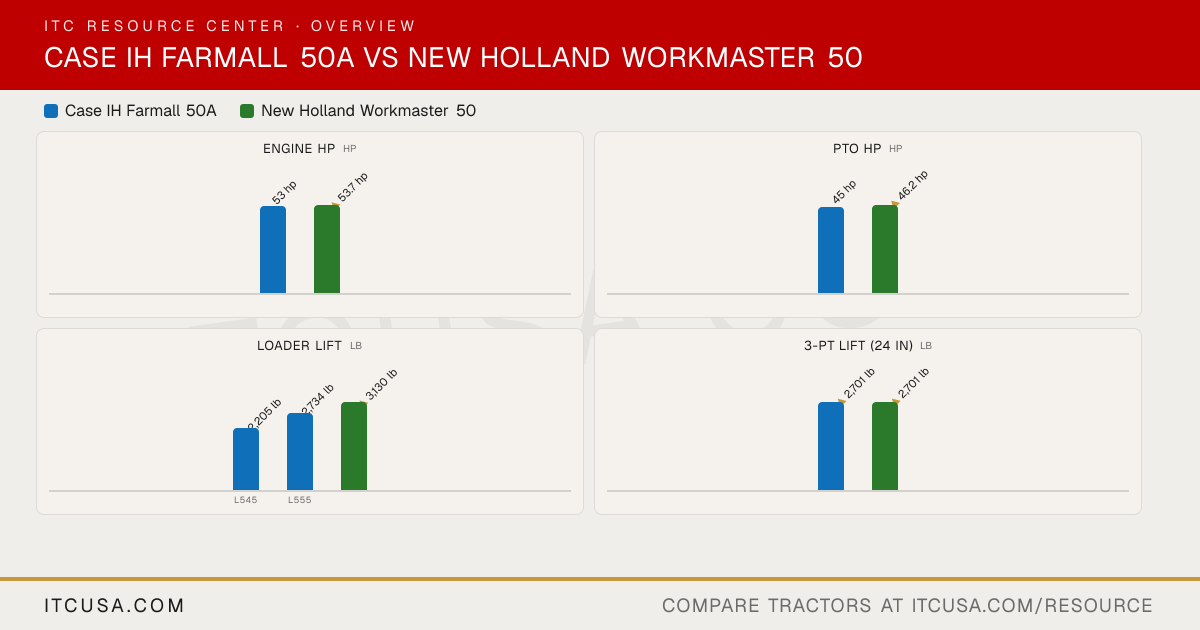

The headline numbers at a glance.

Case IH Farmall 50ANew Holland Workmaster 50

Engine HPhp

53 hp

▲53.7 hp

PTO HPhp

45 hp

▲46.2 hp

Weightlb

▲5,060 lb

4,442 lb

n/a

MFD2WD

Loader Liftlb

1,565 lb

2,205 lb

1,940 lb

2,734 lb

▲3,130 lb

L545 NSLL545 MSLL555 NSLL555 MSL

3-Pt Lift (24 in)lb

▲2,701 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 50A	New HollandWorkmaster 50


Engine Manufacturer	FPT	FPT Industrial
Engine Model	Not Published	n/a
Engine Type	3-cylinder, FPT turbocharged & aftercooled	Turbocharged, intercooled 3-cylinder diesel
No. of Cylinders	3	3
Displacement	135.9 in³	136 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	53 hp	53.7 hp
PTO Power	45 hp	46.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Dry	Inner and outer paper elements
Fuel System	Electronic high pressure common rail	CRDI
Alternator	75 A	75 A, 12 V

Pump Type	Engine-driven dual gear-type	Open-center; dual pumps
Implement Flow	11.9 gpm	12 gpm
Steering Flow	5.5 gpm	5.5 gpm
Total Hydraulic Flow	17.4 gpm (11.9 + 5.5, computed)	17.5 gpm
Overall Hydraulic Pump Flow	Not Published	17.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	2	2

Fuel Tank Capacity	17.2 gal	17.2 gal
Coolant Capacity	Not Published	10.6 qt
Crankcase Capacity	Not Published	6.7 qt
Transmission / Hydraulic System Capacity	Not Published	6.6 gal
Front Axle Fluid Capacity	Not Published	8.0 qt

PTO Type	Independent	Independent
PTO Rear	540 / 540E	540 rpm
Mid-PTO Availability	Not Published	Not Applicable
Category, 3-Point Hitch	Category 1/2	Category II/I
Hitch Lift Capacity	Not Published	3,307 lb at ball ends
Hitch Lift Capacity (at 24”)	2,701 lb	2,701 lb
Lift Control Type	Mechanical Draft Control (MDC), top link sensing	Not Published

Transmission Type	8x8 mechanical shuttle (dry clutch)	8x8 synchronized shuttle
No. of Speeds	8 forward / 8 reverse	8F/8R
Max Travel Speed (Forward)	Not Published	19.8 mph
Max Travel Speed (Reverse)	Not Published	20.9 mph
Clutch	Dry clutch	LUK, 11 in
Differential Lock & Limited Slip Options	Mechanical rear differential lock; limited-slip MFD front axle	Rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Power
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	Not Published
Front Axle Rating	Not Published	6,500 lb dynamic capacity
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	MFD: 134.0 in; 2WD: 129.5 in	134.0 in
Overall Width	67.5 in	67.5 in
Wheelbase	MFD: 77.7 in; 2WD: 77.5 in	77.2 in
Ground Clearance	Not Published	15.9 in
Min. Turn Radius without Brakes	MFD: 190.9 in; 2WD: 135.8 in	190.9 in
Height to Top of ROPS	MFD: 97.4 in; 2WD: 92.7 in	97.6 in
Height to Top of ROPS (folded)	75.9 in	77.0 in
Height to Top of Cab Model	Not Published	105.4 in

Tractor Weight (Base)	MFD: 5,060 lb; 2WD: 4,442 lb	n/a
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 agricultural (bar tread) or R4 industrial tread	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	MFD: 8.3x24; 2WD: 7.5x16	8.3X24, 6 ply
R1 Agricultural - Rear	MFD: 13.6x28; 2WD: 13.6x28	13.6X28R1, 6 ply; 14.9X28R1, 6 ply
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	MFD: 12.5x18	12.5X18
R4 Industrial - Rear	MFD: 18.4x24	18.4X24R4

Quick Attach Loader System	Compatible loaders: L545, L555	600TL: Front loader (quick-attach design)
Loader Model	L545; L555	n/a
Loader Lift Height	L545: 106 in; L555: 105 in	Up to 122 in
Loader Lift Capacity (Full Height)	L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb	Up to 3,130 lb
Loader Breakout Force	L545: 3,131 lb; L555: 3,527 lb	Up to 3,527 lb

Warranty Length & Coverage	Not Published	Not Published

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 50A vs New Holland Workmaster 50: Quick Answers

Which has more horsepower, the Case IH Farmall 50A or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on engine hp at 53.7 hp hp, compared to 53 hp hp for the Case IH Farmall 50A.
Which has more PTO horsepower, the Case IH Farmall 50A or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on pto hp at 46.2 hp hp, compared to 45 hp hp for the Case IH Farmall 50A.
Which has more loader lift capacity, the Case IH Farmall 50A or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on loader lift at 3,130 lb lb, compared to 2,734 lb lb for the Case IH Farmall 50A.
Which has more three-point hitch lift capacity, the Case IH Farmall 50A or the New Holland Workmaster 50?: They are effectively tied: both machines are rated at 2,701 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 50A	New Holland Workmaster 50
Engine HP (hp)	53 hp	▲ 53.7 hp
PTO HP (hp)	45 hp	▲ 46.2 hp
Weight (lb)	5,060 lb	n/a
Loader Lift (lb)	2,734 lb	▲ 3,130 lb
3-Pt Lift (24 in) (lb)	2,701 lb	2,701 lb
Lift Height (in)	106 in	▲ 122 in
Breakout Force (lbf)	3,527 lbf	3,527 lbf
Hydraulic Flow (gpm)	17.4 gpm	▲ 17.5 gpm
Travel Speed (mph)	n/a	19.8 mph

The headline numbers at a glance.

Case IH Farmall 50ANew Holland Workmaster 50

Engine HPhp

53 hp

▲53.7 hp

PTO HPhp

45 hp

▲46.2 hp

Weightlb

▲5,060 lb

4,442 lb

n/a

MFD2WD

Loader Liftlb

1,565 lb

2,205 lb

1,940 lb

2,734 lb

▲3,130 lb

L545 NSLL545 MSLL555 NSLL555 MSL

3-Pt Lift (24 in)lb

▲2,701 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 50A	New HollandWorkmaster 50


Engine Manufacturer	FPT	FPT Industrial
Engine Model	Not Published	n/a
Engine Type	3-cylinder, FPT turbocharged & aftercooled	Turbocharged, intercooled 3-cylinder diesel
No. of Cylinders	3	3
Displacement	135.9 in³	136 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	53 hp	53.7 hp
PTO Power	45 hp	46.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Dry	Inner and outer paper elements
Fuel System	Electronic high pressure common rail	CRDI
Alternator	75 A	75 A, 12 V

Pump Type	Engine-driven dual gear-type	Open-center; dual pumps
Implement Flow	11.9 gpm	12 gpm
Steering Flow	5.5 gpm	5.5 gpm
Total Hydraulic Flow	17.4 gpm (11.9 + 5.5, computed)	17.5 gpm
Overall Hydraulic Pump Flow	Not Published	17.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	2	2

Fuel Tank Capacity	17.2 gal	17.2 gal
Coolant Capacity	Not Published	10.6 qt
Crankcase Capacity	Not Published	6.7 qt
Transmission / Hydraulic System Capacity	Not Published	6.6 gal
Front Axle Fluid Capacity	Not Published	8.0 qt

PTO Type	Independent	Independent
PTO Rear	540 / 540E	540 rpm
Mid-PTO Availability	Not Published	Not Applicable
Category, 3-Point Hitch	Category 1/2	Category II/I
Hitch Lift Capacity	Not Published	3,307 lb at ball ends
Hitch Lift Capacity (at 24”)	2,701 lb	2,701 lb
Lift Control Type	Mechanical Draft Control (MDC), top link sensing	Not Published

Transmission Type	8x8 mechanical shuttle (dry clutch)	8x8 synchronized shuttle
No. of Speeds	8 forward / 8 reverse	8F/8R
Max Travel Speed (Forward)	Not Published	19.8 mph
Max Travel Speed (Reverse)	Not Published	20.9 mph
Clutch	Dry clutch	LUK, 11 in
Differential Lock & Limited Slip Options	Mechanical rear differential lock; limited-slip MFD front axle	Rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Power
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	Not Published
Front Axle Rating	Not Published	6,500 lb dynamic capacity
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	MFD: 134.0 in; 2WD: 129.5 in	134.0 in
Overall Width	67.5 in	67.5 in
Wheelbase	MFD: 77.7 in; 2WD: 77.5 in	77.2 in
Ground Clearance	Not Published	15.9 in
Min. Turn Radius without Brakes	MFD: 190.9 in; 2WD: 135.8 in	190.9 in
Height to Top of ROPS	MFD: 97.4 in; 2WD: 92.7 in	97.6 in
Height to Top of ROPS (folded)	75.9 in	77.0 in
Height to Top of Cab Model	Not Published	105.4 in

Tractor Weight (Base)	MFD: 5,060 lb; 2WD: 4,442 lb	n/a
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 agricultural (bar tread) or R4 industrial tread	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	MFD: 8.3x24; 2WD: 7.5x16	8.3X24, 6 ply
R1 Agricultural - Rear	MFD: 13.6x28; 2WD: 13.6x28	13.6X28R1, 6 ply; 14.9X28R1, 6 ply
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	MFD: 12.5x18	12.5X18
R4 Industrial - Rear	MFD: 18.4x24	18.4X24R4

Quick Attach Loader System	Compatible loaders: L545, L555	600TL: Front loader (quick-attach design)
Loader Model	L545; L555	n/a
Loader Lift Height	L545: 106 in; L555: 105 in	Up to 122 in
Loader Lift Capacity (Full Height)	L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb	Up to 3,130 lb
Loader Breakout Force	L545: 3,131 lb; L555: 3,527 lb	Up to 3,527 lb

Warranty Length & Coverage	Not Published	Not Published

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 50A vs New Holland Workmaster 50: Quick Answers

Which has more horsepower, the Case IH Farmall 50A or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on engine hp at 53.7 hp hp, compared to 53 hp hp for the Case IH Farmall 50A.

Which has more PTO horsepower, the Case IH Farmall 50A or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on pto hp at 46.2 hp hp, compared to 45 hp hp for the Case IH Farmall 50A.

Which has more loader lift capacity, the Case IH Farmall 50A or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on loader lift at 3,130 lb lb, compared to 2,734 lb lb for the Case IH Farmall 50A.

Which has more three-point hitch lift capacity, the Case IH Farmall 50A or the New Holland Workmaster 50?

They are effectively tied: both machines are rated at 2,701 lb lb for 3-pt lift (24 in).
