Across 7 measurable specs, the Case IH Farmall Compact 35C leads 3 categories to 1 (3 tied). Machine pages: Case IH Farmall Compact 35A and Case IH Farmall Compact 35C.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall Compact 35A | Case IH Farmall Compact 35C |
|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | ▲ 29.7 hp | 28 hp |
| Loader Lift (lb) | 890 lb | ▲ 1,540 lb |
| 3-Pt Lift (24 in) (lb) | 1,808 lb | 1,808 lb |
| Lift Height (in) | 98 in | ▲ 105 in |
| Breakout Force (lbf) | 1,900 lbf | ▲ 2,640 lbf |
| Hydraulic Flow (gpm) | 8.2 gpm | 8.2 gpm |

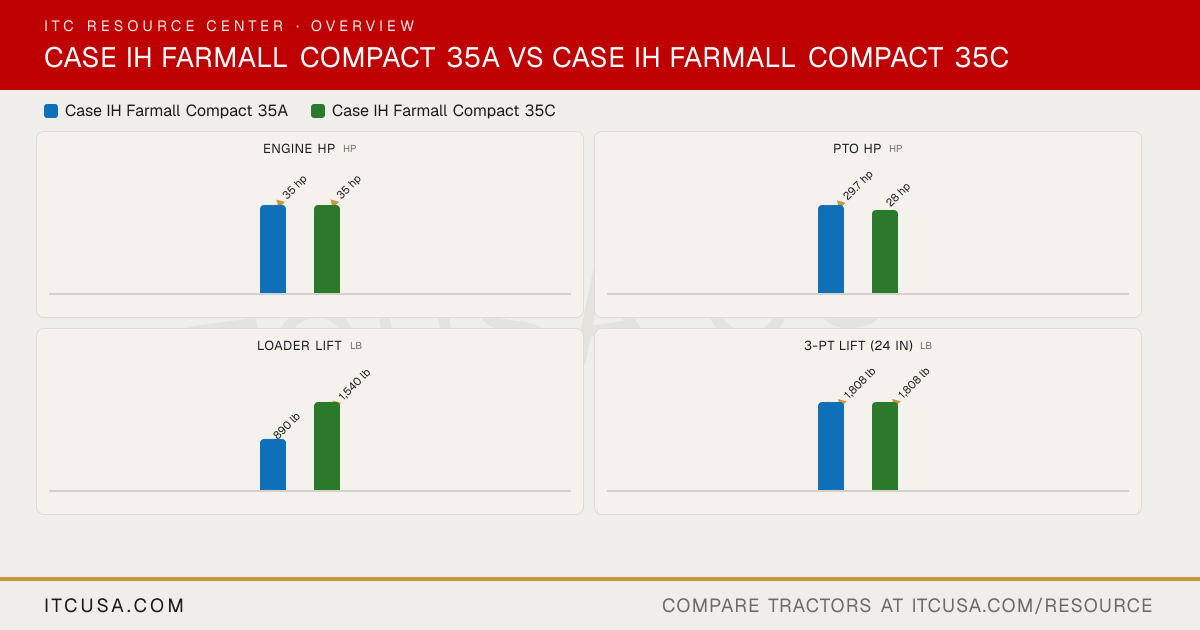

The headline numbers at a glance.
Case IH Farmall Compact 35ACase IH Farmall Compact 35C
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall Compact 35A | Case IHFarmall Compact 35C |
|---|
|
|---|
| PTO Power | 29.7 hp | 28 hp |
|---|
| Alternator | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Engine Type | Diesel, turbocharged | Diesel, naturally aspirated |
|---|
| Fuel System | Not Published | Common Rail Direct Injection |
|---|
| Displacement | 115.9 in³ | 115.9 in³ |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Rated Engine Speed | 2600 rpm | Not Published |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Engine Manufacturer | Not Published | Not Published |
|---|
| Engine Power (Gross) | 35 hp | 35 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Applicable |
|---|
|
|---|
| Warranty Length & Coverage | 6-year extended warranty: 2 years bumper-to-bumper + 4 years powertrain (Compact Farmall A “Series II”) | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Steering Flow | Not Published | Not Published |
|---|
| Implement Flow | 8.2 gpm | Not Published |
|---|
| Total Hydraulic Flow | Not Published | 8.2 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | 1 | Not Published |
|---|
| No. of Standard Remote Valves | 0 | Not Published |
|---|
|
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| PTO Type | Rear independent 540 rpm PTO with electro-hydraulic engagement (standard) | Independent rear PTO (electro-hydraulic engagement) |
|---|
| Lift Control Type | Mechanical Draft Control (MDC) | Not Published |
|---|
| Hitch Lift Capacity | 1,808 lb @ 24 in behind pin | Not Published |
|---|
| Mid-PTO Availability | Optional mid-PTO (2,000 rpm) | Available, 2,000 rpm |
|---|
| Category, 3-Point Hitch | Category 1 | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 1,808 lb @ 24 in behind pin | 1,808 lb @ 24 in behind pin |
|---|
|
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
|
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Fuel Tank Capacity | 7.4 gal | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
|
|---|
| Loader Lift Height | 98 in | 105 in |
|---|
| Loader Breakout Force | 1,900 lb | 2,640 lb |
|---|
| Quick Attach Loader System | L340A | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 890 lb | 1,540 lb |
|---|
|
|---|
| Clutch | Dry clutch (mechanical shuttle) | Not Published |
|---|
| No. of Speeds | 12F/12R (mechanical shuttle); optional 3-range hydrostatic | 12x12 (mechanical shuttle) / 3-range (hydrostatic) |
|---|
| Transmission Type | 12x12 mechanical shuttle with synchro shift (dry clutch) (standard); optional 3-range hydrostatic | Mechanical shuttle or hydrostatic |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical differential lock | Not Published |
|---|
|
|---|
| Brakes | Not Published | Not Published |
|---|
| Steering | Not Published | Not Published |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | Mechanical Front Drive (MFD) | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
|
|---|
| Wheelbase | 67.3 in | Not Published |
|---|
| Overall Width | Not Published | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Height to Top of ROPS | 93.5 in | Not Published |
|---|
| Height to Top of Cab Model | Not Applicable | Not Applicable |
|---|
| Height to Top of ROPS (folded) | 68.2 in | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 122.5 in | Not Published |
|---|
Case IH Farmall Compact 35A vs Case IH Farmall Compact 35C: Quick Answers
- Which has more horsepower, the Case IH Farmall Compact 35A or the Case IH Farmall Compact 35C?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall Compact 35A or the Case IH Farmall Compact 35C?
- The Case IH Farmall Compact 35A leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35C.
- Which has more loader lift capacity, the Case IH Farmall Compact 35A or the Case IH Farmall Compact 35C?
- The Case IH Farmall Compact 35C leads on loader lift at 1,540 lb lb, compared to 890 lb lb for the Case IH Farmall Compact 35A.
- Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35A or the Case IH Farmall Compact 35C?
- They are effectively tied: both machines are rated at 1,808 lb lb for 3-pt lift (24 in).
