Case IH Farmall Compact 40C vs New Holland Boomer 40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 5 measurable specs, the Case IH Farmall Compact 40C leads 3 categories to 1 (1 tied). Machine pages: Case IH Farmall Compact 40C and New Holland Boomer 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 40C	New Holland Boomer 40
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	▲ 34 hp	32 hp
Loader Lift (lb)	1,540 lb	▲ 1,822 lb
3-Pt Lift (24 in) (lb)	—	1,433 lb
Lift Height (in)	▲ 105 in	104 in
Breakout Force (lbf)	▲ 2,640 lbf	2,444 lbf
Hydraulic Flow (gpm)	—	13.8 gpm
Travel Speed (mph)	—	14.8 mph

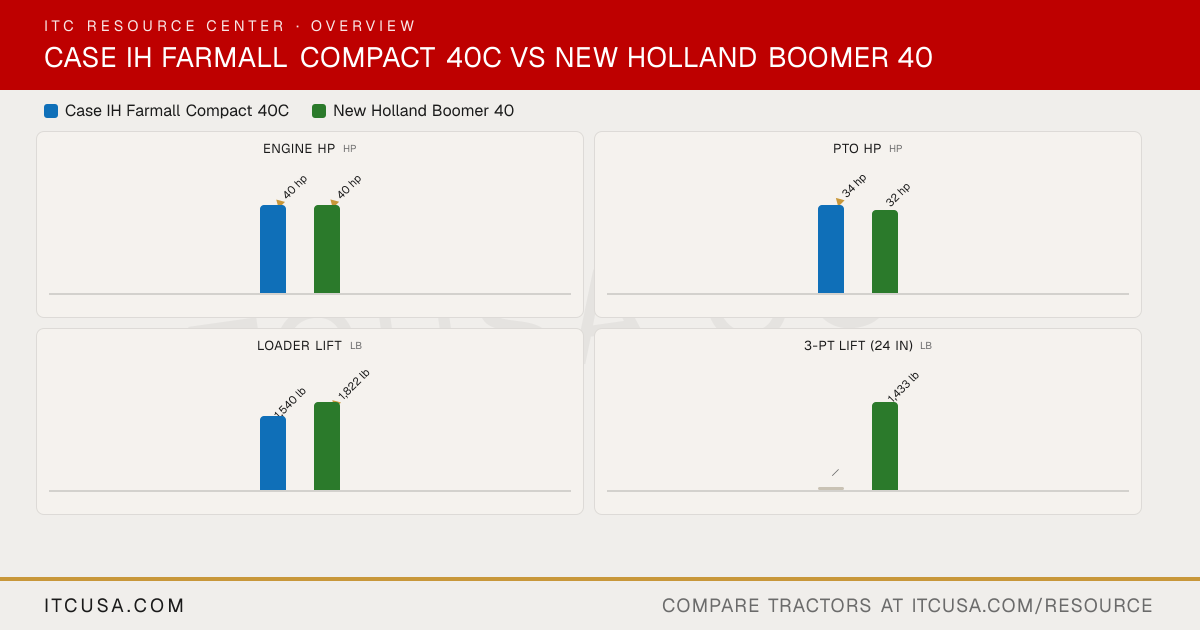

The headline numbers at a glance.

Case IH Farmall Compact 40CNew Holland Boomer 40

Engine HPhp

▲40 hp

PTO HPhp

▲34 hp

32 hp

Weightlb

—

Loader Liftlb

1,540 lb

▲1,822 lb

3-Pt Lift (24 in)lb

—

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 40C	New HollandBoomer 40


PTO Power	34 hp	32 hp
Alternator	Not Published	70 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, naturally aspirated	Not Published
Fuel System	Not Published	CRDI
Displacement	Not Published	0.1 in³
No. of Cylinders	Not Published	3
Rated Engine Speed	Not Published	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Not Published	LS Mtron
Engine Power (Gross)	40 hp	40 hp
Engine Emissions Constraints	Tier 4	T4B Final

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	6-year Boomer Guard Limited Warranty (2-year full + 4-year powertrain)

Pump Type	Not Published	Gear
Steering Flow	Not Published	HST: 5.6 gpm; Gear: 4.2 gpm
Implement Flow	Not Published	8.2 gpm
Total Hydraulic Flow	Not Published	HST: 13.8 gpm; Gear: 12.4 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	HST: 13.8 gpm; Gear: 12.4 gpm
No. of Optional Remote Valves	Not Published	1 or 2
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	Not Published	540 rpm
PTO Type	Not Published	Independent (wet clutch, switch-actuated)
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	Not Published	1808 lb
Mid-PTO Availability	Not Published	Standard
Category, 3-Point Hitch	Not Published	Category I
Hitch Lift Capacity (at 24”)	Not Published	1433 lb

R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	25X8.50-14
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	43X16.00X20; 43X16-20
R4 Industrial - Front	Not Published	25X8.50-14
R1 Agricultural - Rear	Not Published	11.2-24
R1 Agricultural - Front	Not Published	7.0-14

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	Not Published	ROPS: 10.5 gal; CAB: 12.4 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	105 in	104 in
Loader Breakout Force	2,640 lb	2444 lb
Quick Attach Loader System	L350A	250TLA: New Holland Quick Mount; optional skid steer quick attach
Loader Lift Capacity (Full Height)	1,540 lb	1822 lb

Clutch	Not Published	Gear: Dry single disc; HST: Not Applicable
No. of Speeds	Not Published	HST: 3-range; Gear: 12F/12R
Transmission Type	12x12 Mechanical Shuttle or 3-range Hydrostatic	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle
Max Travel Speed (Forward)	Not Published	HST: 14.8 mph; Gear: 14.2 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Brakes	Not Published	Wet disc
Steering	Not Published	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	MFD	Four-wheel drive (4WD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	Not Published	66 in
Overall Width	Not Published	66.4 in
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Published	97.1 in
Height to Top of Cab Model	Not Published	94 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	Not Published	119 in
