John Deere 1023E vs Kioti CS2210

Across 7 measurable specs, the Kioti CS2210 leads 4 categories to 3. Machine pages: John Deere 1023E and Kioti CS2210.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1023E	KiotiCS2210

▶Engine
PTO Power	16.2 hp	16.7 hp
Alternator	40 A	Not Published
Air Cleaner	Dual element	Not Published
Engine Type	Diesel	Liquid-cooled, diesel
Fuel System	Indirect injection	Not Published
Displacement	60.6 in³	69 in³
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	3000 rpm
Cooling System Type	Water pump	Liquid-cooled
Engine Manufacturer	Yanmar	Shibaura (S204.2 gal-F21)
Engine Power (Gross)	21.5 hp @ 200 rpm	21 hp
Engine Emissions Constraints	Tier 4	Not Published
▶Weight
Tractor Weight (Base)	Open station: 1446 lb	—
Weight with ROPS and Loader	1446 lb	Not Published
Weight with Cab and Loader	—	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty (as stated in 2016 review; current terms may vary)	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Single gear	Not Published
Steering Flow	3.5 gpm	Not Published
Implement Flow	3.5 gpm	Not Published
Total Hydraulic Flow	6.3 gpm 23.8 lpm	6.5 gpm
Hydraulic System Type	Open center	Open center
System Operating Pressure	2000 PSI	—
Rear Remote Hydraulic Flow	3.5 gpm (13.3 lpm) implement circuit	Not Published
Overall Hydraulic Pump Flow	6.3 gpm total (2.8 gpm steering + 3.5 gpm implement)	6.5 gpm
No. of Optional Remote Valves	1 additional (optional 3rd SCV kit; standard is 2 mid-SCVs)	Not Published
No. of Standard Remote Valves	—	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	independent	Independent
Lift Control Type	Position control (rockshaft lever)	Position control
Hitch Lift Capacity	1,433 lbs 1,433 lb	700 lbs (at 24 in)
Mid-PTO Availability	2100 rpm	Available (2,200 rpm)
Category, 3-Point Hitch	Limited Category 1	Category 1
Hitch Lift Capacity (at 24”)	758 lb	700 lbs
▶Tire Options
R3 Turf - Rear	26x12-12	26X12.00-12
R3 Turf - Front	18x8.50-10	18X8.5-8
R4 Industrial - Rear	26x12-12	26X12.00-12
R4 Industrial - Front	18x8.5-10	18X8.50-10
R1 Agricultural - Rear	26x12-12	Not Applicable
R1 Agricultural - Front	18x8.5-10	Not Applicable
Tire Size & Options	—	TractorData lists industrial tire sizes (see R4 rows); other tire options not specified.
▶Fluid Capacity
Coolant Capacity	0.98 gal	Not Published
Crankcase Capacity	0.71 gal	Not Published
Fuel Tank Capacity	5.6 gal	6.7 gal
Front Axle Fluid Capacity	0.74 gal	0.5 gal
Transmission / Hydraulic System Capacity	3.3 gal	3.4 gal
▶Loader & Attachments
Loader Lift Height	71.2 in (D120 and H120 loaders)	70.9 in
Quick Attach Loader System	Quik-Park Loader System	Quick-attach (QA) bucket
Loader Lift Capacity (Full Height)	D120: 570 lb; H120: 512 lb (at full height, 71.2 in)	683.4 lb
Loader Breakout Force	—	1,435.2 lb
▶Transmission & Drivetrain
Clutch	Wet disk	None
No. of Speeds	Infinite (hydrostatic, 2-range)	Infinite, 2 range (High/Low)
Transmission Type	Hydrostatic - two range	HST (hydrostatic)
Max Travel Speed (Forward)	9.1 mph	10.3 mph
Max Travel Speed (Reverse)	9.1 mph	7 mph
Differential Lock & Limited Slip Options	Differential lock Yes; Limited slip differential No	Rear differential lock (standard)
▶Chassis, Steering & Controls
Brakes	Wet disc (left-hand pedal)	Wet disk type
Steering	Power	Power steering
Frame Type	Open center frame with two-post foldable ROPS	Not Published
Front Axle Type	MFWD (Mechanical Front-Wheel Drive) 4WD	Not Published
Front Axle Rating	1349 lb	Not Published
Seat Suspension & Adjustability	Spring suspension seat, adjusts fore/aft	Not Published
Drawbar Capacity	—	Not Published
▶Dimensions & Maneuverability
Wheelbase	57.1 in.	55.12 in
Overall Width	47.2 in with R3 tires; 47.3 in with R4 tires	46.65 in
Ground Clearance	7.7 in.	6.38 in
Height to Top of ROPS	78.6 in	87.63 in
Min. Turn Radius without Brakes	2.51 m 8.2 ft	8.33 ft (2.54 m) (with one rear wheel braked)
Overall Length with 3-Point Hitch	87.6 in	99.33 in
Height to Top of Cab Model	—	Not Applicable
Height to Top of ROPS (folded)	—	Not Published
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection

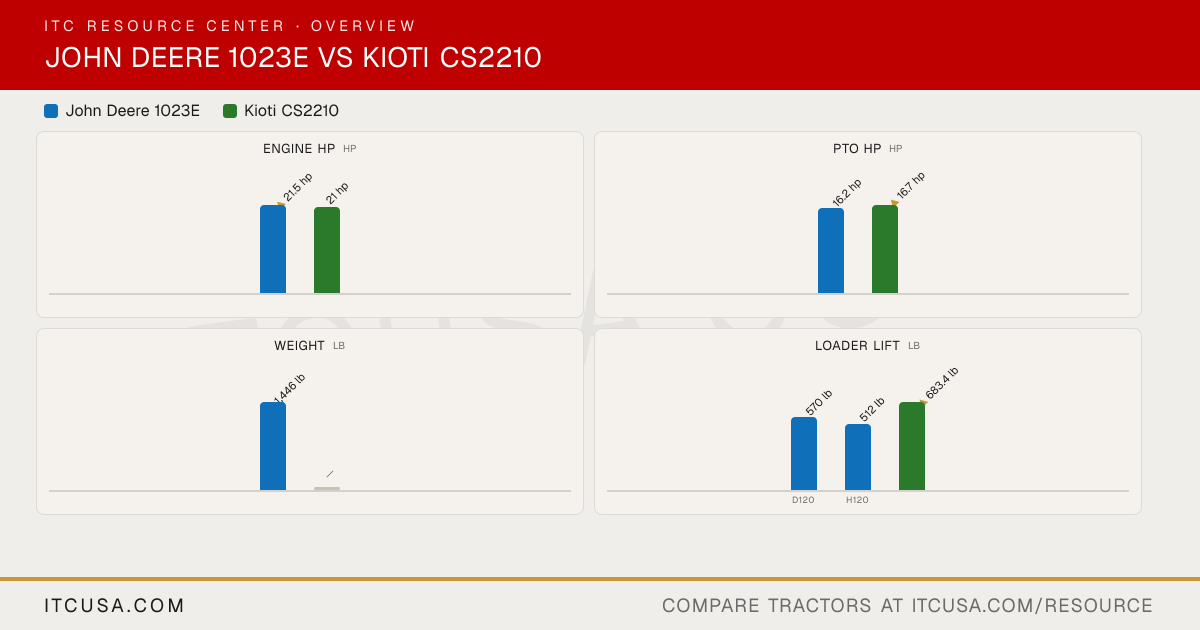

John Deere 1023E vs Kioti CS2210: Quick Answers

Which has more horsepower, the John Deere 1023E or the Kioti CS2210?

The John Deere 1023E leads on engine hp at 21.5 hp hp, compared to 21 hp hp for the Kioti CS2210.

Which has more PTO horsepower, the John Deere 1023E or the Kioti CS2210?

The Kioti CS2210 leads on pto hp at 16.7 hp hp, compared to 16.2 hp hp for the John Deere 1023E.

Which has more loader lift capacity, the John Deere 1023E or the Kioti CS2210?

The Kioti CS2210 leads on loader lift at 683.4 lb lb, compared to 570 lb lb for the John Deere 1023E.

Which has more three-point hitch lift capacity, the John Deere 1023E or the Kioti CS2210?

The John Deere 1023E leads on 3-pt lift (24 in) at 758 lb lb, compared to 700 lb lb for the Kioti CS2210.
