John Deere 1025R vs John Deere 1E 23
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the John Deere 1025R leads 4 categories to 1 (4 tied). Machine pages: John Deere 1025R and John Deere 1E 23.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

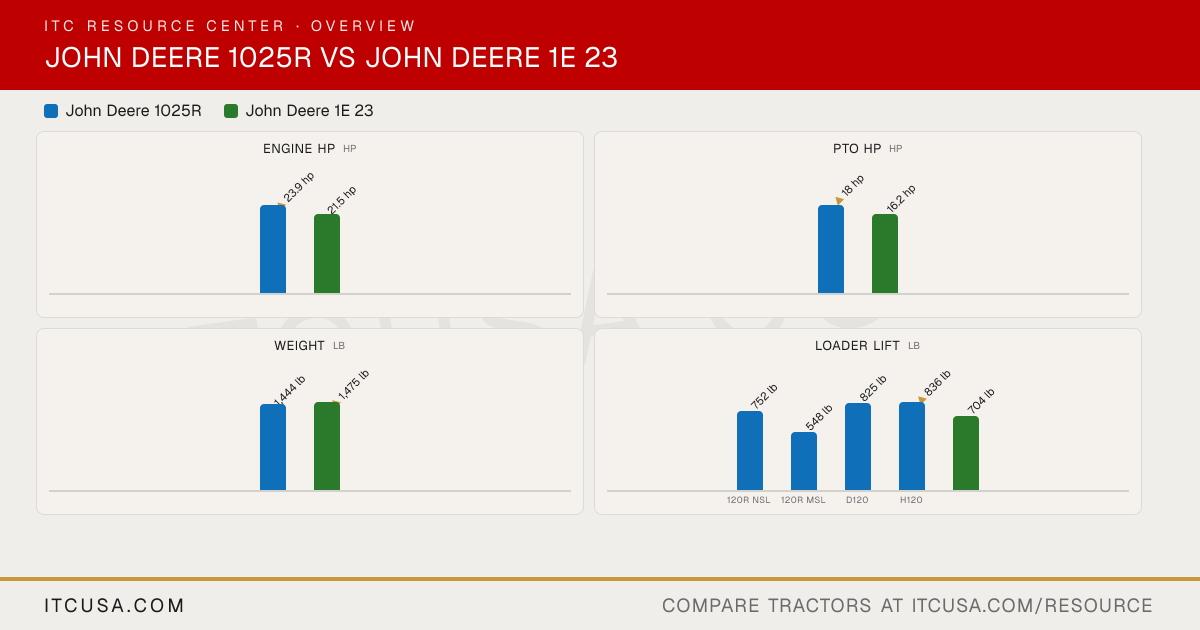

Category Verdict
| Spec | John Deere 1025R | John Deere 1E 23 |
|---|---|---|
| Engine HP (hp) | ▲ 23.9 hp | 21.5 hp |
| PTO HP (hp) | ▲ 18 hp | 16.2 hp |
| Weight (lb) | 1,444 lb | ▲ 1,475 lb |
| Loader Lift (lb) | ▲ 836 lb | 704 lb |
| 3-Pt Lift (24 in) (lb) | 758 lb | 758 lb |
| Lift Height (in) | 72 in | 72 in |
| Breakout Force (lbf) | ▲ 2,008 lbf | 1,823 lbf |
| Hydraulic Flow (gpm) | 7 gpm | 7 gpm |
| Travel Speed (mph) | 9.1 mph | 9.1 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere1025R | John Deere1E 23 |
|---|
| Engine Manufacturer | Yanmar | Yanmar |
|---|---|---|
| Engine Model | 3TNV80F-CJT | 3TNM74F-NCJT |
| Engine Type | 3-cylinder, liquid-cooled diesel | Diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 77.3 in³ | 60.6 in³ |
| Rated Engine Speed | 3200 rpm | 3200 rpm |
| Engine Power (Gross) | 23.9 hp | 21.5 hp |
| PTO Power | 18 hp | 16.2 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry with safety element | Not Published |
| Fuel System | Indirect injection | Not Published |
| Alternator | 40 A, 12 V | Not Published |
John Deere 1025R vs John Deere 1E 23: Quick Answers
- Which has more horsepower, the John Deere 1025R or the John Deere 1E 23?
- The John Deere 1025R leads on engine hp at 23.9 hp hp, compared to 21.5 hp hp for the John Deere 1E 23.
- Which has more PTO horsepower, the John Deere 1025R or the John Deere 1E 23?
- The John Deere 1025R leads on pto hp at 18 hp hp, compared to 16.2 hp hp for the John Deere 1E 23.
- Which is heavier, the John Deere 1025R or the John Deere 1E 23?
- The John Deere 1E 23 leads on weight at 1,475 lb lb, compared to 1,444 lb lb for the John Deere 1025R.
- Which has more loader lift capacity, the John Deere 1025R or the John Deere 1E 23?
- The John Deere 1025R leads on loader lift at 836 lb lb, compared to 704 lb lb for the John Deere 1E 23.
- Which has more three-point hitch lift capacity, the John Deere 1025R or the John Deere 1E 23?
- They are effectively tied: both machines are rated at 758 lb lb for 3-pt lift (24 in).
