Bad Boy Tractors 4025 vs John Deere 1E 23

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 8 categories to 0. Machine pages: Bad Boy Tractors 4025 and John Deere 1E 23.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

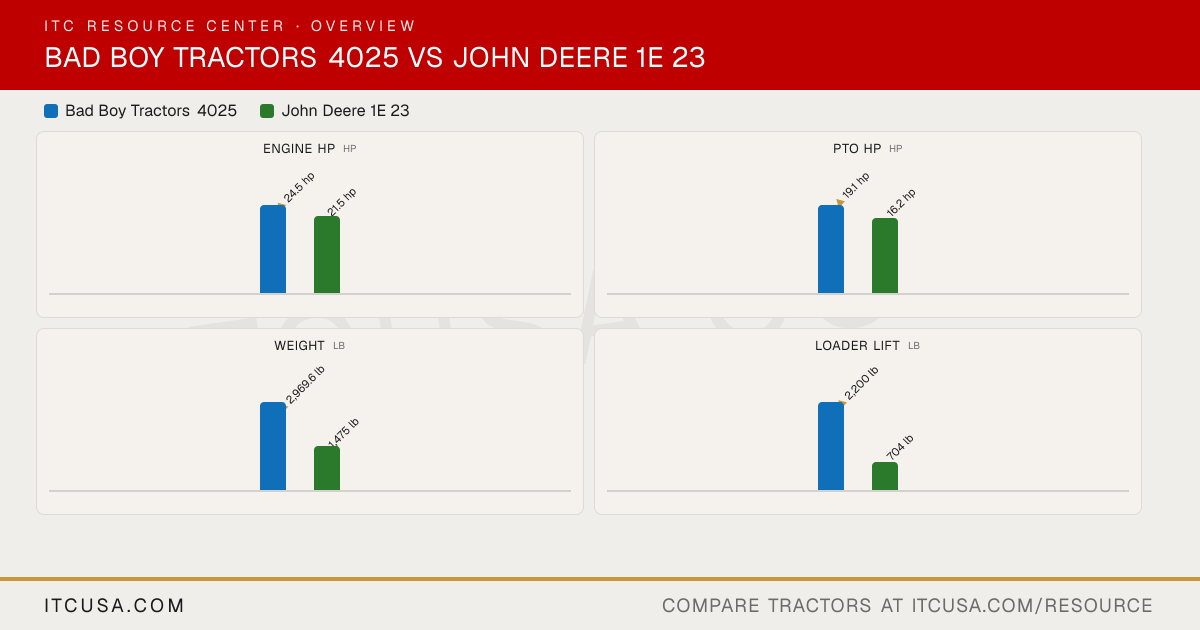

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	John Deere1E 23

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1700N6-BUTR_3	3TNM74F
Engine Type	Vertical, 4-stroke, water-cooled diesel	Diesel
No. of Cylinders	3	3
Displacement	104.7 in³	60.6 in³
Rated Engine Speed	2100 rpm	Not Published
Engine Power (Gross)	24.5 hp	21.5 hp
PTO Power	19.1 hp	16.2 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Not Published
Implement Flow	7.5 gpm	3.5 gpm
Steering Flow	4 gpm	3.5 gpm
Total Hydraulic Flow	11.5 gpm	7 gpm
Overall Hydraulic Pump Flow	11.5 gpm	7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	5.75 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	2100 rpm
Category, 3-Point Hitch	Category 1	Limited Category 1
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	758 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic
No. of Speeds	3 range (A/B/C)	Infinite, forward and reverse
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Two-post folding ROPS
Steering	Fully hydraulic power steering	Power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Four-wheel drive
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	Not Published
Overall Width	56.7 in	47.3 in
Wheelbase	65.7 in	57.1 in
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.85 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,969.6 lb	1475 lb (shipping weight, not a bare ROPS weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	Not Published
R1 Agricultural - Front	8.0-16	Not Published
R1 Agricultural - Rear	12.4-24	Not Published
R3 Turf - Front	Not Published	18x8.50-10
R3 Turf - Rear	Not Published	26x12-12
R4 Industrial - Front	25x8.50-14	18x8.5-10
R4 Industrial - Rear	15-19.5	26x12-12
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	120R Loader
Loader Model	BBL400	120R
Loader Lift Height	104 in	72 in
Loader Lift Capacity (Full Height)	2,200 lb	704 lb (at pivot pin, full height)
Loader Breakout Force	3,660 lbf	1823 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 4025 vs John Deere 1E 23: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the John Deere 1E 23?

The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 21.5 hp hp for the John Deere 1E 23.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the John Deere 1E 23?

The Bad Boy Tractors 4025 leads on pto hp at 19.1 hp hp, compared to 16.2 hp hp for the John Deere 1E 23.

Which is heavier, the Bad Boy Tractors 4025 or the John Deere 1E 23?

The Bad Boy Tractors 4025 leads on weight at 2,969.6 lb lb, compared to 1,475 lb lb for the John Deere 1E 23.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the John Deere 1E 23?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 704 lb lb for the John Deere 1E 23.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the John Deere 1E 23?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 758 lb lb for the John Deere 1E 23.
