John Deere 1025R vs Kioti CS2510

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the John Deere 1025R, 4 to the Kioti CS2510. Machine pages: John Deere 1025R and Kioti CS2510.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

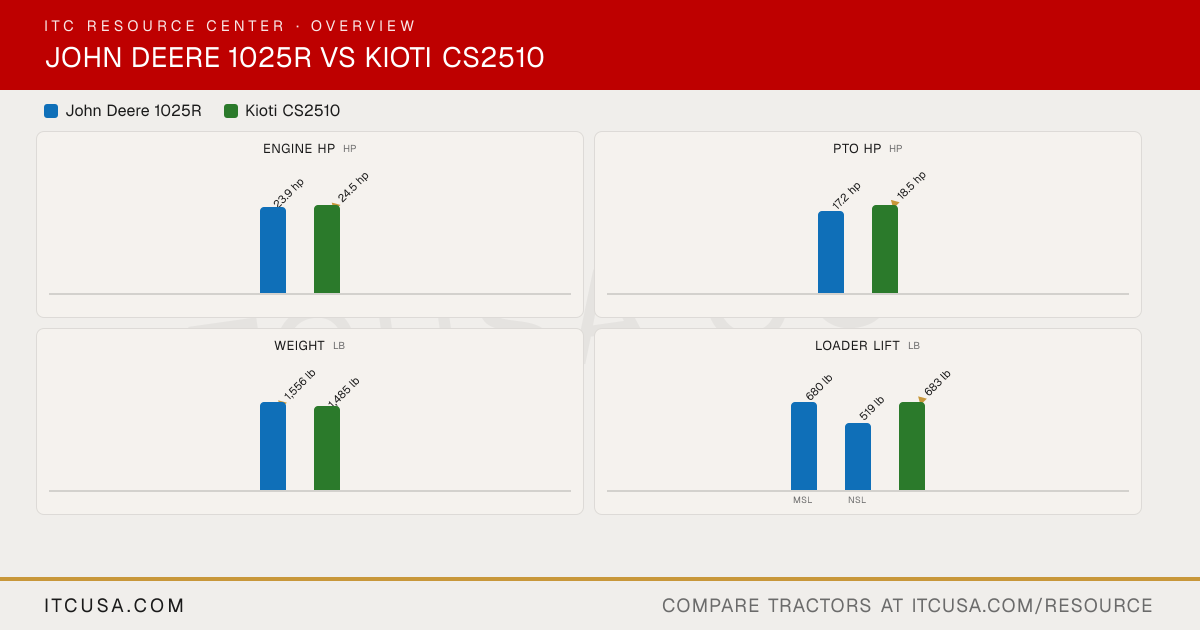

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1025R	KiotiCS2510

▶Engine
Engine Manufacturer	Yanmar	KIOTI
Engine Model	3TNV80F-CJT	3C100LFH-U2
Engine Type	3-cylinder, liquid-cooled diesel	In-Line Vertical, Water-Cooled Diesel (3-cylinder)
No. of Cylinders	3	3
Displacement	77.3 in³	61.5 in³
Rated Engine Speed	3200 rpm	Not Published
Engine Power (Gross)	23.9 hp	24.5 hp
PTO Power	17.2 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dry with safety element	Dry type
Fuel System	Indirect injection	Not Published
Alternator	40 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear	Gear
Implement Flow	3.5 gpm	Not Published
Steering Flow	3.5 gpm	Not Published
Total Hydraulic Flow	7 gpm	6.5 gpm
Overall Hydraulic Pump Flow	7 gpm	6.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	3.5 gpm implement circuit; total 7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	Not Published	6.7 gal
Coolant Capacity	3.9 qt	Not Published
Crankcase Capacity	2.9 qt	Not Published
Transmission / Hydraulic System Capacity	3.25 gal	3.4 gal
Front Axle Fluid Capacity	3.0 qt	0.5 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2100 rpm	Not Published
Category, 3-Point Hitch	Limited Category I	Category I
Hitch Lift Capacity	1,177 lb	1,580 lb
Hitch Lift Capacity (at 24”)	758 lb	700 lb
Lift Control Type	Position control	Position
▶Transmission & Drivetrain
Transmission Type	Hydrostatic - 2 range	HST (hydrostatic)
No. of Speeds	Infinite (hydrostatic), 2 ranges forward and reverse	Infinite, 2 range (High/Low)
Max Travel Speed (Forward)	9.1 mph	10.3 mph
Max Travel Speed (Reverse)	9.1 mph	7.0 mph
Clutch	wet disc	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Standard rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Semi-flat platform; two-post folding ROPS; four-wheel drive	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disk, left-hand pedal	Wet Multi Disc
Seat Suspension & Adjustability	Deluxe suspension seat with armrests and tilt steering wheel	Not Published
Front Axle Type	4WD (MFWD), on-the-go engagement	Mechanical 4WD
Front Axle Rating	1,349 lb	Not Published
Drawbar Capacity	2,165 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	108 in	99.3 in
Overall Width	47.22 in (R3 tires); 47.32 in (R4 tires)	46.7 in
Wheelbase	57.1 in	55.1 in
Ground Clearance	Not Published	6.4 in
Min. Turn Radius without Brakes	7.4 ft (no brakes, no MFWD)	Not Published
Height to Top of ROPS	90 in (ROPS extended, R4 tires)	87.6 in
Height to Top of ROPS (folded)	73 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1,556 lb	1,485 lb (with AG. tires)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard R4, optional R3	Agricultural, Turf and Industrial: 18x8.5-10 front, 26x12.00-12 rear
R1 Agricultural - Front	Not Published	18x8.5-10
R1 Agricultural - Rear	Not Published	26x12.00-12
R3 Turf - Front	18x8.5-10	18x8.5-10
R3 Turf - Rear	26x12-12	26x12.00-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12-12	26x12.00-12
▶Loader & Attachments
Quick Attach Loader System	Tool-free attach and park (MSL optional on 120R)	Quick attach (QA) bucket, 48 in
Loader Model	120R (MSL or NSL); 120E (NSL only)	SL2410
Loader Lift Height	120R: 72 in; 120E: 71.2 in	SL2410: 70.9 in
Loader Lift Capacity (Full Height)	120R (MSL): 680 lb; 120E (NSL): 519 lb (at 19.7 in ahead of pivot)	SL2410: 683 lb
Loader Breakout Force	Not Published	SL2410: 1,435 lb
▶Warranty
Warranty Length & Coverage	Powertrain 6 years, standard at no cost, covers residential and commercial use	Non-commercial: basic 24 months, powertrain 72 months on qualifying tractors, unlimited hours, parts and labor
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a John Deere dealer near you→Find a KIOTI dealer near you→

John Deere 1025R vs Kioti CS2510: Quick Answers

Which has more horsepower, the John Deere 1025R or the Kioti CS2510?

The Kioti CS2510 leads on engine hp at 24.5 hp hp, compared to 23.9 hp hp for the John Deere 1025R.

Which has more PTO horsepower, the John Deere 1025R or the Kioti CS2510?

The Kioti CS2510 leads on pto hp at 18.5 hp hp, compared to 17.2 hp hp for the John Deere 1025R.

Which is heavier, the John Deere 1025R or the Kioti CS2510?

The John Deere 1025R leads on weight at 1,556 lb lb, compared to 1,485 lb lb for the Kioti CS2510.

Which has more loader lift capacity, the John Deere 1025R or the Kioti CS2510?

The Kioti CS2510 leads on loader lift at 683 lb lb, compared to 680 lb lb for the John Deere 1025R.

Which has more three-point hitch lift capacity, the John Deere 1025R or the Kioti CS2510?

The John Deere 1025R leads on 3-pt lift (24 in) at 758 lb lb, compared to 700 lb lb for the Kioti CS2510.
