John Deere 2025R vs TYM T254

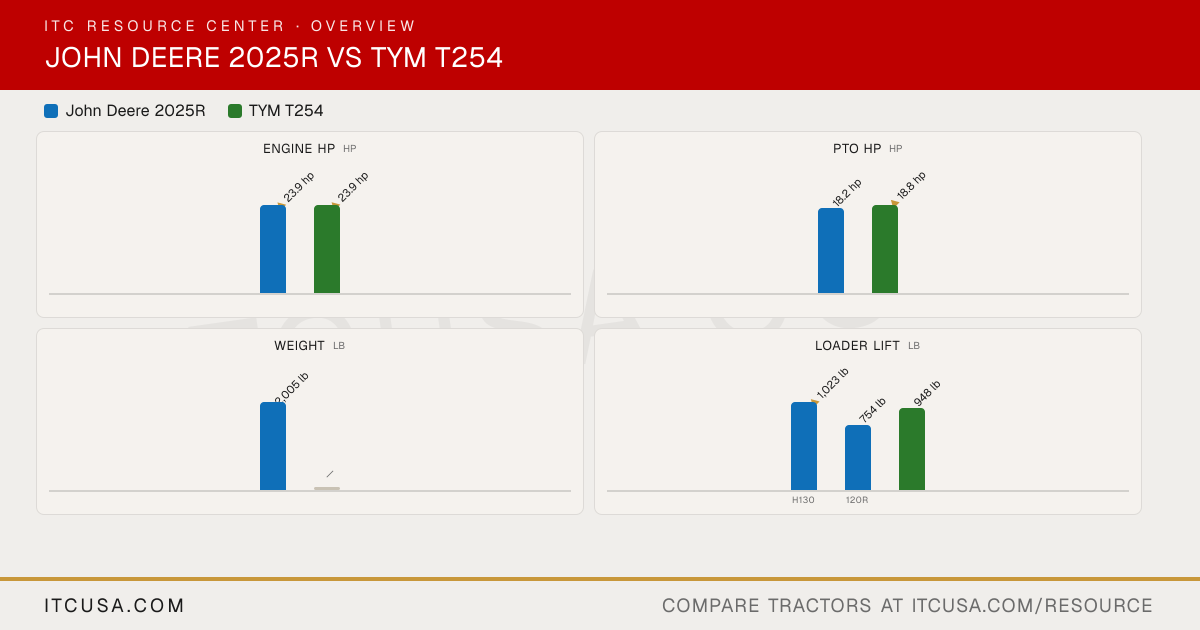

Across 7 measurable specs, the TYM T254 leads 4 categories to 2 (1 tied). Machine pages: John Deere 2025R and TYM T254.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere2025R	TYMT254

▶Engine
Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F-NCJT	3TNV80F
Engine Type	Diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77 in³	77.3 in³
Rated Engine Speed	3200 rpm	3000 rpm
Engine Power (Gross)	23.9 hp	23.9 hp
PTO Power	17.2 hp	18.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Water-cooled
Air Cleaner	Dual element	Single dry
Fuel System	Indirect injection	IDI
Alternator	40 A	40 A, 12 V
▶Hydraulics
Pump Type	Not Published	Single gear pump
Implement Flow	3.5 gpm	4.2 gpm
Steering Flow	3.5 gpm	2.8 gpm
Total Hydraulic Flow	7 gpm	6.9 gpm
Overall Hydraulic Pump Flow	7 gpm	6.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	3.5 gpm implement circuit; 7 gpm total capacity	Not Published
No. of Standard Remote Valves	2	None
No. of Optional Remote Valves	Optional field kits: rear SCV kit (one set of hydraulic couplers at the rear); third mid-mounted SCV (additional set of mid-mount couplers)	1
▶Fluid Capacity
Fuel Tank Capacity	6.1 gal	5.8 gal
Coolant Capacity	0.81 gal	3.8 qt
Crankcase Capacity	0.84 gal	2.9 qt
Transmission / Hydraulic System Capacity	3.5 gal	3.7 gal
Front Axle Fluid Capacity	0.89 gal	3.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard; mid PTO 2100 rpm at 540 PTO marker	Available
Category, 3-Point Hitch	Limited Category 1	Category I (Narrow)
Hitch Lift Capacity	1,433 lb	1,214 lb
Hitch Lift Capacity (at 24”)	915 lb	1,101 lb
Lift Control Type	Position Control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic	HST
No. of Speeds	Two range (Hi and Lo)	Infinite 2-Range
Max Travel Speed (Forward)	Not Published	11.0 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	wet disc	Not Published
Differential Lock & Limited Slip Options	Differential lock: Yes; Limited slip differential: No	Differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power	Hydrostatic
Brakes	Wet Disc	Wet disc
Seat Suspension & Adjustability	Fore/aft adjustable; seat flips forward for weather protection; mechanical suspension not listed	Ergonomic seating
Front Axle Type	Four-wheel drive	4WD center-pivot, reverse Eliot type
Front Axle Rating	1,349 lb	Not Published
Drawbar Capacity	562 lb	Not Published
▶Dimensions & Maneuverability
Overall Width	37 in (min); 51 in (max)	45.8 in
Wheelbase	63 in	57.5 in
Ground Clearance	13 in	9.4 in
Min. Turn Radius without Brakes	Not Published	100 in
Height to Top of ROPS	89 in	91.3 in
Height to Top of ROPS (folded)	66.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	109.2 in	100.5 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	1,872 lb (with all fluids)	1,638 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Front: R3 Turf 23x8.50-12; R3 Radial 220/55-R12; R4 Industrial 23x8.50-12	R1 Agricultural, R3 Turf, R4 Industrial, R4 Lg Industrial
R1 Agricultural - Front	Not Published	6.0-12
R1 Agricultural - Rear	Not Published	9.5-16
R3 Turf - Front	23x8.50-12 or R3 Radial: 220/55-R12	Turf Master 20x8.00-10 NHS TL 4PR
R3 Turf - Rear	12-16.5 or R3 Radial: 280/70 R16	Multi-Trac CS 29x12.50-15 NHS TL 4PR
R4 Industrial - Front	23x8.50-12	Trac Chief 20x8.00-10 NHS TL 4PR
R4 Industrial - Rear	12-16.5	Trac Chief 27x12.5-15 NHS TL 4PR
▶Loader & Attachments
Quick Attach Loader System	H130 Loader (Quik-Park); 120R Loader (NSL standard, MSL optional, Quik-Park)	TX25P: Quick attach mechanism
Loader Model	120R	TX25P
Loader Lift Height	120R: 72 in (at pivot pin)	TX25P: 75 in
Loader Lift Capacity (Full Height)	120R (NSL): 803 lb (at pivot pin, full height)	TX25P: 948 lb (at pivot pin)
Loader Breakout Force	Not Published	TX25P: 1,680 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection RK24/T254 /BRANSON 2505/EMAX 25 Skid Plate $89.99 TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $249.99

Find a John Deere dealer near you→Find a TYM dealer near you→

John Deere 2025R vs TYM T254: Quick Answers

Which has more horsepower, the John Deere 2025R or the TYM T254?

They are effectively tied: both machines are rated at 23.9 hp hp for engine hp.

Which has more PTO horsepower, the John Deere 2025R or the TYM T254?

The TYM T254 leads on pto hp at 18.8 hp hp, compared to 17.2 hp hp for the John Deere 2025R.

Which is heavier, the John Deere 2025R or the TYM T254?

The John Deere 2025R leads on weight at 1,872 lb lb, compared to 1,638 lb lb for the TYM T254.

Which has more loader lift capacity, the John Deere 2025R or the TYM T254?

The TYM T254 leads on loader lift at 948 lb lb, compared to 803 lb lb for the John Deere 2025R.

Which has more three-point hitch lift capacity, the John Deere 2025R or the TYM T254?

The TYM T254 leads on 3-pt lift (24 in) at 1,101 lb lb, compared to 915 lb lb for the John Deere 2025R.
