Which has more horsepower, the John Deere 3032E or the John Deere 3033R?

The John Deere 3033R leads on engine hp at 31.8 hp hp, compared to 31.1 hp hp for the John Deere 3032E.

Which has more PTO horsepower, the John Deere 3032E or the John Deere 3033R?

The John Deere 3032E leads on pto hp at 25 hp hp, compared to 24.3 hp hp for the John Deere 3033R.

Which has more loader lift capacity, the John Deere 3032E or the John Deere 3033R?

The John Deere 3033R leads on loader lift at 1,360 lb lb, compared to 1,186 lb lb for the John Deere 3032E.

Which has more three-point hitch lift capacity, the John Deere 3032E or the John Deere 3033R?

The John Deere 3033R leads on 3-pt lift (24 in) at 2,194 lb lb, compared to 1,356 lb lb for the John Deere 3032E.

John Deere 3032E vs John Deere 3033R

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the John Deere 3033R leads 6 categories to 1. Machine pages: John Deere 3032E and John Deere 3033R.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3032E	John Deere 3033R
Engine HP (hp)	31.1 hp	▲ 31.8 hp
PTO HP (hp)	▲ 25 hp	24.3 hp
Loader Lift (lb)	1,186 lb	▲ 1,360 lb
3-Pt Lift (24 in) (lb)	1,356 lb	▲ 2,194 lb
Lift Height (in)	84 in	▲ 90 in
Breakout Force (lbf)	1,704 lbf	▲ 2,855 lbf
Hydraulic Flow (gpm)	10.3 gpm	▲ 14.4 gpm
Travel Speed (mph)	—	18.5 mph

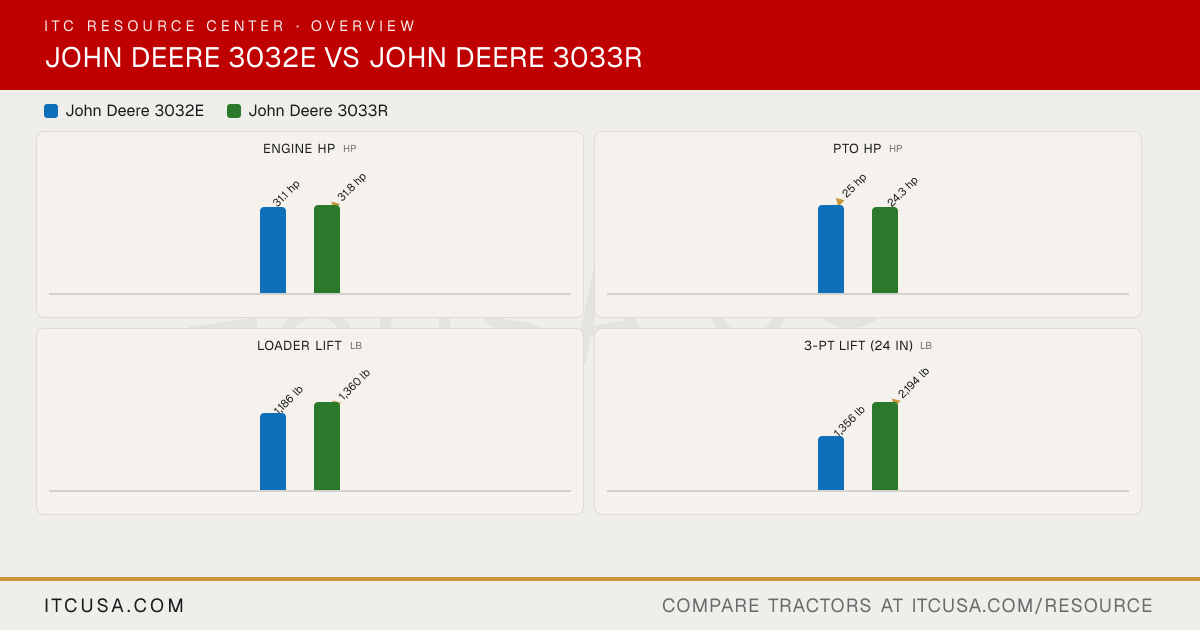

The headline numbers at a glance.

John Deere 3032EJohn Deere 3033R

Engine HPhp

31.1 hp

▲31.8 hp

PTO HPhp

▲25 hp

24.3 hp

Weightlb

—

Loader Liftlb

1,186 lb

▲1,360 lb

3-Pt Lift (24 in)lb

1,356 lb

▲2,194 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3032E	John Deere3033R


PTO Power	25 hp	24.3 hp
Alternator	55 A, 12 V	75 A, 12 V
Air Cleaner	Dry, dual element	Dry type with safety element (dual element)
Engine Type	Diesel, naturally aspirated	Diesel, turbocharged
Fuel System	High pressure common rail direct injection	High pressure common rail direct injection (HPCR)
Displacement	100.2 in³	97.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2600 rpm
Cooling System Type	Water pump	Liquid (water pump)
Engine Manufacturer	Yanmar	Yanmar
Engine Power (Gross)	31.1 hp @ 500 rpm	31.8 hp @ 600 rpm
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Dual gear	Implement/steering pump: Dual gear; hydrostatic pump: PV axial piston
Steering Flow	4.4 gpm	5.9 gpm
Implement Flow	5.9 gpm	8.6 gpm
Total Hydraulic Flow	10.3 gpm	14.4 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	10.3 gpm	14.4 gpm
No. of Optional Remote Valves	Up to 2 (optional)	Up to 6 rear remotes
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	Not Published	2,530 lb at hitch ball
Mid-PTO Availability	Not Applicable	eHydro: Optional (2100 rpm); PowrReverser: Not applicable
Category, 3-Point Hitch	Category 1	Category 1 (limited Category 1 in Operator Manual)
Hitch Lift Capacity (at 24”)	1,356 lb @ 24 in behind center link	2,194 lb at 24 in behind link arms

R3 Turf - Rear	41X14-20	41X14-20
R3 Turf - Front	27X8.50-15	27X8.50-15
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Bar, R3 Turf, R4 Industrial
R4 Industrial - Rear	15.00-19.5 or 43X16-20	15-19.5 or 43X16-20
R4 Industrial - Front	25X8.50-14 or 27X8.50-15	25X8.5-14 or 27X8.5-15
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7-14	7-14

Coolant Capacity	1.3 gal	Open station (OOS): 1.4 gal; Cab: 1.9 gal
Crankcase Capacity	4.7 qt (with filter)	1.1 gal (with filter)
Fuel Tank Capacity	7.5 gal	Open station (OOS): 13.5 gal; Cab: 11.8 gal
Front Axle Fluid Capacity	1 gal	1.3 gal
Transmission / Hydraulic System Capacity	5.5 gal	6.8 gal

Loader Lift Height	84.0 in	90 in
Loader Breakout Force	1,704 lb	2,855 lb at pivot; 2,032 lb @ 19.7 in
Quick Attach Loader System	Quick-change attachment carrier	Quik-Park mounting system
Loader Lift Capacity (Full Height)	1,186 lb	1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot

Clutch	Not Applicable	PowrReverser: Wet disk; eHydro: Not Applicable
No. of Speeds	Infinite (2-range HST)	PowrReverser: 12F/12R; eHydro: infinite in 3 ranges
Transmission Type	Hydrostatic (2-range)	PowrReverser: 12F/12R; eHydro: three-range, infinitely variable
Max Travel Speed (Forward)	Not Published	18.50 mph
Max Travel Speed (Reverse)	Not Published	18.50 mph
Differential Lock & Limited Slip Options	Not Published	Differential lock: Yes

Brakes	Wet disc	Multi-plate wet disk
Steering	Power steering	Hydrostatic power steering
Frame Type	Not Published	Foldable ROPS; cab or open station configurations available
Front Axle Type	4WD (MFWD)	Mechanical front wheel drive (MFWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	3,196 lb (continuous)
Seat Suspension & Adjustability	Not Published	Standard seat: height/level/fore-aft adjustments; Deluxe seat: weight (air pressure) & fore-aft adjustments

Wheelbase	62.8 in	68.0 in
Overall Width	Not Published	69.1 in
Ground Clearance	9.4 in	12.2 in
Height to Top of ROPS	Not Published	93.3 in
Height to Top of Cab Model	Not Applicable	85.0 in
Height to Top of ROPS (folded)	Not Published	72.0 in
Min. Turn Radius without Brakes	9.4 ft (2.9 m)	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	Not Published	120.2 in

John Deere 3032E vs John Deere 3033R: Quick Answers

Which has more horsepower, the John Deere 3032E or the John Deere 3033R?: The John Deere 3033R leads on engine hp at 31.8 hp hp, compared to 31.1 hp hp for the John Deere 3032E.
Which has more PTO horsepower, the John Deere 3032E or the John Deere 3033R?: The John Deere 3032E leads on pto hp at 25 hp hp, compared to 24.3 hp hp for the John Deere 3033R.
Which has more loader lift capacity, the John Deere 3032E or the John Deere 3033R?: The John Deere 3033R leads on loader lift at 1,360 lb lb, compared to 1,186 lb lb for the John Deere 3032E.
Which has more three-point hitch lift capacity, the John Deere 3032E or the John Deere 3033R?: The John Deere 3033R leads on 3-pt lift (24 in) at 2,194 lb lb, compared to 1,356 lb lb for the John Deere 3032E.
