Bad Boy Tractors 4035 Cab vs John Deere 3032E

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 8 categories to 0. Machine pages: Bad Boy Tractors 4035 Cab and John Deere 3032E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	John Deere3032E

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1700N4-BUTC_4	3TNV88C-NJT2
Engine Type	Vertical, water-cooled 4-cycle diesel	Diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	104.5 in³	100.2 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	35 hp	30.7 hp
PTO Power	29.5 hp	25 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Water pump
Air Cleaner	Not Published	Dry type with safety element
Fuel System	Not Published	High pressure common rail direct injection
Alternator	50 A, 12 V	55 A, 12 V
▶Hydraulics
Pump Type	Not Published	Implement/steering pump: tandem gear pump; hydrostatic pump: PV axial-piston pump
Implement Flow	8.2 gpm	5.3 gpm
Steering Flow	4.4 gpm	4.0 gpm
Total Hydraulic Flow	12.6 gpm	9.3 gpm
Overall Hydraulic Pump Flow	12.6 gpm	9.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.5 gal
Coolant Capacity	1.32 gal	5.2 qt
Crankcase Capacity	1.14 gal	4.7 qt
Transmission / Hydraulic System Capacity	9.77 gal	5.5 gal
Front Axle Fluid Capacity	1.69 gal	4 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	1,356 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Hydrostatic (2-range)
No. of Speeds	3 range (HST)	Infinite (2-range HST)
Max Travel Speed (Forward)	18.21 mph	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	4WD (MFWD)
Front Axle Rating	Not Published	1,760 lb
Drawbar Capacity	Not Published	880 lb (maximum vertical load)
▶Dimensions & Maneuverability
Overall Width	55.6 in	56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)
Wheelbase	65.7 in	62.8 in
Ground Clearance	13.19 in	12.7 in (R4 tires)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	95.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
Overall Length	134.88 in	115.9 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,551 lb	2,222 lb
Weight with ROPS and Loader	Not Published	2,972 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	Not Published	27X8.50-15
R3 Turf - Rear	Not Published	41X14-20
R4 Industrial - Front	28x8.50-15	25X8.50-14 or 27X8.50-15
R4 Industrial - Rear	43x16.00-20	15-19.5 or 43x16-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Quick-change attachment carrier
Loader Model	BBL400	300E
Loader Lift Height	104 in	84.0 in (at pivot pin)
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1,186 lb (at pivot pin)
Loader Breakout Force	3,660 lb	1,704 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Basic 24 months or 2,000 hours; powertrain 72 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

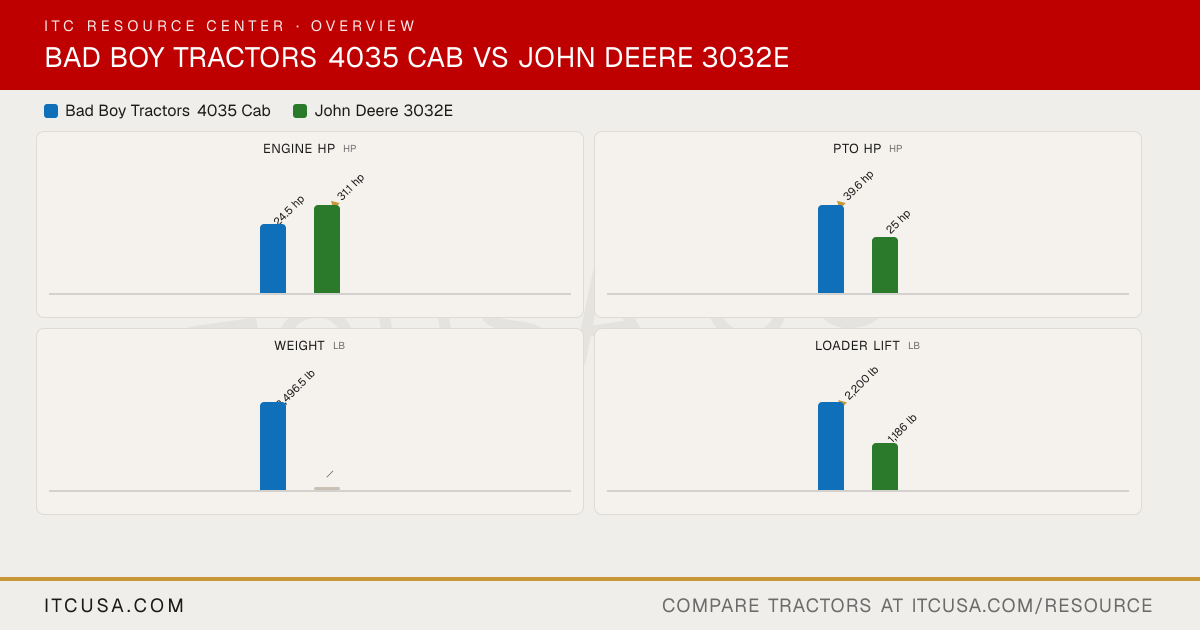

Bad Boy Tractors 4035 Cab vs John Deere 3032E: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the John Deere 3032E?

The Bad Boy Tractors 4035 Cab leads on engine hp at 35 hp hp, compared to 30.7 hp hp for the John Deere 3032E.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the John Deere 3032E?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 25 hp hp for the John Deere 3032E.

Which is heavier, the Bad Boy Tractors 4035 Cab or the John Deere 3032E?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 2,222 lb lb for the John Deere 3032E.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the John Deere 3032E?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,186 lb lb for the John Deere 3032E.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the John Deere 3032E?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,356 lb lb for the John Deere 3032E.
