Which has more horsepower, the John Deere 3032E or the John Deere 5075E?

The John Deere 5075E leads on engine hp at 74.8 hp hp, compared to 31.1 hp hp for the John Deere 3032E.

Which has more PTO horsepower, the John Deere 3032E or the John Deere 5075E?

The John Deere 5075E leads on pto hp at 57.6 hp hp, compared to 25 hp hp for the John Deere 3032E.

Which has more loader lift capacity, the John Deere 3032E or the John Deere 5075E?

The John Deere 5075E leads on loader lift at 3,225 lb lb, compared to 1,186 lb lb for the John Deere 3032E.

Which has more three-point hitch lift capacity, the John Deere 3032E or the John Deere 5075E?

The John Deere 5075E leads on 3-pt lift (24 in) at 3,197 lb lb, compared to 1,356 lb lb for the John Deere 3032E.

John Deere 3032E vs John Deere 5075E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the John Deere 5075E leads 7 categories to 0. Machine pages: John Deere 3032E and John Deere 5075E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3032E	John Deere 5075E
Engine HP (hp)	31.1 hp	▲ 74.8 hp
PTO HP (hp)	25 hp	▲ 57.6 hp
Loader Lift (lb)	1,186 lb	▲ 3,225 lb
3-Pt Lift (24 in) (lb)	1,356 lb	▲ 3,197 lb
Lift Height (in)	84 in	▲ 124 in
Breakout Force (lbf)	1,704 lbf	▲ 4,354 lbf
Hydraulic Flow (gpm)	10.3 gpm	▲ 18.2 gpm
Travel Speed (mph)	—	15.5 mph

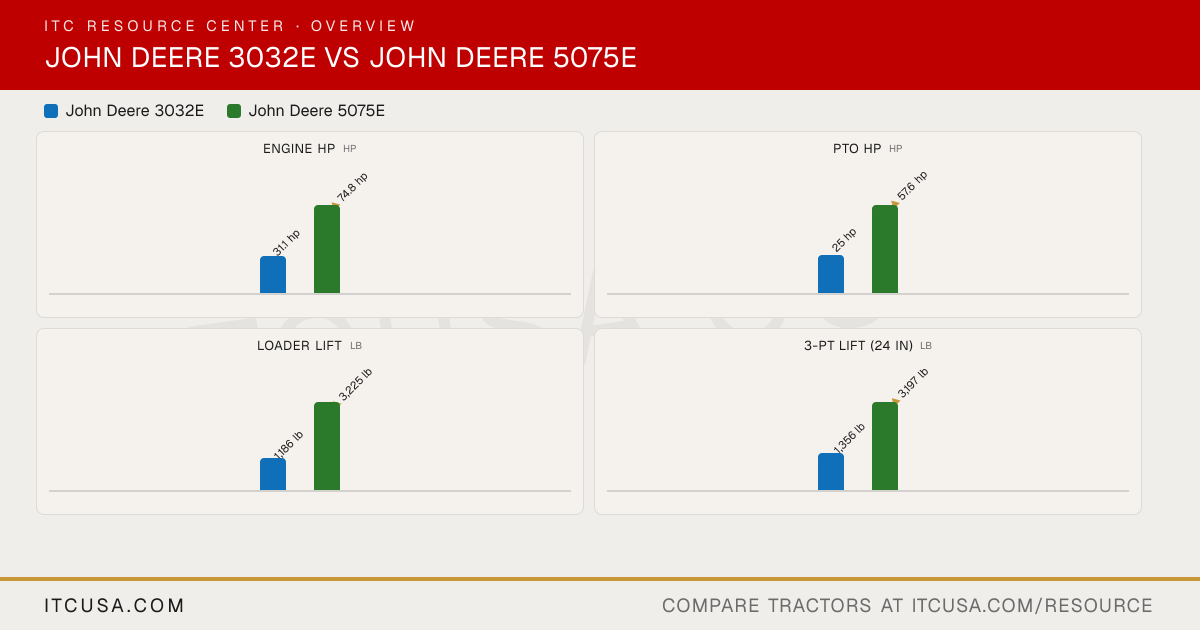

The headline numbers at a glance.

John Deere 3032EJohn Deere 5075E

Engine HPhp

31.1 hp

▲74.8 hp

PTO HPhp

25 hp

▲57.6 hp

Weightlb

—

Loader Liftlb

1,186 lb

▲3,225 lb

3-Pt Lift (24 in)lb

1,356 lb

▲3,197 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3032E	John Deere5075E


PTO Power	25 hp	57.6 hp
Alternator	55 A, 12 V	60 A, 12 V
Air Cleaner	Dry, dual element	Dry type air cleaner with safety element
Engine Type	Diesel, naturally aspirated	Diesel, turbocharged and aftercooled
Fuel System	High pressure common rail direct injection	Electronically controlled, high-pressure common rail
Displacement	100.2 in³	179 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2100 rpm
Cooling System Type	Water pump	Liquid-cooled
Engine Manufacturer	Yanmar	John Deere PowerTech 3029 EWR
Engine Power (Gross)	31.1 hp @ 500 rpm	74.8 hp @ 100 rpm
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Dual gear	Tandem gear pump (implement + steering)
Steering Flow	4.4 gpm	6.8 gpm
Implement Flow	5.9 gpm	11.4 gpm
Total Hydraulic Flow	10.3 gpm	18.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	11.4 gpm at a single rear SCV
Overall Hydraulic Pump Flow	10.3 gpm	18.2 gpm
No. of Optional Remote Valves	Up to 2 (optional)	2
No. of Standard Remote Valves	Not Published	1

PTO Rear	540 rpm	540 @ 2083 engine rpm; 540E @ 1588 engine rpm
PTO Type	Independent	Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser)
Lift Control Type	Position control	Position and draft control; adjustable rate of drop
Hitch Lift Capacity	Not Published	3,968 lb @ hitch points
Mid-PTO Availability	Not Applicable	Not Applicable
Category, 3-Point Hitch	Category 1	Category II; convertible to Category I
Hitch Lift Capacity (at 24”)	1,356 lb @ 24 in behind center link	3,197 lb @ 24 in behind hitch balls

R3 Turf - Rear	41X14-20	41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium)
R3 Turf - Front	27X8.50-15	33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium)
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Ag / R3 Turf / R4 Industrial / Snow
R4 Industrial - Rear	15.00-19.5 or 43X16-20	4.6 gal-24 8PR R4; 5.2 gal-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4
R4 Industrial - Front	25X8.50-14 or 27X8.50-15	27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4
R1 Agricultural - Rear	11.2-24	14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W
R1 Agricultural - Front	7-14	9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W

Coolant Capacity	1.3 gal	Open operator station: 2.85 gal; Cab: 3.08 gal
Crankcase Capacity	4.7 qt (with filter)	9.0 qt (with filter)
Fuel Tank Capacity	7.5 gal	Open operator station: 15.6 ± 0.44 gal (71 ± 0.5 gal); Cab: 17.59 ± 0.44 gal (80 ± 0.5 gal)
Front Axle Fluid Capacity	1 gal	DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side
Transmission / Hydraulic System Capacity	5.5 gal	8.36 gal (9x3); 9.46 gal (12x12)

Loader Lift Height	84.0 in	124 in
Loader Breakout Force	1,704 lb	4,354 lb (measured at pivot)
Quick Attach Loader System	Quick-change attachment carrier	Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes)
Loader Lift Capacity (Full Height)	1,186 lb	3,225 lb (measured at pivot)

Clutch	Not Applicable	Dual clutch, 11 in (PowrReverser)
No. of Speeds	Infinite (2-range HST)	9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser)
Transmission Type	Hydrostatic (2-range)	SyncShuttle 9F/3R (standard); PowrReverser 12F/12R (optional)
Max Travel Speed (Forward)	Not Published	15.5 mph (SyncShuttle); 20.5 mph (PowrReverser)
Max Travel Speed (Reverse)	Not Published	14.2 mph (SyncShuttle); 22.3 mph (PowrReverser)
Differential Lock & Limited Slip Options	Not Published	Mechanical differential lock (pedal)

Brakes	Wet disc	Hydraulically actuated wet disk brakes (self-equalizing and self-adjusting)
Steering	Power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	4WD (MFWD)	2WD (standard) or MFWD (optional)
Drawbar Capacity	Not Published	1,675 lb (fully extended); 2,470 lb (short position)
Front Axle Rating	Not Published	Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire)
Seat Suspension & Adjustability	Not Published	Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment

Wheelbase	62.8 in	80.7 in
Overall Width	Not Published	Not Published
Ground Clearance	9.4 in	Not Published
Height to Top of ROPS	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	9.4 ft (2.9 m)	137.8 in (2WD); 183.1 in (4WD)
Overall Length with 3-Point Hitch	Not Published	143.3 in

John Deere 3032E vs John Deere 5075E: Quick Answers

Which has more horsepower, the John Deere 3032E or the John Deere 5075E?: The John Deere 5075E leads on engine hp at 74.8 hp hp, compared to 31.1 hp hp for the John Deere 3032E.
Which has more PTO horsepower, the John Deere 3032E or the John Deere 5075E?: The John Deere 5075E leads on pto hp at 57.6 hp hp, compared to 25 hp hp for the John Deere 3032E.
Which has more loader lift capacity, the John Deere 3032E or the John Deere 5075E?: The John Deere 5075E leads on loader lift at 3,225 lb lb, compared to 1,186 lb lb for the John Deere 3032E.
Which has more three-point hitch lift capacity, the John Deere 3032E or the John Deere 5075E?: The John Deere 5075E leads on 3-pt lift (24 in) at 3,197 lb lb, compared to 1,356 lb lb for the John Deere 3032E.
