Which has more horsepower, the John Deere 3033R or the John Deere 3035D?

The John Deere 3035D leads on engine hp at 34.2 hp hp, compared to 31.8 hp hp for the John Deere 3033R.

Which has more PTO horsepower, the John Deere 3033R or the John Deere 3035D?

The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 24.3 hp hp for the John Deere 3033R.

Which has more loader lift capacity, the John Deere 3033R or the John Deere 3035D?

The John Deere 3033R leads on loader lift at 1,360 lb lb, compared to 1,186 lb lb for the John Deere 3035D.

Which has more three-point hitch lift capacity, the John Deere 3033R or the John Deere 3035D?

The John Deere 3033R leads on 3-pt lift (24 in) at 2,194 lb lb, compared to 2,081.2 lb lb for the John Deere 3035D.

John Deere 3033R vs John Deere 3035D

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the John Deere 3033R leads 5 categories to 2. Machine pages: John Deere 3033R and John Deere 3035D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3033R	John Deere 3035D
Engine HP (hp)	31.8 hp	▲ 34.2 hp
PTO HP (hp)	24.3 hp	▲ 30.4 hp
Loader Lift (lb)	▲ 1,360 lb	1,186 lb
3-Pt Lift (24 in) (lb)	▲ 2,194 lb	2,081.2 lb
Lift Height (in)	▲ 90 in	84 in
Breakout Force (lbf)	▲ 2,855 lbf	1,704 lbf
Hydraulic Flow (gpm)	▲ 14.4 gpm	10.3 gpm
Travel Speed (mph)	18.5 mph	—

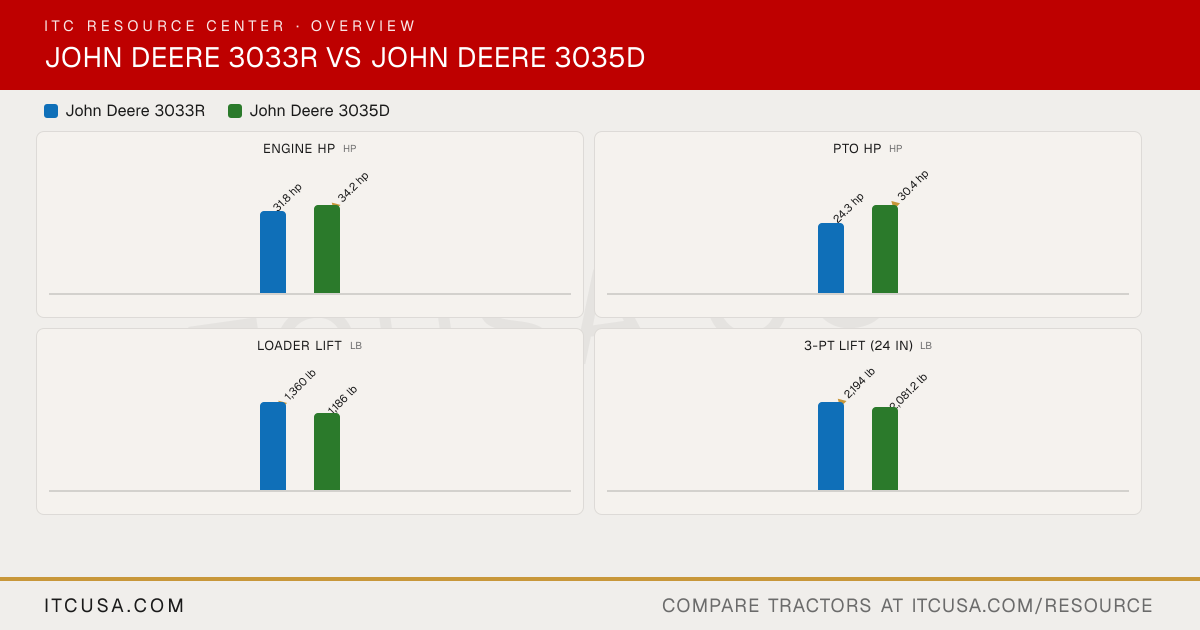

The headline numbers at a glance.

John Deere 3033RJohn Deere 3035D

Engine HPhp

31.8 hp

▲34.2 hp

PTO HPhp

24.3 hp

▲30.4 hp

Weightlb

—

Loader Liftlb

▲1,360 lb

1,186 lb

3-Pt Lift (24 in)lb

▲2,194 lb

2,081.2 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3033R	John Deere3035D


PTO Power	24.3 hp	30.4 hp
Alternator	75 A, 12 V	55 A, 12 V
Air Cleaner	Dry type with safety element (dual element)	Dual element
Engine Type	Diesel, turbocharged	Liquid-cooled diesel, naturally aspirated,
Fuel System	High pressure common rail direct injection (HPCR)	High pressure common rail direct injection
Displacement	97.6 in³	100.1 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Liquid (water pump)	Liquid
Engine Manufacturer	Yanmar	Yanmar
Engine Power (Gross)	31.8 hp @ 600 rpm	34.2 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Implement/steering pump: Dual gear; hydrostatic pump: PV axial piston	Single gear
Steering Flow	5.9 gpm	4.4 gpm
Implement Flow	8.6 gpm	5.9 gpm
Total Hydraulic Flow	14.4 gpm	10.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.4 gpm	10.3 gpm
No. of Optional Remote Valves	Up to 6 rear remotes	Up to two (optional)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm at 2400 rpm engine
PTO Type	Independent	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)
Lift Control Type	Position control	Position control
Hitch Lift Capacity	2,530 lb at hitch ball	Not Published
Mid-PTO Availability	eHydro: Optional (2100 rpm); PowrReverser: Not applicable	Not Published
Category, 3-Point Hitch	Category 1 (limited Category 1 in Operator Manual)	Category 1
Hitch Lift Capacity (at 24”)	2,194 lb at 24 in behind link arms	2081.2 lb

R3 Turf - Rear	41X14-20	41X14-20
R3 Turf - Front	27X8.50-15	27X8.5-15
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Bar, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5 or 43X16-20	15-19.5
R4 Industrial - Front	25X8.5-14 or 27X8.5-15	25X8.5-14
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7-14	7-14

Coolant Capacity	Open station (OOS): 1.4 gal; Cab: 1.9 gal	1.2 gal
Crankcase Capacity	1.1 gal (with filter)	1.1 gal
Fuel Tank Capacity	Open station (OOS): 13.5 gal; Cab: 11.8 gal	10.0 gal
Front Axle Fluid Capacity	1.3 gal	1.0 gal
Transmission / Hydraulic System Capacity	6.8 gal	9.2 gal

Loader Lift Height	90 in	84.0 in
Loader Breakout Force	2,855 lb at pivot; 2,032 lb @ 19.7 in	1,704 lb
Quick Attach Loader System	Quik-Park mounting system	Quick-change attachment carrier
Loader Lift Capacity (Full Height)	1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot	1,186 lb

Clutch	PowrReverser: Wet disk; eHydro: Not Applicable	Single dry traction clutch
No. of Speeds	PowrReverser: 12F/12R; eHydro: infinite in 3 ranges	8F/8R
Transmission Type	PowrReverser: 12F/12R; eHydro: three-range, infinitely variable	8F/8R synchromesh shuttle shift gear transmission
Max Travel Speed (Forward)	18.50 mph	Not Published
Max Travel Speed (Reverse)	18.50 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock: Yes	Differential lock: Yes; limited slip: Not Published

Brakes	Multi-plate wet disk	Wet disk
Steering	Hydrostatic power steering	Power steering
Frame Type	Foldable ROPS; cab or open station configurations available	Not Published
Front Axle Type	Mechanical front wheel drive (MFWD)	MFWD (4WD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	3,196 lb (continuous)	1940 lb
Seat Suspension & Adjustability	Standard seat: height/level/fore-aft adjustments; Deluxe seat: weight (air pressure) & fore-aft adjustments	Not Published

Wheelbase	68.0 in	62 in
Overall Width	69.1 in	57.3 in [at 44.5 in rear tread]
Ground Clearance	12.2 in	13.0 in minimum
Height to Top of ROPS	93.3 in	Not Published
Height to Top of Cab Model	85.0 in	Not Applicable
Height to Top of ROPS (folded)	72.0 in	Not Published
Min. Turn Radius without Brakes	9.2 ft (2.8 m)	Not Published
Overall Length with 3-Point Hitch	120.2 in	Not Published

John Deere 3033R vs John Deere 3035D: Quick Answers

Which has more horsepower, the John Deere 3033R or the John Deere 3035D?: The John Deere 3035D leads on engine hp at 34.2 hp hp, compared to 31.8 hp hp for the John Deere 3033R.
Which has more PTO horsepower, the John Deere 3033R or the John Deere 3035D?: The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 24.3 hp hp for the John Deere 3033R.
Which has more loader lift capacity, the John Deere 3033R or the John Deere 3035D?: The John Deere 3033R leads on loader lift at 1,360 lb lb, compared to 1,186 lb lb for the John Deere 3035D.
Which has more three-point hitch lift capacity, the John Deere 3033R or the John Deere 3035D?: The John Deere 3033R leads on 3-pt lift (24 in) at 2,194 lb lb, compared to 2,081.2 lb lb for the John Deere 3035D.
