John Deere 3035D vs John Deere 4300
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the John Deere 4300 leads 5 categories to 3. Machine pages: John Deere 3035D and John Deere 4300.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

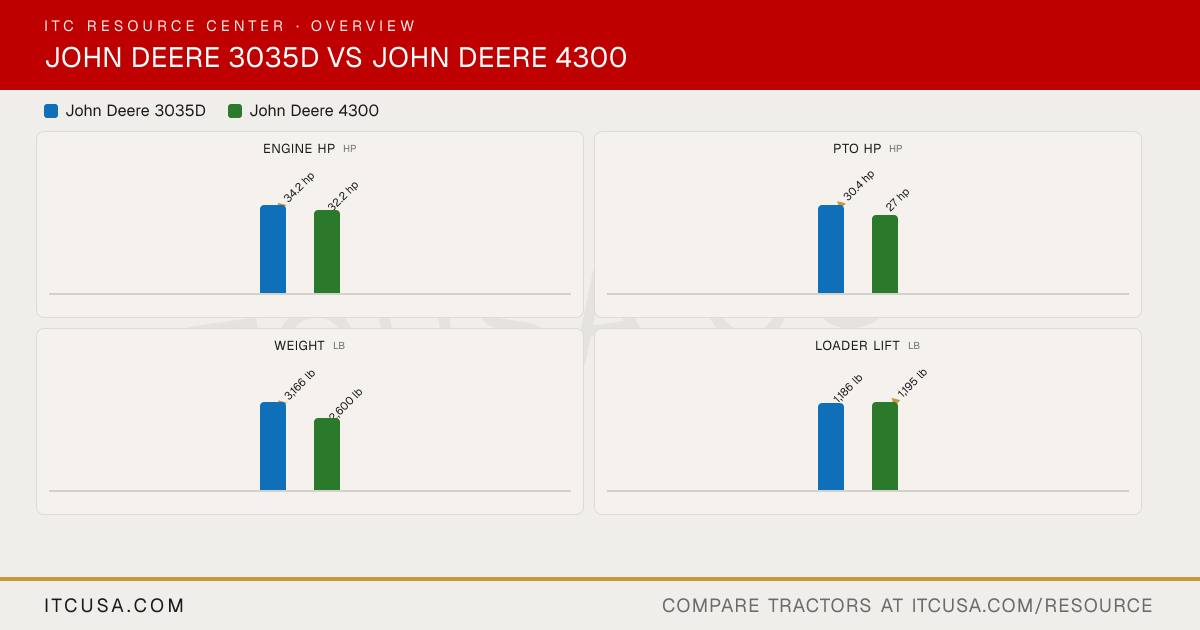

Category Verdict
| Spec | John Deere 3035D | John Deere 4300 |
|---|---|---|
| Engine HP (hp) | ▲ 34.2 hp | 32.2 hp |
| PTO HP (hp) | ▲ 30.4 hp | 27 hp |
| Weight (lb) | ▲ 3,166 lb | 2,600 lb |
| Loader Lift (lb) | 1,186 lb | ▲ 1,195 lb |
| 3-Pt Lift (24 in) (lb) | 2,081.2 lb | ▲ 2,200 lb |
| Lift Height (in) | 84 in | ▲ 87.6 in |
| Breakout Force (lbf) | 1,704 lbf | ▲ 2,693 lbf |
| Hydraulic Flow (gpm) | 10.3 gpm | ▲ 13.3 gpm |
| Travel Speed (mph) | n/a | 15.6 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere3035D | John Deere4300 |
|---|
| Engine Manufacturer | Yanmar | Yanmar |
|---|---|---|
| Engine Model | 3TNV88C-KJPT | 3TNE84 |
| Engine Type | 4-cycle, inline, water-cooled diesel, naturally aspirated | 3-cylinder liquid-cooled diesel, direct injection |
| No. of Cylinders | 3 | 3 |
| Displacement | 100.1 in³ | 91.3 in³ |
| Rated Engine Speed | 2800 rpm | 2700 rpm |
| Engine Power (Gross) | 34.2 hp | 32.2 hp |
| PTO Power | 30.4 hp | 27 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Liquid | Liquid-cooled |
| Air Cleaner | Dual element | Dry type with safety element |
| Fuel System | Direct injection | Direct injection, self bleeding, in-line fuel pump with electric shutoff |
| Alternator | 55 A, 12 V | 40 A |
John Deere 3035D vs John Deere 4300: Quick Answers
- Which has more horsepower, the John Deere 3035D or the John Deere 4300?
- The John Deere 3035D leads on engine hp at 34.2 hp hp, compared to 32.2 hp hp for the John Deere 4300.
- Which has more PTO horsepower, the John Deere 3035D or the John Deere 4300?
- The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 27 hp hp for the John Deere 4300.
- Which is heavier, the John Deere 3035D or the John Deere 4300?
- The John Deere 3035D leads on weight at 3,166 lb lb, compared to 2,600 lb lb for the John Deere 4300.
- Which has more loader lift capacity, the John Deere 3035D or the John Deere 4300?
- The John Deere 4300 leads on loader lift at 1,195 lb lb, compared to 1,186 lb lb for the John Deere 3035D.
- Which has more three-point hitch lift capacity, the John Deere 3035D or the John Deere 4300?
- The John Deere 4300 leads on 3-pt lift (24 in) at 2,200 lb lb, compared to 2,081.2 lb lb for the John Deere 3035D.
