John Deere 3035D vs Massey Ferguson 1734E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the John Deere 3035D leads 5 categories to 3. Machine pages: John Deere 3035D and Massey Ferguson 1734E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3035D	Massey Ferguson 1734E
Engine HP (hp)	▲ 34.2 hp	34 hp
PTO HP (hp)	▲ 30.4 hp	29 hp
Weight (lb)	▲ 3,166 lb	2,767 lb
Loader Lift (lb)	1,186 lb	▲ 1,210 lb
3-Pt Lift (24 in) (lb)	▲ 2,081.2 lb	1,600 lb
Lift Height (in)	84 in	▲ 95.7 in
Breakout Force (lbf)	▲ 1,704 lbf	1,460 lbf
Hydraulic Flow (gpm)	10.3 gpm	▲ 10.5 gpm

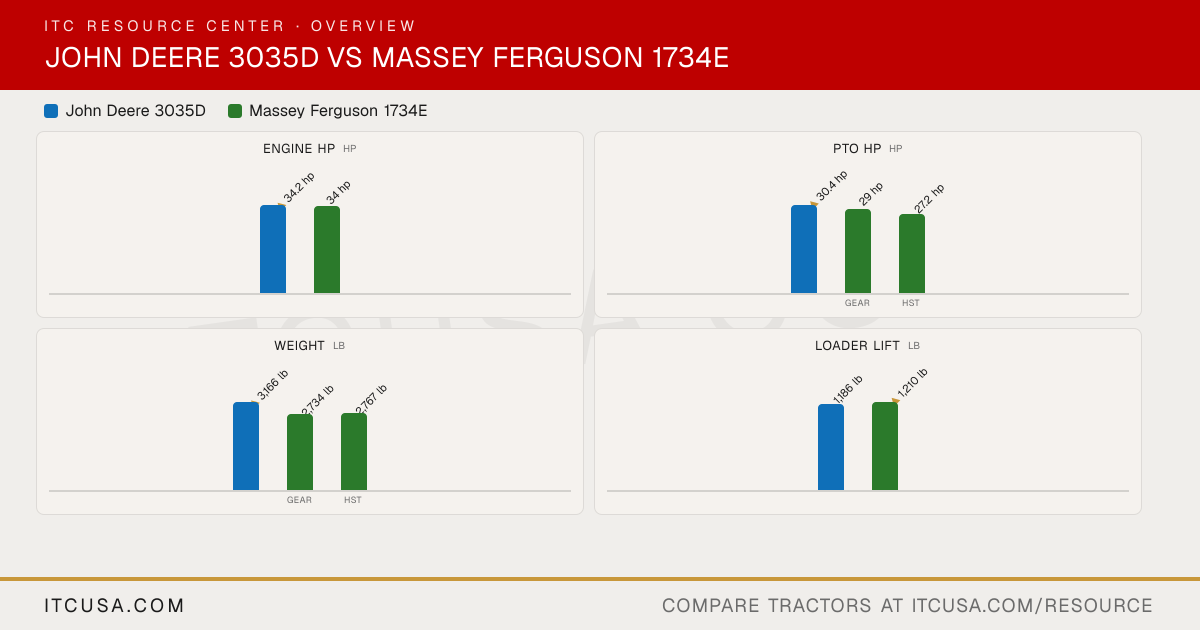

The headline numbers at a glance.

John Deere 3035DMassey Ferguson 1734E

Engine HPhp

▲34.2 hp

34 hp

PTO HPhp

▲30.4 hp

29 hp

27.2 hp

GearHST

Weightlb

▲3,166 lb

2,734 lb

2,767 lb

GearHST

Loader Liftlb

1,186 lb

▲1,210 lb

3-Pt Lift (24 in)lb

▲2,081.2 lb

1,600 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3035D	Massey Ferguson1734E


Engine Manufacturer	Yanmar	Shibaura
Engine Model	3TNV88C-KJPT	Shibaura N843T-F
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	3-cylinder diesel, liquid-cooled, turbocharged
No. of Cylinders	3	3
Displacement	100.1 in³	91.5 in³
Rated Engine Speed	2800 rpm	2600 rpm
Engine Power (Gross)	34.2 hp	34 hp
PTO Power	30.4 hp	Gear: 29 hp; HST: 27.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Liquid-cooled
Air Cleaner	Dual element	Not Published
Fuel System	Direct injection	Turbocharged, indirect low-pressure injection
Alternator	55 A, 12 V	Not Published

Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Gear-type pump
Implement Flow	4.8 gpm	Not Published
Steering Flow	3.6 gpm	3.8 gpm
Total Hydraulic Flow	Not Published	10.5 gpm
Overall Hydraulic Pump Flow	10.3 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	6.7 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to two (optional)	Up to 2

Fuel Tank Capacity	10.0 gal	10.0 gal
Coolant Capacity	1.2 gal	1.32 gal
Crankcase Capacity	1.1 gal	1.22 gal
Transmission / Hydraulic System Capacity	9.2 gal	10.04 gal
Front Axle Fluid Capacity	1.0 gal	1.48 gal

PTO Type	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)	Not Published
PTO Rear	540 rpm at 2800 rpm engine (rated)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	Not Published	2,205 lb
Hitch Lift Capacity (at 24”)	2081.2 lb	1,600 lb
Lift Control Type	Position control	Not Published

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
No. of Speeds	8F/8R	Gear: 9F / 3R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single dry traction clutch	Gear: dry single disc
Differential Lock & Limited Slip Options	Differential lock: Yes; limited slip: Not Published	Mechanical engagement via heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disk	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Seat Suspension & Adjustability	Not Published	Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Front Axle Type	MFWD (4WD)	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	1940 lb	Not Published
Drawbar Capacity	1102 lb	Not Published

Overall Length with 3-Point Hitch	111.2 in	116.0 in (w/o 3-point linkage) (without 3-point hitch)
Overall Width	57.3 in	52.4 in
Wheelbase	62.6 in	65.9 in
Ground Clearance	13.0 in	Not Published
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	Not Published
Height to Top of ROPS	Not Published	97.6 in
Height to Top of ROPS (folded)	Not Published	63.8 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3166 lb	Gear: 2,734 lb; HST: 2,767 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	27X8.5-15	27x8.50-15
R3 Turf - Rear	41X14-20	38x14.00-20
R4 Industrial - Front	25X8.5-14	27x8.50-15
R4 Industrial - Rear	15-19.5	15x19.5

Quick Attach Loader System	Quick-change attachment carrier	L105E: skid steer or pin-type implement attachments
Loader Model	D160	L105E
Loader Lift Height	84.0 in	L105E: 95.7 in
Loader Lift Capacity (Full Height)	1,186 lb	L105E: 1,210 lb
Loader Breakout Force	1,704 lb	L105E: 1,460 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	5-year powertrain warranty

Find a John Deere dealer near you Find a dealer near you

John Deere 3035D vs Massey Ferguson 1734E: Quick Answers

Which has more horsepower, the John Deere 3035D or the Massey Ferguson 1734E?: The John Deere 3035D leads on engine hp at 34.2 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.
Which has more PTO horsepower, the John Deere 3035D or the Massey Ferguson 1734E?: The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 29 hp hp for the Massey Ferguson 1734E.
Which is heavier, the John Deere 3035D or the Massey Ferguson 1734E?: The John Deere 3035D leads on weight at 3,166 lb lb, compared to 2,767 lb lb for the Massey Ferguson 1734E.
Which has more loader lift capacity, the John Deere 3035D or the Massey Ferguson 1734E?: The Massey Ferguson 1734E leads on loader lift at 1,210 lb lb, compared to 1,186 lb lb for the John Deere 3035D.
Which has more three-point hitch lift capacity, the John Deere 3035D or the Massey Ferguson 1734E?: The John Deere 3035D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,600 lb lb for the Massey Ferguson 1734E.

More Head-to-Heads

Category Verdict

Spec	John Deere 3035D	Massey Ferguson 1734E
Engine HP (hp)	▲ 34.2 hp	34 hp
PTO HP (hp)	▲ 30.4 hp	29 hp
Weight (lb)	▲ 3,166 lb	2,767 lb
Loader Lift (lb)	1,186 lb	▲ 1,210 lb
3-Pt Lift (24 in) (lb)	▲ 2,081.2 lb	1,600 lb
Lift Height (in)	84 in	▲ 95.7 in
Breakout Force (lbf)	▲ 1,704 lbf	1,460 lbf
Hydraulic Flow (gpm)	10.3 gpm	▲ 10.5 gpm

The headline numbers at a glance.

John Deere 3035DMassey Ferguson 1734E

Engine HPhp

▲34.2 hp

34 hp

PTO HPhp

▲30.4 hp

29 hp

27.2 hp

GearHST

Weightlb

▲3,166 lb

2,734 lb

2,767 lb

GearHST

Loader Liftlb

1,186 lb

▲1,210 lb

3-Pt Lift (24 in)lb

▲2,081.2 lb

1,600 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3035D	Massey Ferguson1734E


Engine Manufacturer	Yanmar	Shibaura
Engine Model	3TNV88C-KJPT	Shibaura N843T-F
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	3-cylinder diesel, liquid-cooled, turbocharged
No. of Cylinders	3	3
Displacement	100.1 in³	91.5 in³
Rated Engine Speed	2800 rpm	2600 rpm
Engine Power (Gross)	34.2 hp	34 hp
PTO Power	30.4 hp	Gear: 29 hp; HST: 27.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Liquid-cooled
Air Cleaner	Dual element	Not Published
Fuel System	Direct injection	Turbocharged, indirect low-pressure injection
Alternator	55 A, 12 V	Not Published

Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Gear-type pump
Implement Flow	4.8 gpm	Not Published
Steering Flow	3.6 gpm	3.8 gpm
Total Hydraulic Flow	Not Published	10.5 gpm
Overall Hydraulic Pump Flow	10.3 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	6.7 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to two (optional)	Up to 2

Fuel Tank Capacity	10.0 gal	10.0 gal
Coolant Capacity	1.2 gal	1.32 gal
Crankcase Capacity	1.1 gal	1.22 gal
Transmission / Hydraulic System Capacity	9.2 gal	10.04 gal
Front Axle Fluid Capacity	1.0 gal	1.48 gal

PTO Type	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)	Not Published
PTO Rear	540 rpm at 2800 rpm engine (rated)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	Not Published	2,205 lb
Hitch Lift Capacity (at 24”)	2081.2 lb	1,600 lb
Lift Control Type	Position control	Not Published

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
No. of Speeds	8F/8R	Gear: 9F / 3R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single dry traction clutch	Gear: dry single disc
Differential Lock & Limited Slip Options	Differential lock: Yes; limited slip: Not Published	Mechanical engagement via heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disk	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Seat Suspension & Adjustability	Not Published	Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Front Axle Type	MFWD (4WD)	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	1940 lb	Not Published
Drawbar Capacity	1102 lb	Not Published

Overall Length with 3-Point Hitch	111.2 in	116.0 in (w/o 3-point linkage) (without 3-point hitch)
Overall Width	57.3 in	52.4 in
Wheelbase	62.6 in	65.9 in
Ground Clearance	13.0 in	Not Published
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	Not Published
Height to Top of ROPS	Not Published	97.6 in
Height to Top of ROPS (folded)	Not Published	63.8 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3166 lb	Gear: 2,734 lb; HST: 2,767 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	27X8.5-15	27x8.50-15
R3 Turf - Rear	41X14-20	38x14.00-20
R4 Industrial - Front	25X8.5-14	27x8.50-15
R4 Industrial - Rear	15-19.5	15x19.5

Quick Attach Loader System	Quick-change attachment carrier	L105E: skid steer or pin-type implement attachments
Loader Model	D160	L105E
Loader Lift Height	84.0 in	L105E: 95.7 in
Loader Lift Capacity (Full Height)	1,186 lb	L105E: 1,210 lb
Loader Breakout Force	1,704 lb	L105E: 1,460 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	5-year powertrain warranty

Find a John Deere dealer near you Find a dealer near you

John Deere 3035D vs Massey Ferguson 1734E: Quick Answers

Which has more horsepower, the John Deere 3035D or the Massey Ferguson 1734E?

The John Deere 3035D leads on engine hp at 34.2 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.

Which has more PTO horsepower, the John Deere 3035D or the Massey Ferguson 1734E?

The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 29 hp hp for the Massey Ferguson 1734E.

Which is heavier, the John Deere 3035D or the Massey Ferguson 1734E?

The John Deere 3035D leads on weight at 3,166 lb lb, compared to 2,767 lb lb for the Massey Ferguson 1734E.

Which has more loader lift capacity, the John Deere 3035D or the Massey Ferguson 1734E?

The Massey Ferguson 1734E leads on loader lift at 1,210 lb lb, compared to 1,186 lb lb for the John Deere 3035D.

Which has more three-point hitch lift capacity, the John Deere 3035D or the Massey Ferguson 1734E?

The John Deere 3035D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,600 lb lb for the Massey Ferguson 1734E.
