John Deere 3035D vs Massey Ferguson 1835E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Massey Ferguson 1835E leads 5 categories to 3. Machine pages: John Deere 3035D and Massey Ferguson 1835E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3035D	Massey Ferguson 1835E
Engine HP (hp)	34.2 hp	▲ 34.5 hp
PTO HP (hp)	▲ 30.4 hp	29.2 hp
Weight (lb)	▲ 3,166 lb	2,877 lb
Loader Lift (lb)	1,186 lb	▲ 1,450 lb
3-Pt Lift (24 in) (lb)	▲ 2,081.2 lb	1,598 lb
Lift Height (in)	84 in	▲ 94.3 in
Breakout Force (lbf)	1,704 lbf	▲ 2,288 lbf
Hydraulic Flow (gpm)	10.3 gpm	▲ 11.4 gpm

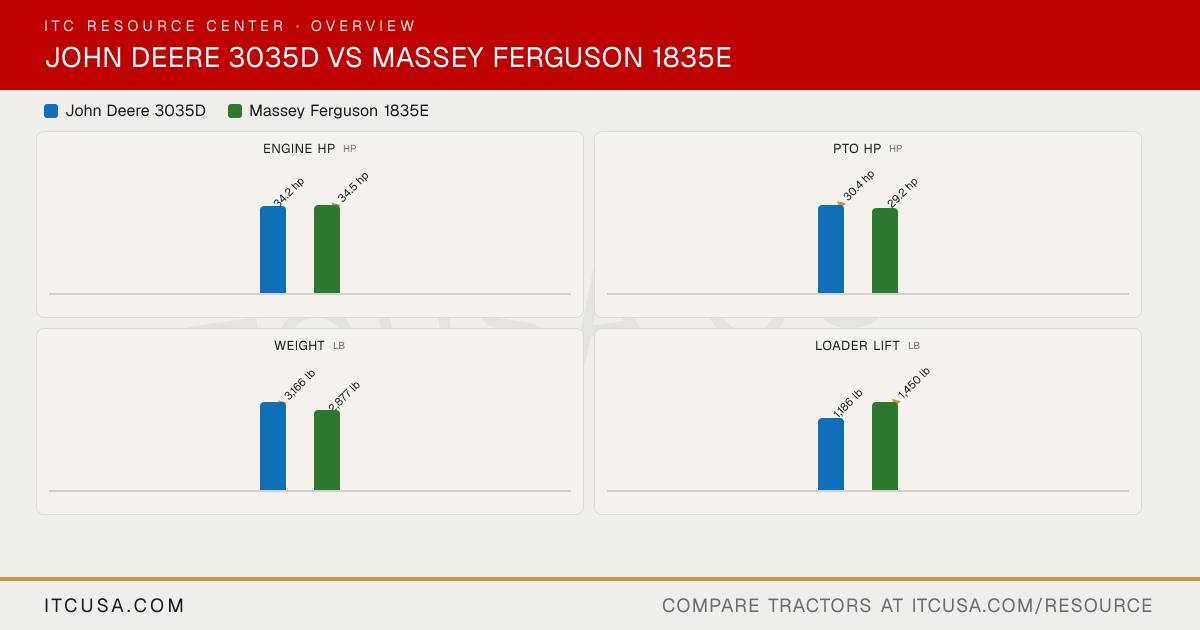

The headline numbers at a glance.

John Deere 3035DMassey Ferguson 1835E

Engine HPhp

34.2 hp

▲34.5 hp

PTO HPhp

▲30.4 hp

29.2 hp

Weightlb

▲3,166 lb

2,877 lb

Loader Liftlb

1,186 lb

▲1,450 lb

3-Pt Lift (24 in)lb

▲2,081.2 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3035D	Massey Ferguson1835E


Engine Manufacturer	Yanmar	Iseki
Engine Model	3TNV88C-KJPT	Not Published
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	100.1 in³	111.4 in³
Rated Engine Speed	2800 rpm	2600 rpm
Engine Power (Gross)	34.2 hp	34.5 hp
PTO Power	30.4 hp	29.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Liquid-cooled
Air Cleaner	Dual element	Not Published
Fuel System	Direct injection	Not Published
Alternator	55 A, 12 V	Not Published

Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Two gear-type pumps, one for steering and one for 3-point and remotes
Implement Flow	4.8 gpm	7.6 gpm
Steering Flow	3.6 gpm	3.8 gpm
Total Hydraulic Flow	Not Published	11.4 gpm
Overall Hydraulic Pump Flow	10.3 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to two (optional)	Not Published

Fuel Tank Capacity	10.0 gal	10.0 gal
Coolant Capacity	1.2 gal	7.61 qt
Crankcase Capacity	1.1 gal	5.47 qt
Transmission / Hydraulic System Capacity	9.2 gal	Not Published
Front Axle Fluid Capacity	1.0 gal	6.0 qt

PTO Type	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm at 2800 rpm engine (rated)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	Not Published	2,205 lb
Hitch Lift Capacity (at 24”)	2081.2 lb	1,598 lb
Lift Control Type	Position control	Not Published

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	8F/8R	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single dry traction clutch	Not Published
Differential Lock & Limited Slip Options	Differential lock: Yes; limited slip: Not Published	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disk	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	MFWD (4WD)	Not Published
Front Axle Rating	1940 lb	Not Published
Drawbar Capacity	1102 lb	Not Published

Overall Length with 3-Point Hitch	111.2 in	116.5 in
Overall Width	57.3 in	52.4 in
Wheelbase	62.6 in	Not Published
Ground Clearance	13.0 in	11.0 in
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	Not Published
Height to Top of ROPS	Not Published	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3166 lb	2,877 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	27X8.5-15	Not Published
R3 Turf - Rear	41X14-20	Not Published
R4 Industrial - Front	25X8.5-14	Not Published
R4 Industrial - Rear	15-19.5	Not Published

Quick Attach Loader System	Quick-change attachment carrier	FLx2407: skid steer quick attach
Loader Model	D160	FLx2407
Loader Lift Height	84.0 in	FLx2407: 94.3 in
Loader Lift Capacity (Full Height)	1,186 lb	FLx2407: 1,450 lb
Loader Breakout Force	1,704 lb	FLx2407: 2,288 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	5-year powertrain warranty

Find a John Deere dealer near you Find a dealer near you

John Deere 3035D vs Massey Ferguson 1835E: Quick Answers

Which has more horsepower, the John Deere 3035D or the Massey Ferguson 1835E?: The Massey Ferguson 1835E leads on engine hp at 34.5 hp hp, compared to 34.2 hp hp for the John Deere 3035D.
Which has more PTO horsepower, the John Deere 3035D or the Massey Ferguson 1835E?: The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 29.2 hp hp for the Massey Ferguson 1835E.
Which is heavier, the John Deere 3035D or the Massey Ferguson 1835E?: The John Deere 3035D leads on weight at 3,166 lb lb, compared to 2,877 lb lb for the Massey Ferguson 1835E.
Which has more loader lift capacity, the John Deere 3035D or the Massey Ferguson 1835E?: The Massey Ferguson 1835E leads on loader lift at 1,450 lb lb, compared to 1,186 lb lb for the John Deere 3035D.
Which has more three-point hitch lift capacity, the John Deere 3035D or the Massey Ferguson 1835E?: The John Deere 3035D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1835E.

More Head-to-Heads

Category Verdict

Spec	John Deere 3035D	Massey Ferguson 1835E
Engine HP (hp)	34.2 hp	▲ 34.5 hp
PTO HP (hp)	▲ 30.4 hp	29.2 hp
Weight (lb)	▲ 3,166 lb	2,877 lb
Loader Lift (lb)	1,186 lb	▲ 1,450 lb
3-Pt Lift (24 in) (lb)	▲ 2,081.2 lb	1,598 lb
Lift Height (in)	84 in	▲ 94.3 in
Breakout Force (lbf)	1,704 lbf	▲ 2,288 lbf
Hydraulic Flow (gpm)	10.3 gpm	▲ 11.4 gpm

The headline numbers at a glance.

John Deere 3035DMassey Ferguson 1835E

Engine HPhp

34.2 hp

▲34.5 hp

PTO HPhp

▲30.4 hp

29.2 hp

Weightlb

▲3,166 lb

2,877 lb

Loader Liftlb

1,186 lb

▲1,450 lb

3-Pt Lift (24 in)lb

▲2,081.2 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3035D	Massey Ferguson1835E


Engine Manufacturer	Yanmar	Iseki
Engine Model	3TNV88C-KJPT	Not Published
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	100.1 in³	111.4 in³
Rated Engine Speed	2800 rpm	2600 rpm
Engine Power (Gross)	34.2 hp	34.5 hp
PTO Power	30.4 hp	29.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Liquid-cooled
Air Cleaner	Dual element	Not Published
Fuel System	Direct injection	Not Published
Alternator	55 A, 12 V	Not Published

Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Two gear-type pumps, one for steering and one for 3-point and remotes
Implement Flow	4.8 gpm	7.6 gpm
Steering Flow	3.6 gpm	3.8 gpm
Total Hydraulic Flow	Not Published	11.4 gpm
Overall Hydraulic Pump Flow	10.3 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to two (optional)	Not Published

Fuel Tank Capacity	10.0 gal	10.0 gal
Coolant Capacity	1.2 gal	7.61 qt
Crankcase Capacity	1.1 gal	5.47 qt
Transmission / Hydraulic System Capacity	9.2 gal	Not Published
Front Axle Fluid Capacity	1.0 gal	6.0 qt

PTO Type	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm at 2800 rpm engine (rated)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	Not Published	2,205 lb
Hitch Lift Capacity (at 24”)	2081.2 lb	1,598 lb
Lift Control Type	Position control	Not Published

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	8F/8R	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single dry traction clutch	Not Published
Differential Lock & Limited Slip Options	Differential lock: Yes; limited slip: Not Published	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disk	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	MFWD (4WD)	Not Published
Front Axle Rating	1940 lb	Not Published
Drawbar Capacity	1102 lb	Not Published

Overall Length with 3-Point Hitch	111.2 in	116.5 in
Overall Width	57.3 in	52.4 in
Wheelbase	62.6 in	Not Published
Ground Clearance	13.0 in	11.0 in
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	Not Published
Height to Top of ROPS	Not Published	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3166 lb	2,877 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	27X8.5-15	Not Published
R3 Turf - Rear	41X14-20	Not Published
R4 Industrial - Front	25X8.5-14	Not Published
R4 Industrial - Rear	15-19.5	Not Published

Quick Attach Loader System	Quick-change attachment carrier	FLx2407: skid steer quick attach
Loader Model	D160	FLx2407
Loader Lift Height	84.0 in	FLx2407: 94.3 in
Loader Lift Capacity (Full Height)	1,186 lb	FLx2407: 1,450 lb
Loader Breakout Force	1,704 lb	FLx2407: 2,288 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	5-year powertrain warranty

Find a John Deere dealer near you Find a dealer near you

John Deere 3035D vs Massey Ferguson 1835E: Quick Answers

Which has more horsepower, the John Deere 3035D or the Massey Ferguson 1835E?

The Massey Ferguson 1835E leads on engine hp at 34.5 hp hp, compared to 34.2 hp hp for the John Deere 3035D.

Which has more PTO horsepower, the John Deere 3035D or the Massey Ferguson 1835E?

The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 29.2 hp hp for the Massey Ferguson 1835E.

Which is heavier, the John Deere 3035D or the Massey Ferguson 1835E?

The John Deere 3035D leads on weight at 3,166 lb lb, compared to 2,877 lb lb for the Massey Ferguson 1835E.

Which has more loader lift capacity, the John Deere 3035D or the Massey Ferguson 1835E?

The Massey Ferguson 1835E leads on loader lift at 1,450 lb lb, compared to 1,186 lb lb for the John Deere 3035D.

Which has more three-point hitch lift capacity, the John Deere 3035D or the Massey Ferguson 1835E?

The John Deere 3035D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1835E.
