John Deere 3035D vs Yanmar YT235

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Yanmar YT235 leads 4 categories to 2 (2 tied). Machine pages: John Deere 3035D and Yanmar YT235.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3035D	Yanmar YT235
Engine HP (hp)	34.2 hp	34.2 hp
PTO HP (hp)	▲ 30.4 hp	27 hp
Weight (lb)	▲ 2,800 lb	2,558 lb
Loader Lift (lb)	1,186 lb	▲ 1,300 lb
3-Pt Lift (24 in) (lb)	1,670 lb	▲ 1,764 lb
Lift Height (in)	84 in	84 in
Breakout Force (lbf)	1,704 lbf	▲ 2,105 lbf
Hydraulic Flow (gpm)	10.3 gpm	▲ 11.2 gpm
Travel Speed (mph)	n/a	11.7 mph

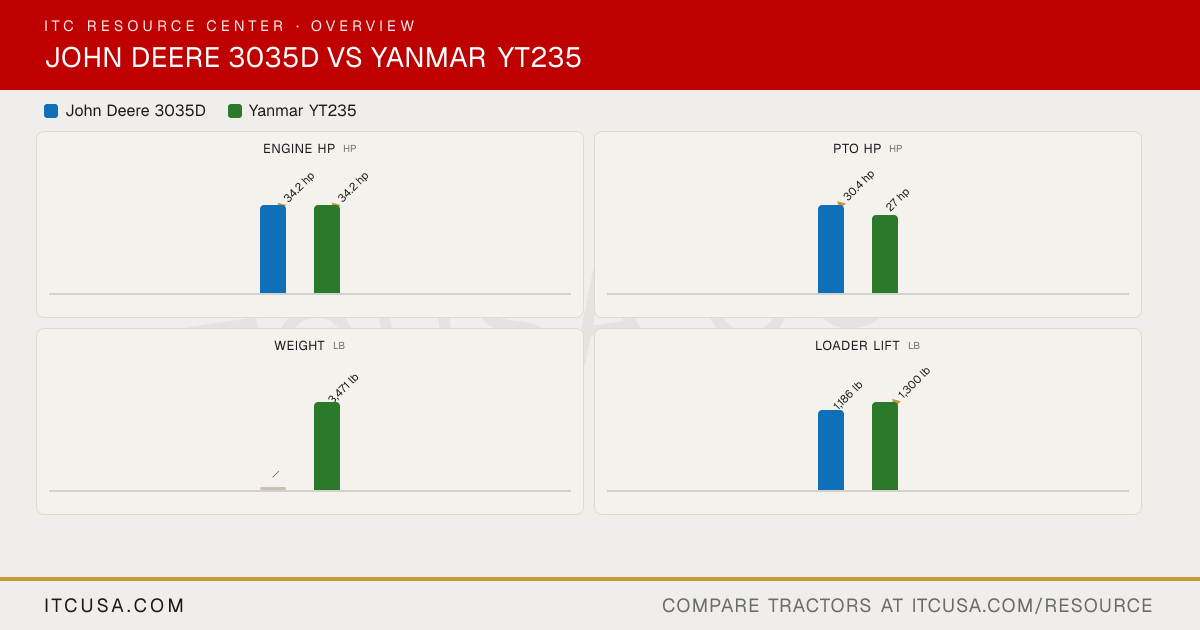

The headline numbers at a glance.

John Deere 3035DYanmar YT235

Engine HPhp

▲34.2 hp

PTO HPhp

▲30.4 hp

27 hp

Weightlb

▲2,800 lb

2,558 lb

Loader Liftlb

1,186 lb

▲1,300 lb

3-Pt Lift (24 in)lb

1,670 lb

▲1,764 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3035D	YanmarYT235


Engine Manufacturer	Yanmar	YANMAR
Engine Model	3TNV88C-KJPT	3TNV88C
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	100.2 in³	100.1 in³
Rated Engine Speed	2800 rpm	2800 rpm
Engine Power (Gross)	34.2 hp	34.2 hp
PTO Power	30.4 hp	27 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Liquid cooled
Air Cleaner	Dry	Dual stage cyclonic (resin 5.5 in.)
Fuel System	Direct injection	Common rail direct injection
Alternator	55 A, 12 V	40 A

Pump Type	2 single-section external gear pumps, 1 on each side of the engine timing-gear cover	Not Published
Implement Flow	5.9 gpm	7.1 gpm
Steering Flow	4.4 gpm	4.1 gpm
Total Hydraulic Flow	10.3 gpm	11.2 gpm (7.1 + 4.1, computed)
Overall Hydraulic Pump Flow	10.3 gpm	11.2 gpm (7.1 + 4.1, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	Up to two (optional)	Not Published

Fuel Tank Capacity	9.7 gal	7.4 gal
Coolant Capacity	1.2 gal	4.8 qt
Crankcase Capacity	1.1 gal	4.6 qt
Transmission / Hydraulic System Capacity	9.2 gal	8.2 gal
Front Axle Fluid Capacity	1.0 gal	2.4 gal

PTO Type	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)	Independent (electro-hydraulic)
PTO Rear	540 rpm at 2800 rpm engine (rated)	540 rpm
Mid-PTO Availability	Not Published	Standard
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	2,205 lb
Hitch Lift Capacity (at 24”)	1,670 lb	1,764 lb
Lift Control Type	Position control	Position control

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	Hydrostatic (Dual Touch Pedal)
No. of Speeds	8F/8R	Hydrostatic; 3 ranges
Max Travel Speed (Forward)	Not Published	11.7 mph (with R4 tires)
Max Travel Speed (Reverse)	Not Published	8.2 mph (with R4 tires)
Clutch	Single dry traction clutch	N/A (hydrostatic)
Differential Lock & Limited Slip Options	Differential lock: Yes	Rear differential lock (foot pedal engagement)

Frame Type	Not Published	Not Published
Steering	Power steering	Fully hydraulic power steering
Brakes	Wet disk	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	MFWD (4WD)	2WD/4WD selectable engagement
Front Axle Rating	1,940 lb	Not Published
Drawbar Capacity	1,102 lb (static vertical load)	Not Published

Overall Width	57.3 in	58.3 in (with R4 tires)
Wheelbase	62 in	65 in
Ground Clearance	14 in	10.8 in (with R4 tires)
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	Not Published
Height to Top of ROPS	Not Published	89.0 in (with R4 tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	111.2 in	116.9 in (with 3-point hitch and R4 tires)

Tractor Weight (Base)	2,800 lb	2,558 lb (with ROPS, R4 tires, full fluid)
Weight with ROPS and Loader	Not Published	3,473 lb (2,558 + 617 + 298, computed; YL310 loader with bucket)
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-14	6-14
R1 Agricultural - Rear	11.2-24	9.5-22
R3 Turf - Front	27X8.5-15	25x8.5-14
R3 Turf - Rear	41X14-20	13.6x16
R4 Industrial - Front	25X8.5-14	25x8.5-14
R4 Industrial - Rear	15-19.5	15-19.6

Quick Attach Loader System	Quick-change attachment carrier	YL310: Skid steer style bucket attachment
Loader Model	300E	YL310
Loader Lift Height	84 in (at pivot pin)	YL310: 84 in (to bucket pivot pin)
Loader Lift Capacity (Full Height)	1,186 lb (at pivot pin)	YL310: 1,300 lb at pivot pins
Loader Breakout Force	1,704 lbf (at pivot pin)	YL310: 2,105 lb at pivot pins

Warranty Length & Coverage	Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours	Basic 24 months or 2,000 hours; powertrain 10 years or 3,000 hours; attachments 1 year

Find a John Deere dealer near you Find a dealer near you

John Deere 3035D vs Yanmar YT235: Quick Answers

Which has more horsepower, the John Deere 3035D or the Yanmar YT235?: They are effectively tied: both machines are rated at 34.2 hp hp for engine hp.
Which has more PTO horsepower, the John Deere 3035D or the Yanmar YT235?: The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 27 hp hp for the Yanmar YT235.
Which is heavier, the John Deere 3035D or the Yanmar YT235?: The John Deere 3035D leads on weight at 2,800 lb lb, compared to 2,558 lb lb for the Yanmar YT235.
Which has more loader lift capacity, the John Deere 3035D or the Yanmar YT235?: The Yanmar YT235 leads on loader lift at 1,300 lb lb, compared to 1,186 lb lb for the John Deere 3035D.
Which has more three-point hitch lift capacity, the John Deere 3035D or the Yanmar YT235?: The Yanmar YT235 leads on 3-pt lift (24 in) at 1,764 lb lb, compared to 1,670 lb lb for the John Deere 3035D.

More Head-to-Heads

Category Verdict

Spec	John Deere 3035D	Yanmar YT235
Engine HP (hp)	34.2 hp	34.2 hp
PTO HP (hp)	▲ 30.4 hp	27 hp
Weight (lb)	▲ 2,800 lb	2,558 lb
Loader Lift (lb)	1,186 lb	▲ 1,300 lb
3-Pt Lift (24 in) (lb)	1,670 lb	▲ 1,764 lb
Lift Height (in)	84 in	84 in
Breakout Force (lbf)	1,704 lbf	▲ 2,105 lbf
Hydraulic Flow (gpm)	10.3 gpm	▲ 11.2 gpm
Travel Speed (mph)	n/a	11.7 mph

The headline numbers at a glance.

John Deere 3035DYanmar YT235

Engine HPhp

▲34.2 hp

PTO HPhp

▲30.4 hp

27 hp

Weightlb

▲2,800 lb

2,558 lb

Loader Liftlb

1,186 lb

▲1,300 lb

3-Pt Lift (24 in)lb

1,670 lb

▲1,764 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3035D	YanmarYT235


Engine Manufacturer	Yanmar	YANMAR
Engine Model	3TNV88C-KJPT	3TNV88C
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	100.2 in³	100.1 in³
Rated Engine Speed	2800 rpm	2800 rpm
Engine Power (Gross)	34.2 hp	34.2 hp
PTO Power	30.4 hp	27 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Liquid cooled
Air Cleaner	Dry	Dual stage cyclonic (resin 5.5 in.)
Fuel System	Direct injection	Common rail direct injection
Alternator	55 A, 12 V	40 A

Pump Type	2 single-section external gear pumps, 1 on each side of the engine timing-gear cover	Not Published
Implement Flow	5.9 gpm	7.1 gpm
Steering Flow	4.4 gpm	4.1 gpm
Total Hydraulic Flow	10.3 gpm	11.2 gpm (7.1 + 4.1, computed)
Overall Hydraulic Pump Flow	10.3 gpm	11.2 gpm (7.1 + 4.1, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	Up to two (optional)	Not Published

Fuel Tank Capacity	9.7 gal	7.4 gal
Coolant Capacity	1.2 gal	4.8 qt
Crankcase Capacity	1.1 gal	4.6 qt
Transmission / Hydraulic System Capacity	9.2 gal	8.2 gal
Front Axle Fluid Capacity	1.0 gal	2.4 gal

PTO Type	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)	Independent (electro-hydraulic)
PTO Rear	540 rpm at 2800 rpm engine (rated)	540 rpm
Mid-PTO Availability	Not Published	Standard
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	2,205 lb
Hitch Lift Capacity (at 24”)	1,670 lb	1,764 lb
Lift Control Type	Position control	Position control

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	Hydrostatic (Dual Touch Pedal)
No. of Speeds	8F/8R	Hydrostatic; 3 ranges
Max Travel Speed (Forward)	Not Published	11.7 mph (with R4 tires)
Max Travel Speed (Reverse)	Not Published	8.2 mph (with R4 tires)
Clutch	Single dry traction clutch	N/A (hydrostatic)
Differential Lock & Limited Slip Options	Differential lock: Yes	Rear differential lock (foot pedal engagement)

Frame Type	Not Published	Not Published
Steering	Power steering	Fully hydraulic power steering
Brakes	Wet disk	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	MFWD (4WD)	2WD/4WD selectable engagement
Front Axle Rating	1,940 lb	Not Published
Drawbar Capacity	1,102 lb (static vertical load)	Not Published

Overall Width	57.3 in	58.3 in (with R4 tires)
Wheelbase	62 in	65 in
Ground Clearance	14 in	10.8 in (with R4 tires)
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	Not Published
Height to Top of ROPS	Not Published	89.0 in (with R4 tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	111.2 in	116.9 in (with 3-point hitch and R4 tires)

Tractor Weight (Base)	2,800 lb	2,558 lb (with ROPS, R4 tires, full fluid)
Weight with ROPS and Loader	Not Published	3,473 lb (2,558 + 617 + 298, computed; YL310 loader with bucket)
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-14	6-14
R1 Agricultural - Rear	11.2-24	9.5-22
R3 Turf - Front	27X8.5-15	25x8.5-14
R3 Turf - Rear	41X14-20	13.6x16
R4 Industrial - Front	25X8.5-14	25x8.5-14
R4 Industrial - Rear	15-19.5	15-19.6

Quick Attach Loader System	Quick-change attachment carrier	YL310: Skid steer style bucket attachment
Loader Model	300E	YL310
Loader Lift Height	84 in (at pivot pin)	YL310: 84 in (to bucket pivot pin)
Loader Lift Capacity (Full Height)	1,186 lb (at pivot pin)	YL310: 1,300 lb at pivot pins
Loader Breakout Force	1,704 lbf (at pivot pin)	YL310: 2,105 lb at pivot pins

Warranty Length & Coverage	Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours	Basic 24 months or 2,000 hours; powertrain 10 years or 3,000 hours; attachments 1 year

Find a John Deere dealer near you Find a dealer near you

John Deere 3035D vs Yanmar YT235: Quick Answers

Which has more horsepower, the John Deere 3035D or the Yanmar YT235?

They are effectively tied: both machines are rated at 34.2 hp hp for engine hp.

Which has more PTO horsepower, the John Deere 3035D or the Yanmar YT235?

The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 27 hp hp for the Yanmar YT235.

Which is heavier, the John Deere 3035D or the Yanmar YT235?

The John Deere 3035D leads on weight at 2,800 lb lb, compared to 2,558 lb lb for the Yanmar YT235.

Which has more loader lift capacity, the John Deere 3035D or the Yanmar YT235?

The Yanmar YT235 leads on loader lift at 1,300 lb lb, compared to 1,186 lb lb for the John Deere 3035D.

Which has more three-point hitch lift capacity, the John Deere 3035D or the Yanmar YT235?

The Yanmar YT235 leads on 3-pt lift (24 in) at 1,764 lb lb, compared to 1,670 lb lb for the John Deere 3035D.
