John Deere 4105 vs TYM 4215

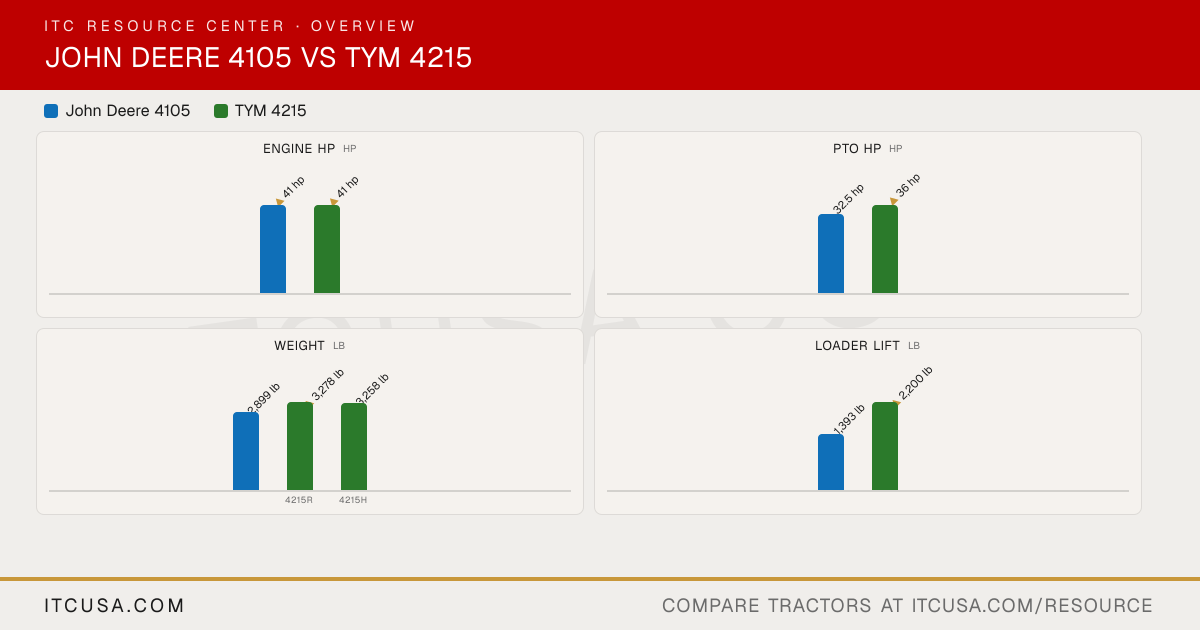

Across 9 measurable specs, the TYM 4215 leads 7 categories to 1 (1 tied). Machine pages: John Deere 4105 and TYM 4215.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere4105	TYM4215

▶Engine
Engine Manufacturer	Yanmar	TYM
Engine Model	3TNV84T-KJT	T2000N2
Engine Type	3-cylinder turbocharged liquid-cooled diesel, direct injection	4-cylinder, naturally aspirated diesel
No. of Cylinders	3	4
Displacement	91.5 in³	139.5 in³
Rated Engine Speed	2800 rpm	2600 rpm
Engine Power (Gross)	41 hp	41 hp
PTO Power	32.5 hp	36 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dry type with safety element	Dry element
Fuel System	Direct injection, self bleeding, in-line fuel pump with electric shutoff	IDI
Alternator	40 A	50 A, 12 V
▶Hydraulics
Pump Type	Dual tandem gear pump	Dual gear pump
Implement Flow	9.2 gpm	11.4 gpm
Steering Flow	5.7 gpm	5.2 gpm
Total Hydraulic Flow	14.8 gpm	16.5 gpm
Overall Hydraulic Pump Flow	14.8 gpm	16.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	Rear: 0 (loader: 2)
No. of Optional Remote Valves	Not Published	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	11.5 gal	7.1 gal
Coolant Capacity	1.4 gal	5.8 qt
Crankcase Capacity	4.5 qt	4.8 qt
Transmission / Hydraulic System Capacity	8.3 gal	4215R: 9 gal; 4215H: 9.8 gal
Front Axle Fluid Capacity	1.2 gal	6.8 qt
▶PTO & Hitch
PTO Type	Independent, wet disk clutch	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	Not Published	3,306 lb
Hitch Lift Capacity (at 24”)	2200 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	2-range hydrostatic	4215R: Synchromesh shuttle; 4215H: HST
No. of Speeds	Infinite forward and reverse, 2 ranges	4215R: 12 forward / 12 reverse; 4215H: 3-range hydrostatic
Max Travel Speed (Forward)	13 mph	4215R: 14.4 mph; 4215H: 18.8 mph
Max Travel Speed (Reverse)	12.6 mph	4215R: 14.3 mph; 4215H: 18.7 mph
Clutch	Wet disk	4215R: Dry single plate; 4215H: Not applicable (HST)
Differential Lock & Limited Slip Options	Mechanical rear differential lock (ball, ramp and pin)	Differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Fixed ROPS; four-wheel drive standard	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disk	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Suspension seat
Front Axle Type	Mechanical front wheel drive (MFWD), standard, all ranges	Not Published
Front Axle Rating	3197 lb	Not Published
Drawbar Capacity	882 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	120.2 in	120.9 in
Overall Width	63 in (minimum, R1 rear tires); 65.8 in (maximum, R4 rear tires)	56.3 in
Wheelbase	68 in	65.7 in
Ground Clearance	14.7 in (front axle)	14.4 in
Min. Turn Radius without Brakes	Not Published	124.8 in (left); 121.3 in (right)
Height to Top of ROPS	87.6 in	97.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2899 lb	4215R: 3,278 lb; 4215H: 3,258 lb
Weight with ROPS and Loader	Not Published	HST: 4,266 lb; Gear: 4,286 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 bar tread (8.00-16 front, 14.9-24 rear) or R4 industrial (10.0-16.5 front, 17.5L-24 rear)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8.00-16	8-16
R1 Agricultural - Rear	14.9-24	12.4-24
R3 Turf - Front	Not Published	27x8.5-15, 6PR
R3 Turf - Rear	Not Published	41x14.00, 4PR
R4 Industrial - Front	10.0-16.5	10-16.5, 6PR (standard); 25x8.50-14 (option)
R4 Industrial - Rear	17.5L-24	420/70-24, 6PR (standard); 15x19.5 (option)
▶Loader & Attachments
Quick Attach Loader System	Not Published	BL150: quick attachment assembly
Loader Model	300CX	BL150
Loader Lift Height	H165: 103 in; 320R: 103 in	BL150: 104.9 in
Loader Lift Capacity (Full Height)	300CX: 1393 lb (at full height, measured at pivot)	BL150: 2,200 lb
Loader Breakout Force	H165: 3769 lbf; 320R: 3769 lbf; 300CX: 3769 lbf (at pivot point)	BL150: 3,422 lb
▶Warranty
Warranty Length & Coverage	3-year / 2,000-hour limited warranty (as sold new)	Bumper-to-bumper 24 months or 2,000 hours (parts and labor); powertrain 72 months or 3,000 hours for non-commercial use (36 months or 2,000 hours rental and commercial); loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $225.00

Find a John Deere dealer near you→Find a TYM dealer near you→

John Deere 4105 vs TYM 4215: Quick Answers

Which has more horsepower, the John Deere 4105 or the TYM 4215?

They are effectively tied: both machines are rated at 41 hp hp for engine hp.

Which has more PTO horsepower, the John Deere 4105 or the TYM 4215?

The TYM 4215 leads on pto hp at 36 hp hp, compared to 32.5 hp hp for the John Deere 4105.

Which is heavier, the John Deere 4105 or the TYM 4215?

The TYM 4215 leads on weight at 3,278 lb lb, compared to 2,899 lb lb for the John Deere 4105.

Which has more loader lift capacity, the John Deere 4105 or the TYM 4215?

The TYM 4215 leads on loader lift at 2,200 lb lb, compared to 1,393 lb lb for the John Deere 4105.

Which has more three-point hitch lift capacity, the John Deere 4105 or the TYM 4215?

The TYM 4215 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,200 lb lb for the John Deere 4105.
