Which has more horsepower, the Kioti CK2510 or the Kioti CS2220?

The Kioti CK2510 leads on engine hp at 24.5 hp hp, compared to 21 hp hp for the Kioti CS2220.

Which has more PTO horsepower, the Kioti CK2510 or the Kioti CS2220?

The Kioti CK2510 leads on pto hp at 20 hp hp, compared to 16.3 hp hp for the Kioti CS2220.

Which has more loader lift capacity, the Kioti CK2510 or the Kioti CS2220?

The Kioti CK2510 leads on loader lift at 1,092 lb lb, compared to 1,062.3 lb lb for the Kioti CS2220.

Which has more three-point hitch lift capacity, the Kioti CK2510 or the Kioti CS2220?

The Kioti CK2510 leads on 3-pt lift (24 in) at 1,203 lb lb, compared to 700 lb lb for the Kioti CS2220.

Kioti CK2510 vs Kioti CS2220

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kioti CK2510 leads 8 categories to 0. Machine pages: Kioti CK2510 and Kioti CS2220.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti CK2510	Kioti CS2220
Engine HP (hp)	▲ 24.5 hp	21 hp
PTO HP (hp)	▲ 20 hp	16.3 hp
Weight (lb)	—	2,127 lb
Loader Lift (lb)	▲ 1,092 lb	1,062.3 lb
3-Pt Lift (24 in) (lb)	▲ 1,203 lb	700 lb
Lift Height (in)	▲ 87.8 in	73.7 in
Breakout Force (lbf)	▲ 1,843 lbf	1,329 lbf
Hydraulic Flow (gpm)	▲ 11.3 gpm	7 gpm
Travel Speed (mph)	▲ 10.8 mph	10.3 mph

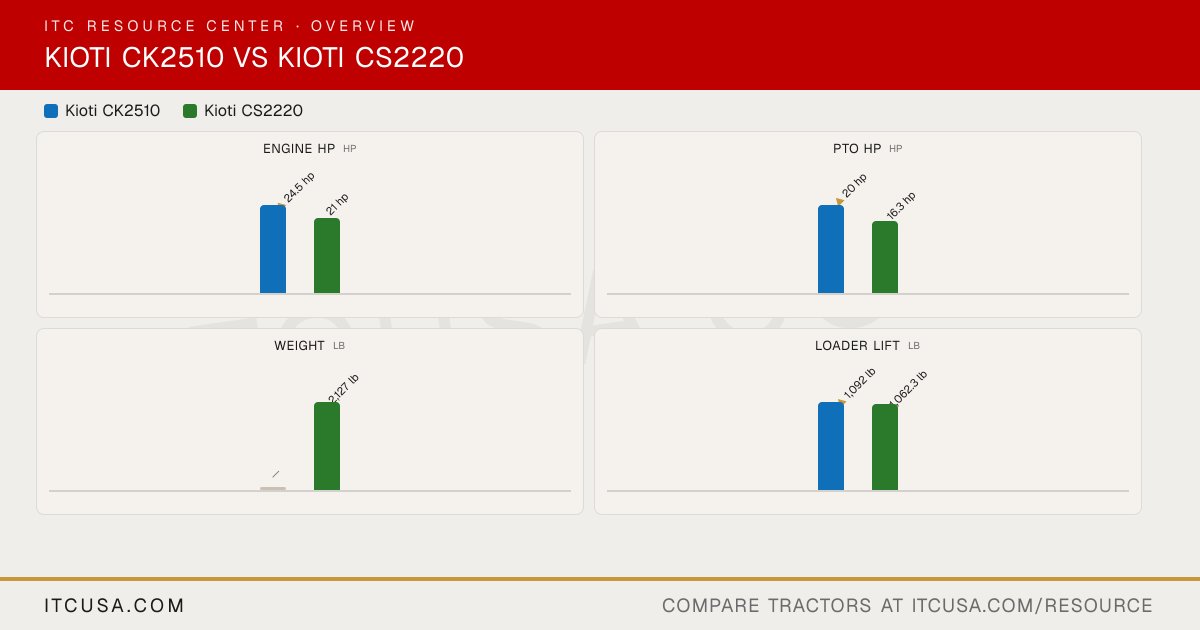

The headline numbers at a glance.

Kioti CK2510Kioti CS2220

Engine HPhp

▲24.5 hp

21 hp

PTO HPhp

▲20 hp

16.3 hp

Weightlb

—

2,127 lb

Loader Liftlb

▲1,092 lb

1,062.3 lb

3-Pt Lift (24 in)lb

▲1,203 lb

700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCK2510	KiotiCS2220


PTO Power	20 hp	16.3 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Liquid-cooled, inline, diesel	In-line vertical, water-cooled turbo, diesel
Fuel System	Indirect injection	Injection pump
Displacement	85 in³	61.5 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3200 rpm
Cooling System Type	Liquid-cooled	Water-cooled
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Power (Gross)	24.5 hp	21 hp
Engine Emissions Constraints	Tier 4	U.S. EPA non-road emission regulation

Weight with ROPS and Loader	Not Published	2,127 lb
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor

Pump Type	Gear pump	Gear
Steering Flow	Not Published	Not Published
Implement Flow	Not Published	7.0 gpm
Total Hydraulic Flow	11.3 gpm	6.97 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.3 gpm	6.97 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	0	1

PTO Rear	540 rpm	540 rpm
PTO Type	Transmission	Independent (wet multi disc clutch)
Lift Control Type	Position control	Inching
Hitch Lift Capacity	1,203.0 lb (at 24 in)	1,580 lb
Mid-PTO Availability	Optional	Standard
Category, 3-Point Hitch	Category 1	SAE Category I
Hitch Lift Capacity (at 24”)	1,203.0 lb	700 lb

R3 Turf - Rear	33X12.50-16.5	26X12.00-12
R3 Turf - Front	23X8.50-12	18X8.50-10
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	12-16.5	26X12.00-12
R4 Industrial - Front	23X8.50-12	18X8.50-10
R1 Agricultural - Rear	11.2-16	26X12.00-12
R1 Agricultural - Front	7.0-12	18X8.50-10

Coolant Capacity	Not Published	0.87 gal
Crankcase Capacity	Not Published	1.0 gal
Fuel Tank Capacity	6.6 gal	6.7 gal
Front Axle Fluid Capacity	Not Published	0.53 gal
Transmission / Hydraulic System Capacity	Not Published	2.75 gal

Loader Lift Height	87.8 in	73.7 in
Loader Breakout Force	1,843 lb	1,329.0 lb
Quick Attach Loader System	Not Published	Quick Attach & Detach Loader (pinless design); Quick-attach (QA) bucket
Loader Lift Capacity (Full Height)	1,092 lb	1,062.3 lb

Clutch	Dry disc	Wet multi disc
No. of Speeds	6F/2R	Infinite, 2-range
Transmission Type	Gear	Hydrostatic (HST)
Max Travel Speed (Forward)	10.8 mph	10.3 mph
Max Travel Speed (Reverse)	Not Published	7.0 mph
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Differential lock (standard)

Brakes	Wet disc	Wet multi disc
Steering	Hydrostatic power	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	59.8 in	55.12 in
Overall Width	49.2 in	45.98 in
Ground Clearance	13.4 in	6.38 in
Height to Top of ROPS	82.8 in	87.63 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	109.1 in	99.3 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti CX2510 / CK2510 Brush Screen Insert $249.99 Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Kioti CK2510 vs Kioti CS2220: Quick Answers

Which has more horsepower, the Kioti CK2510 or the Kioti CS2220?: The Kioti CK2510 leads on engine hp at 24.5 hp hp, compared to 21 hp hp for the Kioti CS2220.
Which has more PTO horsepower, the Kioti CK2510 or the Kioti CS2220?: The Kioti CK2510 leads on pto hp at 20 hp hp, compared to 16.3 hp hp for the Kioti CS2220.
Which has more loader lift capacity, the Kioti CK2510 or the Kioti CS2220?: The Kioti CK2510 leads on loader lift at 1,092 lb lb, compared to 1,062.3 lb lb for the Kioti CS2220.
Which has more three-point hitch lift capacity, the Kioti CK2510 or the Kioti CS2220?: The Kioti CK2510 leads on 3-pt lift (24 in) at 1,203 lb lb, compared to 700 lb lb for the Kioti CS2220.
