Which has more horsepower, the Bad Boy Tractors 3026 or the Kioti CS2220?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 21 hp hp for the Kioti CS2220.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kioti CS2220?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 16.3 hp hp for the Kioti CS2220.

Which is heavier, the Bad Boy Tractors 3026 or the Kioti CS2220?

The Kioti CS2220 leads on weight at 2,127 lb lb, compared to 1,829.8 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kioti CS2220?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 1,062.3 lb lb for the Kioti CS2220.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kioti CS2220?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 700 lb lb for the Kioti CS2220.

Bad Boy Tractors 3026 vs Kioti CS2220

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 3026 leads 8 categories to 1. Machine pages: Bad Boy Tractors 3026 and Kioti CS2220.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 3026	Kioti CS2220
Engine HP (hp)	▲ 24 hp	21 hp
PTO HP (hp)	▲ 18 hp	16.3 hp
Weight (lb)	1,829.8 lb	▲ 2,127 lb
Loader Lift (lb)	▲ 1,314 lb	1,062.3 lb
3-Pt Lift (24 in) (lb)	▲ 974 lb	700 lb
Lift Height (in)	▲ 86 in	73.7 in
Breakout Force (lbf)	▲ 1,960 lbf	1,329 lbf
Hydraulic Flow (gpm)	▲ 7.4 gpm	7 gpm
Travel Speed (mph)	▲ 14.8 mph	10.3 mph

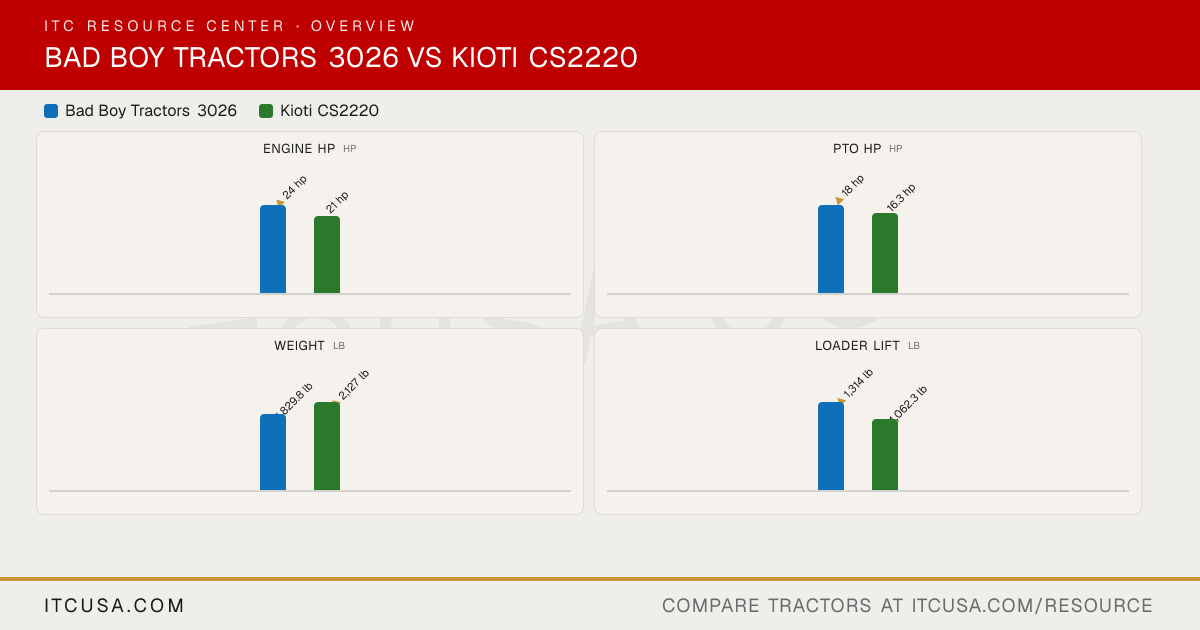

The headline numbers at a glance.

Bad Boy Tractors 3026Kioti CS2220

Engine HPhp

▲24 hp

21 hp

PTO HPhp

▲18 hp

16.3 hp

Weightlb

1,829.8 lb

▲2,127 lb

Loader Liftlb

▲1,314 lb

1,062.3 lb

3-Pt Lift (24 in)lb

▲974 lb

700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KiotiCS2220


PTO Power	18 hp	16.3 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Dry, Element	Not Published
Engine Type	3 CYL, Water Cooled, Diesel	In-line vertical, water-cooled turbo, diesel
Fuel System	Diesel	Injection pump
Displacement	71.7 in³	61.5 in³
Engine Model	A1100N2	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3200 rpm
Cooling System Type	Water Cooled	Water-cooled
Engine Manufacturer	TYM	KIOTI (Daedong)
Engine Power (Gross)	24 hp	21 hp
Engine Emissions Constraints	Final Tier4	U.S. EPA non-road emission regulation

Tractor Weight (Base)	1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H	—
Weight with ROPS and Loader	Not Published	2,127 lb
Weight with Cab and Loader	2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor

Pump Type	Gear type pump with primary and secondary pumps	Gear
Steering Flow	3.1 gpm	Not Published
Implement Flow	4.3 gpm	7.0 gpm
Total Hydraulic Flow	7.4 gpm 28.0 lpm	6.97 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Open center
System Operating Pressure	352.7 lbf/cm² (max operating pressure)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.7 gal per min	6.97 gpm
No. of Optional Remote Valves	Optional (Up To 1)	Not Published
No. of Standard Remote Valves	0	1

PTO Rear	540 / 960 rpm @ 2,600 rpm	540 rpm
PTO Type	Live P.T.O. (6 Spline shaft)	Independent (wet multi disc clutch)
Lift Control Type	Position control	Inching
Hitch Lift Capacity	1,433 lbs	1,580 lb
Mid-PTO Availability	Option: 2,500 rpm (Mid)	Standard
Category, 3-Point Hitch	Cat 1	SAE Category I
Hitch Lift Capacity (at 24”)	974 lb	700 lb

R3 Turf - Rear	Not Published	26X12.00-12
R3 Turf - Front	Not Published	18X8.50-10
Tire Size & Options	IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14X17.5	26X12.00-12
R4 Industrial - Front	25X8.50-14	18X8.50-10
R1 Agricultural - Rear	11.2-20 8PR	26X12.00-12
R1 Agricultural - Front	7-16 6PR	18X8.50-10

Coolant Capacity	1.21 gal	0.87 gal
Crankcase Capacity	0.79 gal	1.0 gal
Fuel Tank Capacity	6.08 gal	6.7 gal
Front Axle Fluid Capacity	0.79 gal	0.53 gal
Transmission / Hydraulic System Capacity	2.90 gal	2.75 gal

Loader Lift Height	86 in.	73.7 in
Loader Breakout Force	1,960 lbs.	1,329.0 lb
Quick Attach Loader System	SSQA	Quick Attach & Detach Loader (pinless design); Quick-attach (QA) bucket
Loader Lift Capacity (Full Height)	1,314 lbs.	1,062.3 lb

Clutch	Dry Single Plate	Wet multi disc
No. of Speeds	3 Range	Infinite, 2-range
Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
Max Travel Speed (Forward)	14.8 mph	10.3 mph
Max Travel Speed (Reverse)	14.8 mph	7.0 mph
Differential Lock & Limited Slip Options	Differential Lock	Differential lock (standard)

Brakes	Wet, Multi-Disc	Wet multi disc
Steering	Hydrostatic	Hydrostatic power steering
Frame Type	Steel frame with cast iron axles	Not Published
Front Axle Type	4 Wheel Drive	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat; flips up and back for rear backhoe operation	Not Published

Wheelbase	65.7"	55.12 in
Overall Width	53.8"	45.98 in
Overall Length	120.7 in for 2024H, 122.9 in for 3026H	—
Ground Clearance	16.4"	6.38 in
Height to Top of ROPS	91.4"	87.63 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	91.4 in - ROPS up (no folded dimension found in available sources)	Not Published
Min. Turn Radius without Brakes	46°	Not Published
Overall Length with 3-Point Hitch	110 in	99.3 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection
