Which has more horsepower, the Bad Boy Tractors 4025 or the Kioti CS2220?

The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 21 hp hp for the Kioti CS2220.

Which is heavier, the Bad Boy Tractors 4025 or the Kioti CS2220?

The Bad Boy Tractors 4025 leads on weight at 3,496.5 lb lb, compared to 2,127 lb lb for the Kioti CS2220.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Kioti CS2220?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,062.3 lb lb for the Kioti CS2220.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Kioti CS2220?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 700 lb lb for the Kioti CS2220.

Bad Boy Tractors 4025 vs Kioti CS2220

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Bad Boy Tractors 4025 leads 7 categories to 0. Machine pages: Bad Boy Tractors 4025 and Kioti CS2220.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4025	Kioti CS2220
Engine HP (hp)	▲ 24.5 hp	21 hp
PTO HP (hp)	—	16.3 hp
Weight (lb)	▲ 3,496.5 lb	2,127 lb
Loader Lift (lb)	▲ 2,200 lb	1,062.3 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	700 lb
Lift Height (in)	▲ 104 in	73.7 in
Breakout Force (lbf)	▲ 3,660 lbf	1,329 lbf
Hydraulic Flow (gpm)	▲ 11.5 gpm	7 gpm
Travel Speed (mph)	—	10.3 mph

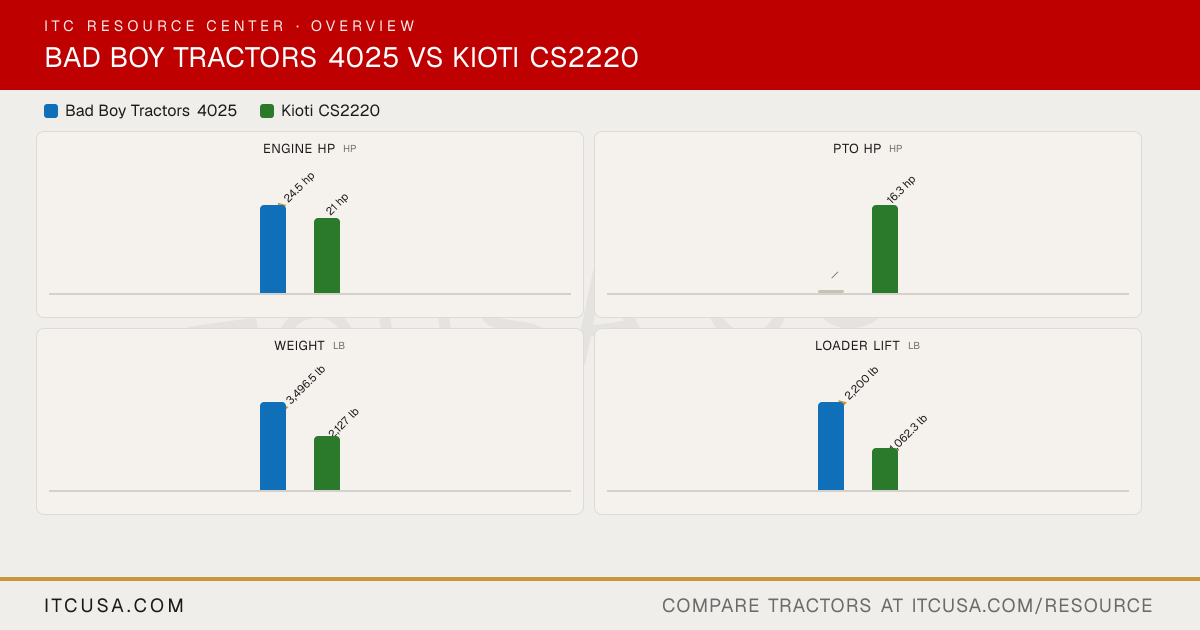

The headline numbers at a glance.

Bad Boy Tractors 4025Kioti CS2220

Engine HPhp

▲24.5 hp

21 hp

PTO HPhp

—

16.3 hp

Weightlb

▲3,496.5 lb

2,127 lb

Loader Liftlb

▲2,200 lb

1,062.3 lb

3-Pt Lift (24 in)lb

▲2,425 lb

700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	KiotiCS2220


PTO Power	540 rpm, 1st stage	16.3 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Present (standard equipment)	Not Published
Engine Type	Vertical, water cooled 4-cycle, diesel engine	In-line vertical, water-cooled turbo, diesel
Fuel System	Diesel fuel system with fuel injection pump	Injection pump
Displacement	104.6 in³	61.5 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	3200 rpm
Cooling System Type	Pressurized Radiator	Water-cooled
Engine Manufacturer	A1700N6, A1700N5, A1700N4	KIOTI (Daedong)
Engine Power (Gross)	24.5 hp	21 hp
Engine Emissions Constraints	Not Published	U.S. EPA non-road emission regulation

Tractor Weight (Base)	3,496.5 lb (3,497 lbs), 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Published	2,127 lb
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor

Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Gear
Steering Flow	4.0 gpm	Not Published
Implement Flow	7.5 gpm	7.0 gpm
Total Hydraulic Flow	11.5 gpm (4.0 + 7.5)	6.97 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	463 lbf/cm² maximum	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.5 gpm	6.97 gpm
No. of Optional Remote Valves	Optional (Up to 2)	Not Published
No. of Standard Remote Valves	Not Published	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent (wet multi disc clutch)
Lift Control Type	Position control type	Inching
Hitch Lift Capacity	2,425 lb @ 24 in behind lift point	1,580 lb
Mid-PTO Availability	Not Published	Standard
Category, 3-Point Hitch	Category 1	SAE Category I
Hitch Lift Capacity (at 24”)	2,425 lb @ 24 in behind lift point	700 lb

R3 Turf - Rear	Not Published	26X12.00-12
R3 Turf - Front	Not Published	18X8.50-10
Tire Size & Options	OEM website lists IND tires 25X8.50-14 / 15-19.5; Operator Manual spec based on 8.0-16 / 12.4-24	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5	26X12.00-12
R4 Industrial - Front	25X8.50-14	18X8.50-10
R1 Agricultural - Rear	12.4-24 6PR	26X12.00-12
R1 Agricultural - Front	8.0-16 4PR	18X8.50-10

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	0.87 gal
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	1.0 gal
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	6.7 gal
Front Axle Fluid Capacity	Not Published	0.53 gal
Transmission / Hydraulic System Capacity	HST: 9.77 gal	2.75 gal

Loader Lift Height	104 in	73.7 in
Loader Breakout Force	3,660 lb	1,329.0 lb
Quick Attach Loader System	SSQA	Quick Attach & Detach Loader (pinless design); Quick-attach (QA) bucket
Loader Lift Capacity (Full Height)	2,200 lb (pivot pin)	1,062.3 lb

Clutch	None (HST)	Wet multi disc
No. of Speeds	3 Range	Infinite, 2-range
Transmission Type	HST (Hydrostatic Transmission) with shuttle type	Hydrostatic (HST)
Max Travel Speed (Forward)	Not Published	10.3 mph
Max Travel Speed (Reverse)	Not Published	7.0 mph
Differential Lock & Limited Slip Options	Differential lock	Differential lock (standard)

Brakes	Wet, Multi-Disc	Wet multi disc
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.8 in (65.79 in.)	55.12 in
Overall Width	57.1 in (57.13 in.) [ROPS Model], 55.6 in (55.63 in.) [Cabin Model]	45.98 in
Overall Length	134.9 in (134.88 in.)	—
Ground Clearance	13.2 in (13.19 in.) [ROPS Model], 13.5 in (13.50 in.) [Cabin Model]	6.38 in
Height to Top of ROPS	104.1 in (104.06 in.) [ROPS Model], 88.9 in (88.9 in.) [Cabin Model]	87.63 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	99.3 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection
