| Engine Manufacturer | KIOTI (Daedong) | KIOTI |
|---|
| Engine Model | CK3510: 3H-TM4A; CK3510 HST: 3H-TH4A | CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2 |
|---|
| Engine Type | 3 cylinder, in-line vertical, water-cooled 4-cycle diesel, CRDI | 3-cylinder, in-line, liquid-cooled diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 111.4 in³ | 111.4 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|

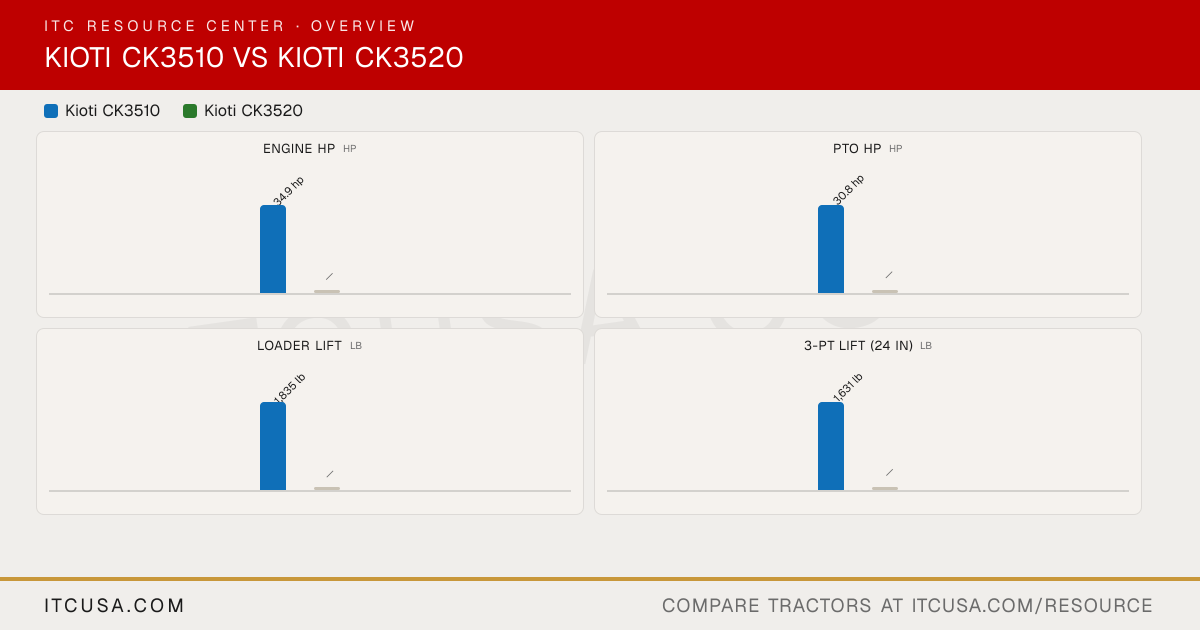

| Engine Power (Gross) | 34.9 hp | 34.9 hp |
|---|
| PTO Power | CK3510: 31.8 hp; CK3510 HST: 30.8 hp | CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Water-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Dry element |
|---|
| Fuel System | Common rail direct injection | Not Published |
|---|
| Alternator | 45 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Gear | Gear |
|---|
| Implement Flow | Not Published | CK3520, CK3520H: 7.14 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 6.86 gpm |
|---|
| Steering Flow | Not Published | CK3520, CK3520H: 4.59 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 4.46 gpm |
|---|
| Total Hydraulic Flow | 11.7 gpm | CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm |
|---|
| Overall Hydraulic Pump Flow | 11.7 gpm | CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 0 (2 optional) | CK3520, CK3520H: 0; CK3520SE, CK3520SEH, CK3520SEH CAB: 2 |
|---|
| No. of Optional Remote Valves | 2 (4 ports) | CK3520, CK3520H: 2 |
|---|
|
|---|
| Fuel Tank Capacity | 9.0 gal | 9.0 gal |
|---|
| Coolant Capacity | Not Published | 0.89 gal |
|---|
| Crankcase Capacity | Not Published | 1.6 gal |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 5.8 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 1.6 gal |
|---|
|
|---|
| PTO Type | Live | CK3520, CK3520H: Live; CK3520SE, CK3520SEH, CK3520SEH CAB: Independent |
|---|
| PTO Rear | 540 rpm | 540 rpm (1-3/8 in, 6 splines) |
|---|
| Mid-PTO Availability | Optional, 2,000 rpm | Optional, 2,000 rpm |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 1,631 lb at 24 in | 2,270 lb |
|---|
| Hitch Lift Capacity (at 24”) | 1,631 lb | 1,631 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | CK3510: Manual; CK3510 HST: Hydrostatic | CK3520: Manual; CK3520H, CK3520SEH, CK3520SEH CAB: Hydrostatic; CK3520SE: Synchro shuttle |
|---|
| No. of Speeds | CK3510: 9F/3R; CK3510 HST: Infinite, 3 range | CK3520: 9F/3R; CK3520H, CK3520SEH, CK3520SEH CAB: Infinite, 3 range; CK3520SE: 12F/12R |
|---|
| Max Travel Speed (Forward) | CK3510: 14.62 mph; CK3510 HST: 14.85 mph | CK3520: 14.64 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 14.88 mph; CK3520SE: 15.53 mph |
|---|
| Max Travel Speed (Reverse) | CK3510: 9.55 mph; CK3510 HST: 13.37 mph | CK3520: 9.56 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 10.41 mph; CK3520SE: 15.14 mph |
|---|
| Clutch | CK3510: Dry dual stage; CK3510 HST: Dry single stage | CK3520: Dry dual stage; CK3520H, CK3520SE: Dry single stage; CK3520SEH, CK3520SEH CAB: None (hydrostatic) |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock (standard) | Rear differential lock (standard) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Wet multi-disc | Wet multi-disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | 4WD, mechanical engagement (standard) | 4WD, manual engagement |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | 1,433 lb |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 120.9 in | 120.9 in |
|---|
| Overall Width | 55.1 in | 54.5 in |
|---|
| Wheelbase | 65.7 in | 65.7 in |
|---|
| Ground Clearance | 13.4 in | 13.4 in |
|---|
| Min. Turn Radius without Brakes | 8.0 ft (with brake applied) | 107.5 in |
|---|
| Height to Top of ROPS | 99.2 in | 92.9 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 91.7 in | 92.5 in |
|---|
|
|---|
| Tractor Weight (Base) | CK3510: 2,679 lb; CK3510 HST: 2,734 lb | CK3520: 2,679 lb; CK3520H: 2,734 lb; CK3520SE: 2,906 lb; CK3520SEH: 2,921 lb; CK3520SEH CAB: 3,397 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5) | Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5) |
|---|
| R1 Agricultural - Front | 7-16 | 7-16 |
|---|
| R1 Agricultural - Rear | 11.2-24 | 11.2-24 |
|---|
| R3 Turf - Front | 28x8.5-15/6 | 28x8.5-15/6 |
|---|
| R3 Turf - Rear | 41x14-20/4 | 41x14-20/4 |
|---|
| R4 Industrial - Front | 27x8.5-15 | 27x8.5-15 |
|---|
| R4 Industrial - Rear | 15-19.5 | 15-19.5 |
|---|
|
|---|
| Quick Attach Loader System | Quick attach (QA) bucket, 60 in or 66 in | Not Published |
|---|
| Loader Model | KL4010; KL4030 | KL4030; KL4030C |
|---|
| Loader Lift Height | 98.4 in (KL4010 and KL4030 loaders) | 98.4 in (KL4030 and KL4030C loaders) |
|---|
| Loader Lift Capacity (Full Height) | 1,835 lb (KL4010 and KL4030 loaders) | KL4030: 1,835 lb; KL4030C: 1,969 lb |
|---|
| Loader Breakout Force | 3,464 lb (KL4010 and KL4030 loaders) | KL4030: 3,464 lb; KL4030C: 2,989 lb |
|---|
|
|---|
| Warranty Length & Coverage | Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor | 24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor |
|---|
|
|---|
