Kioti CK4020 vs Kubota LX4020HSDC

Across 8 measurable specs, the Kioti CK4020 leads 5 categories to 3. Machine pages: Kioti CK4020 and Kubota LX4020HSDC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCK4020	KubotaLX4020HSDC

▶Engine
Engine Manufacturer	KIOTI	Kubota
Engine Model	CK4020: 3H-TM4-U; CK4020H: 3H-TH4-U; CK4020SE, CK4020SEH, CK4020SEH CAB: 3H-TM4-U2 / 3H-TH4-U2	V1505-CR-TE5-D40Q3
Engine Type	3-cylinder, in-line, liquid-cooled diesel	Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
No. of Cylinders	3	4
Displacement	111.4 in³	91.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	39.6 hp	39.8 hp
PTO Power	CK4020, CK4020SE: 34.8 hp; CK4020H, CK4020SEH, CK4020SEH CAB: 33.3 hp	31.2 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Pressurized radiator
Air Cleaner	Dry element	6 in paper filter (with dual element)
Fuel System	Not Published	Direct injection
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Gear	Dual pump
Implement Flow	CK4020, CK4020H: 7.14 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 6.86 gpm	5.4 gpm
Steering Flow	CK4020, CK4020H: 4.59 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 4.46 gpm	4.1 gpm
Total Hydraulic Flow	CK4020, CK4020H: 11.73 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 11.33 gpm	9.5 gpm
Overall Hydraulic Pump Flow	CK4020, CK4020H: 11.73 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 11.33 gpm	9.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	CK4020, CK4020H: 0; CK4020SE, CK4020SEH, CK4020SEH CAB: 2	0
No. of Optional Remote Valves	CK4020, CK4020H: 2	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	9.0 gal	8.5 gal
Coolant Capacity	0.89 gal	5.7 qt
Crankcase Capacity	1.6 gal	5.0 qt
Transmission / Hydraulic System Capacity	5.8 gal	5.5 gal
Front Axle Fluid Capacity	1.6 gal	4.8 qt
▶PTO & Hitch
PTO Type	CK4020, CK4020H: Live; CK4020SE, CK4020SEH, CK4020SEH CAB: Independent	Independent
PTO Rear	540 rpm (1-3/8 in, 6 splines)	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	2460 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,270 lb	2535 lb
Hitch Lift Capacity (at 24”)	1,631 lb	1962 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	CK4020: Manual; CK4020H, CK4020SEH, CK4020SEH CAB: Hydrostatic; CK4020SE: Synchro shuttle	Hydrostatic transmission
No. of Speeds	CK4020: 9F/3R; CK4020H, CK4020SEH, CK4020SEH CAB: Infinite, 3 range; CK4020SE: 12F/12R	3 ranges
Max Travel Speed (Forward)	CK4020: 14.64 mph; CK4020H, CK4020SEH, CK4020SEH CAB: 14.88 mph; CK4020SE: 15.53 mph	17.0 mph
Max Travel Speed (Reverse)	CK4020: 9.56 mph; CK4020H, CK4020SEH, CK4020SEH CAB: 10.41 mph; CK4020SE: 15.14 mph	13.0 mph
Clutch	CK4020: Dry dual stage; CK4020H, CK4020SE: Dry single stage; CK4020SEH, CK4020SEH CAB: None (hydrostatic)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Multi-plate wet disk
Seat Suspension & Adjustability	Not Published	Seat Type: Deluxe; Seat Suspension: Adjustable
Front Axle Type	4WD, manual engagement	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	120.9 in	116.1 in
Overall Width	54.5 in	53.7 in
Wheelbase	65.7 in	66.7 in
Ground Clearance	13.4 in	8.9 in
Min. Turn Radius without Brakes	107.5 in	7.5 ft (with brake applied)
Height to Top of ROPS	92.9 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	92.5 in	85.6 in
▶Weight
Tractor Weight (Base)	CK4020: 2,679 lb; CK4020H: 2,734 lb; CK4020SE: 2,906 lb; CK4020SEH: 2,921 lb; CK4020SEH CAB: 3,397 lb	2624 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	7-16	180/85D12
R1 Agricultural - Rear	11.2-24	320/85D16
R3 Turf - Front	28x8.5-15/6	24X8.50-14
R3 Turf - Rear	41x14-20/4	13.6-16
R4 Industrial - Front	27x8.5-15	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	15-19.5	14-17.5 or 15-19.5
▶Loader & Attachments
Quick Attach Loader System	Not Published	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	KL4030; KL4030C	LA545
Loader Lift Height	98.4 in (KL4030 and KL4030C loaders)	87.6 in
Loader Lift Capacity (Full Height)	KL4030: 1,835 lb; KL4030C: 1,969 lb	1100 lb
Loader Breakout Force	KL4030: 3,464 lb; KL4030C: 2,989 lb	Not Published
▶Warranty
Warranty Length & Coverage	24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	None tagged yet

Find a KIOTI dealer near you→Find a Kubota dealer near you→

Kioti CK4020 vs Kubota LX4020HSDC: Quick Answers

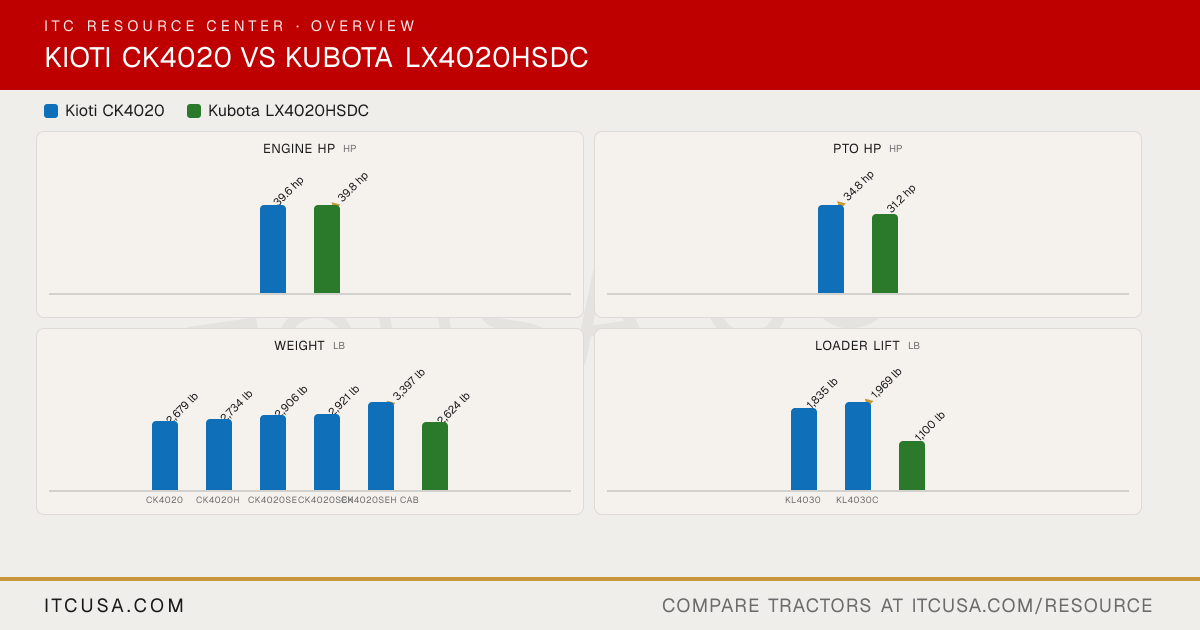

Which has more horsepower, the Kioti CK4020 or the Kubota LX4020HSDC?

The Kubota LX4020HSDC leads on engine hp at 39.8 hp hp, compared to 39.6 hp hp for the Kioti CK4020.

Which has more PTO horsepower, the Kioti CK4020 or the Kubota LX4020HSDC?

The Kioti CK4020 leads on pto hp at 34.8 hp hp, compared to 31.2 hp hp for the Kubota LX4020HSDC.

Which is heavier, the Kioti CK4020 or the Kubota LX4020HSDC?

The Kioti CK4020 leads on weight at 3,397 lb lb, compared to 2,624 lb lb for the Kubota LX4020HSDC.

Which has more loader lift capacity, the Kioti CK4020 or the Kubota LX4020HSDC?

The Kioti CK4020 leads on loader lift at 1,969 lb lb, compared to 1,100 lb lb for the Kubota LX4020HSDC.

Which has more three-point hitch lift capacity, the Kioti CK4020 or the Kubota LX4020HSDC?

The Kubota LX4020HSDC leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,631 lb lb for the Kioti CK4020.
