Kioti CK4020 vs Massey Ferguson MF 1M.40

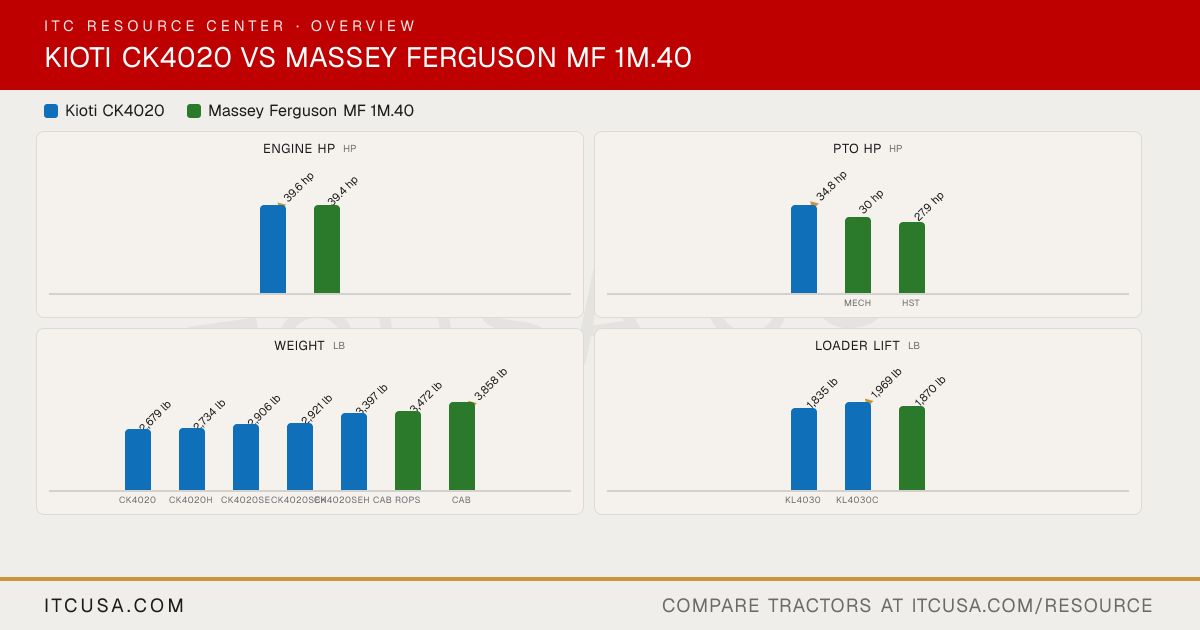

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Kioti CK4020, 4 to the Massey Ferguson MF 1M.40. Machine pages: Kioti CK4020 and Massey Ferguson MF 1M.40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCK4020	Massey FergusonMF 1M.40

▶Engine
Engine Manufacturer	KIOTI	Iseki
Engine Model	CK4020: 3H-TM4-U; CK4020H: 3H-TH4-U; CK4020SE, CK4020SEH, CK4020SEH CAB: 3H-TM4-U2 / 3H-TH4-U2	Not Published
Engine Type	3-cylinder, in-line, liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	39.6 hp	39.4 hp
PTO Power	CK4020, CK4020SE: 34.8 hp; CK4020H, CK4020SEH, CK4020SEH CAB: 33.3 hp	Mech: 30 hp; HST: 27.9 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Dry element	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Gear	Two gear-type pumps
Implement Flow	CK4020, CK4020H: 7.14 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 6.86 gpm	12.6 gpm
Steering Flow	CK4020, CK4020H: 4.59 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 4.46 gpm	7.0 gpm
Total Hydraulic Flow	CK4020, CK4020H: 11.73 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 11.33 gpm	19.6 gpm (12.6 + 7.0, computed)
Overall Hydraulic Pump Flow	CK4020, CK4020H: 11.73 gpm; CK4020SE, CK4020SEH, CK4020SEH CAB: 11.33 gpm	19.6 gpm (12.6 + 7.0, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	CK4020, CK4020H: 0; CK4020SE, CK4020SEH, CK4020SEH CAB: 2	Not Published
No. of Optional Remote Valves	CK4020, CK4020H: 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	9.0 gal	10.6 gal
Coolant Capacity	0.89 gal	Not Published
Crankcase Capacity	1.6 gal	Not Published
Transmission / Hydraulic System Capacity	5.8 gal	Not Published
Front Axle Fluid Capacity	1.6 gal	Not Published
▶PTO & Hitch
PTO Type	CK4020, CK4020H: Live; CK4020SE, CK4020SEH, CK4020SEH CAB: Independent	Independent with SoftStart electronic modulation
PTO Rear	540 rpm (1-3/8 in, 6 splines)	540 rpm, 1.375 in
Mid-PTO Availability	Optional, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,270 lb	2,800 lb
Hitch Lift Capacity (at 24”)	1,631 lb	2,535 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	CK4020: Manual; CK4020H, CK4020SEH, CK4020SEH CAB: Hydrostatic; CK4020SE: Synchro shuttle	Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)
No. of Speeds	CK4020: 9F/3R; CK4020H, CK4020SEH, CK4020SEH CAB: Infinite, 3 range; CK4020SE: 12F/12R	Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	CK4020: 14.64 mph; CK4020H, CK4020SEH, CK4020SEH CAB: 14.88 mph; CK4020SE: 15.53 mph	Not Published
Max Travel Speed (Reverse)	CK4020: 9.56 mph; CK4020H, CK4020SEH, CK4020SEH CAB: 10.41 mph; CK4020SE: 15.14 mph	Not Published
Clutch	CK4020: Dry dual stage; CK4020H, CK4020SE: Dry single stage; CK4020SEH, CK4020SEH CAB: None (hydrostatic)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet multi-disc	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD, manual engagement	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	120.9 in	122.0 in
Overall Width	54.5 in	67.5 in
Wheelbase	65.7 in	Not Published
Ground Clearance	13.4 in	14.4 in
Min. Turn Radius without Brakes	107.5 in	Not Published
Height to Top of ROPS	92.9 in	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	92.5 in	91.3 in
▶Weight
Tractor Weight (Base)	CK4020: 2,679 lb; CK4020H: 2,734 lb; CK4020SE: 2,906 lb; CK4020SEH: 2,921 lb; CK4020SEH CAB: 3,397 lb	ROPS: 3,472 lb; Cab: 3,858 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)	Not Published
R1 Agricultural - Front	7-16	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	28x8.5-15/6	Not Published
R3 Turf - Rear	41x14-20/4	Not Published
R4 Industrial - Front	27x8.5-15	Not Published
R4 Industrial - Rear	15-19.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Not Published	Skid steer
Loader Model	KL4030; KL4030C	FL2611
Loader Lift Height	98.4 in (KL4030 and KL4030C loaders)	FL2611: 100 in
Loader Lift Capacity (Full Height)	KL4030: 1,835 lb; KL4030C: 1,969 lb	FL2611: 1,870 lb
Loader Breakout Force	KL4030: 3,464 lb; KL4030C: 2,989 lb	FL2611: 2,950 lb
▶Warranty
Warranty Length & Coverage	24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor	Not Published
▶ITC Company Accessories
Accessories that fit	Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	None tagged yet

Find a KIOTI dealer near you→Find a dealer near you→

Kioti CK4020 vs Massey Ferguson MF 1M.40: Quick Answers

Which has more horsepower, the Kioti CK4020 or the Massey Ferguson MF 1M.40?

The Kioti CK4020 leads on engine hp at 39.6 hp hp, compared to 39.4 hp hp for the Massey Ferguson MF 1M.40.

Which has more PTO horsepower, the Kioti CK4020 or the Massey Ferguson MF 1M.40?

The Kioti CK4020 leads on pto hp at 34.8 hp hp, compared to 30 hp hp for the Massey Ferguson MF 1M.40.

Which is heavier, the Kioti CK4020 or the Massey Ferguson MF 1M.40?

The Massey Ferguson MF 1M.40 leads on weight at 3,858 lb lb, compared to 3,397 lb lb for the Kioti CK4020.

Which has more loader lift capacity, the Kioti CK4020 or the Massey Ferguson MF 1M.40?

The Kioti CK4020 leads on loader lift at 1,969 lb lb, compared to 1,870 lb lb for the Massey Ferguson MF 1M.40.

Which has more three-point hitch lift capacity, the Kioti CK4020 or the Massey Ferguson MF 1M.40?

The Massey Ferguson MF 1M.40 leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 1,631 lb lb for the Kioti CK4020.
