Kioti CS2220 vs Kubota B7500

Across 8 measurable specs, the Kioti CS2220 leads 4 categories to 2 (2 tied). Machine pages: Kioti CS2220 and Kubota B7500.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCS2220	KubotaB7500

▶Engine
Engine Manufacturer	KIOTI (Daedong)	Kubota
Engine Model	3C100LWH-U3	D1005-E-D16
Engine Type	In-Line Vertical, Water-Cooled 4-Cycle Diesel (3-cylinder)	Diesel, 3-cylinder, liquid-cooled
No. of Cylinders	3	3
Displacement	61.5 in³	61.1 in³
Rated Engine Speed	3200 rpm	2600 rpm
Engine Power (Gross)	21 hp	21 hp
PTO Power	16.3 hp	Gear: 17 hp; Hydro: 16 hp
Engine Emissions Constraints	U.S. EPA non-road emission regulation	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dual paper element
Fuel System	Injection pump	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear	Not Published
Implement Flow	7.0 gpm	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	7.0 gpm	7 gpm
Overall Hydraulic Pump Flow	7.0 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.7 gal	5 gal
Coolant Capacity	0.87 gal	4 qt
Crankcase Capacity	1.0 gal	3.2 qt
Transmission / Hydraulic System Capacity	2.75 gal	Not Published
Front Axle Fluid Capacity	0.53 gal	3.4 qt
▶PTO & Hitch
PTO Type	Independent	Gear: transmission-driven; Hydro: independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Available (2,200 rpm)	Mid-PTO, 2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,580 lb	1356 lb
Hitch Lift Capacity (at 24”)	700 lb	1058 lb
Lift Control Type	Position	Directional control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	6-speed gear; hydrostatic
No. of Speeds	Infinite, 2 range (High/Low)	Gear: 6 forward, 2 reverse; Hydro: infinite (2-range)
Max Travel Speed (Forward)	9.6 mph	Not Published
Max Travel Speed (Reverse)	6.6 mph	Not Published
Clutch	None (hydrostatic transmission)	Dry disc (gear)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Two-post ROPS
Steering	Hydrostatic power steering	Power steering
Brakes	Wet multi disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical 4WD	Spur gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	99.3 in	90.4 in
Overall Width	45.9 in	42.4 in
Wheelbase	55.1 in	59 in
Ground Clearance	6.4 in	12 in
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	Not Published
Height to Top of ROPS	87.6 in	76.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1,554 lb	Gear: 1323 lb; Hydro: 1367 lb
Weight with ROPS and Loader	2,127 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear	Standard farm 6-12 front, 9.5-16 rear
R1 Agricultural - Front	18x8.5-10	6-12
R1 Agricultural - Rear	26x12.00-12	9.5-16
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12.00-12	Not Published
R4 Industrial - Front	18x8.5-10	Not Published
R4 Industrial - Rear	26x12.00-12	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach (QA) bucket, 48 in	LA272 and LA302 loaders offered
Loader Model	SL2420	LA272; LA302
Loader Lift Height	SL2420: 73.7 in	LA272: 69.7 in; LA302: 69.5 in
Loader Lift Capacity (Full Height)	SL2420: 1,062.3 lb	LA272: 685 lb; LA302: 770 lb
Loader Breakout Force	SL2420: 1,329.0 lb	LA272: 1003 lbf; LA302: 1120 lbf
▶Warranty
Warranty Length & Coverage	Tractors (Non-Commercial Application): 24 months, unlimited hours, parts & labor; Non-commercial powertrain (engine and driveline) on qualifying tractors: 72 months, unlimited hours, parts & labor	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Find a KIOTI dealer near you→Find a Kubota dealer near you→

Kioti CS2220 vs Kubota B7500: Quick Answers

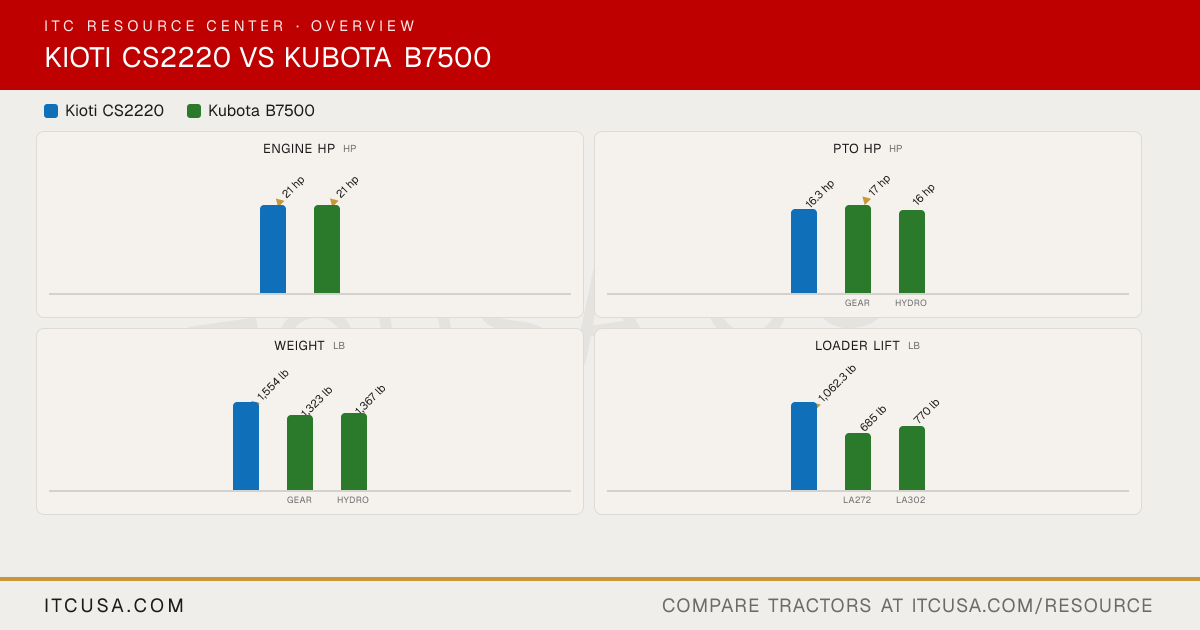

Which has more horsepower, the Kioti CS2220 or the Kubota B7500?

They are effectively tied: both machines are rated at 21 hp hp for engine hp.

Which has more PTO horsepower, the Kioti CS2220 or the Kubota B7500?

The Kubota B7500 leads on pto hp at 17 hp hp, compared to 16.3 hp hp for the Kioti CS2220.

Which is heavier, the Kioti CS2220 or the Kubota B7500?

The Kioti CS2220 leads on weight at 1,554 lb lb, compared to 1,367 lb lb for the Kubota B7500.

Which has more loader lift capacity, the Kioti CS2220 or the Kubota B7500?

The Kioti CS2220 leads on loader lift at 1,062.3 lb lb, compared to 770 lb lb for the Kubota B7500.

Which has more three-point hitch lift capacity, the Kioti CS2220 or the Kubota B7500?

The Kubota B7500 leads on 3-pt lift (24 in) at 1,058 lb lb, compared to 700 lb lb for the Kioti CS2220.
