Kioti CS2510 vs Kioti CS2530

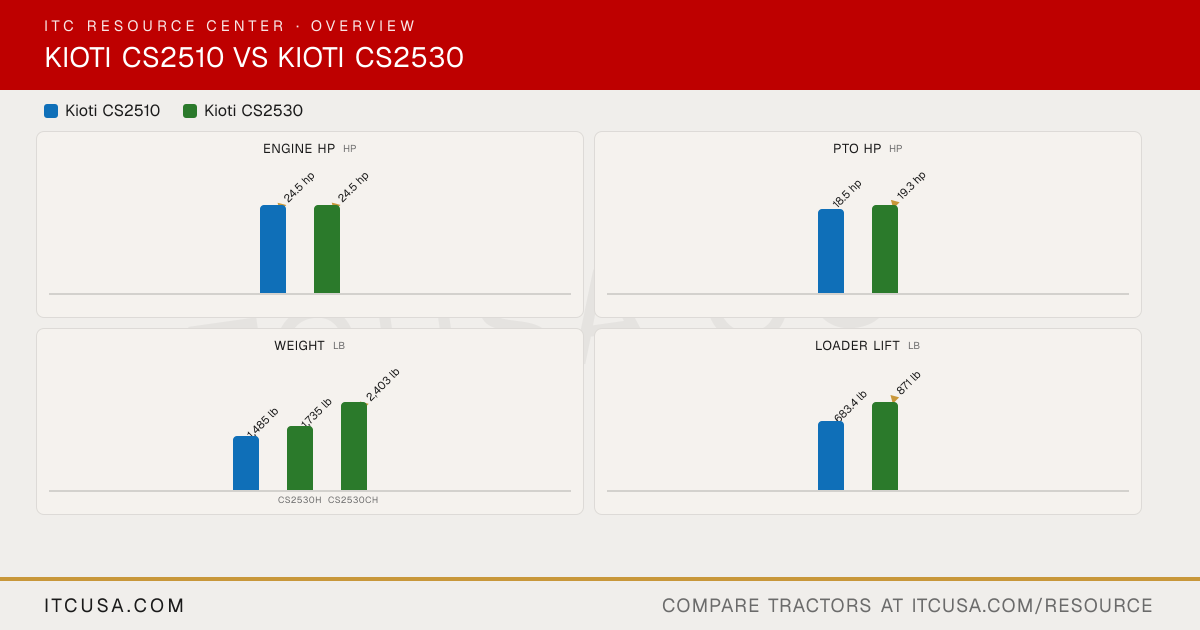

Across 9 measurable specs, the Kioti CS2530 leads 4 categories to 2 (3 tied). Machine pages: Kioti CS2510 and Kioti CS2530.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCS2510	KiotiCS2530

▶Engine
Engine Manufacturer	KIOTI	Daedong
Engine Model	3C100LFH-U2	CS2530H: 3L123-TH4C; CS2530CH: 3L123-TH4A
Engine Type	In-Line Vertical, Water-Cooled 4-Cycle Diesel (3-cylinder)	3-cylinder, liquid-cooled inline diesel
No. of Cylinders	3	3
Displacement	61.5 in³	75.2 in³
Rated Engine Speed	3200 rpm	3000 rpm
Engine Power (Gross)	24.5 hp	24.5 hp
PTO Power	18.5 hp	19.3 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry type (cyclone type)	Not Published
Fuel System	Injection pump type: Bosch; nozzle type: Throttle	Indirect injection
Alternator	40 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear	Not Published
Implement Flow	Not Published	4.9 gpm
Steering Flow	Not Published	2.0 gpm
Total Hydraulic Flow	6.5 gpm	6.97 gpm
Overall Hydraulic Pump Flow	6.5 gpm	6.97 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.7 gal	6.7 gal
Coolant Capacity	3.7 qt	0.53 gal
Crankcase Capacity	3.2 qt	0.98 gal
Transmission / Hydraulic System Capacity	3.4 gal	2.75 gal
Front Axle Fluid Capacity	0.5 gal	0.53 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Available (2,200 rpm)	Available (2,200 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,580 lb	1,580 lb
Hitch Lift Capacity (at 24”)	700 lb	700 lb
Lift Control Type	Position	Position
▶Transmission & Drivetrain
Transmission Type	HST (hydrostatic)	Hydrostatic (HST)
No. of Speeds	Infinite, 2 range (High/Low)	Infinite, 2 range (High/Low)
Max Travel Speed (Forward)	10.3 mph	8.99 mph
Max Travel Speed (Reverse)	7.0 mph	6.15 mph
Clutch	None (hydrostatic transmission)	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disk type	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical 4WD	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	99.3 in	102.9 in
Overall Width	46.7 in	48.8 in
Wheelbase	55.1 in	55.1 in
Ground Clearance	6.4 in	6.4 in
Min. Turn Radius without Brakes	8.33 ft (with brake applied)	8.33 ft
Height to Top of ROPS	87.6 in	87.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	83 in
▶Weight
Tractor Weight (Base)	1,485 lb	CS2530H: 1,735 lb; CS2530CH: 2,403 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear	R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear; R3 Turf: 18x8.5-10 front, 26x12.00-12 rear
R1 Agricultural - Front	18x8.5-10	18x8.5-10
R1 Agricultural - Rear	26x12.00-12	Not Published
R3 Turf - Front	18x8.5-10	18x8.5-10
R3 Turf - Rear	26x12.00-12	26x12.00-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12.00-12	26x12.00-12
▶Loader & Attachments
Quick Attach Loader System	Quick attach (QA) bucket, 48 in	Quick attach bucket, 48 in
Loader Model	SL2410	SL2530
Loader Lift Height	SL2410: 70.9 in	SL2530: 70.9 in
Loader Lift Capacity (Full Height)	SL2410: 683.4 lb	SL2530: 871 lb
Loader Breakout Force	SL2410: 1,435.2 lb	SL2530: 1,299 lb
▶Warranty
Warranty Length & Coverage	Tractors (Non-Commercial Application): 24 months, unlimited hours, parts & labor; Non-commercial powertrain (engine and driveline) on qualifying tractors: 72 months, unlimited hours, parts & labor	Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	None tagged yet

Find a KIOTI dealer near you→

Kioti CS2510 vs Kioti CS2530: Quick Answers

Which has more horsepower, the Kioti CS2510 or the Kioti CS2530?

They are effectively tied: both machines are rated at 24.5 hp hp for engine hp.

Which has more PTO horsepower, the Kioti CS2510 or the Kioti CS2530?

The Kioti CS2530 leads on pto hp at 19.3 hp hp, compared to 18.5 hp hp for the Kioti CS2510.

Which is heavier, the Kioti CS2510 or the Kioti CS2530?

The Kioti CS2530 leads on weight at 2,403 lb lb, compared to 1,485 lb lb for the Kioti CS2510.

Which has more loader lift capacity, the Kioti CS2510 or the Kioti CS2530?

The Kioti CS2530 leads on loader lift at 871 lb lb, compared to 683.4 lb lb for the Kioti CS2510.

Which has more three-point hitch lift capacity, the Kioti CS2510 or the Kioti CS2530?

They are effectively tied: both machines are rated at 700 lb lb for 3-pt lift (24 in).
