Kioti CS2520 vs Massey Ferguson MF 1GC.25B

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Kioti CS2520 leads 3 categories to 2 (2 tied). Machine pages: Kioti CS2520 and Massey Ferguson MF 1GC.25B.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti CS2520	Massey Ferguson MF 1GC.25B
Engine HP (hp)	24.5 hp	24.5 hp
PTO HP (hp)	18.5 hp	18.5 hp
Weight (lb)	1,554 lb	n/a
Loader Lift (lb)	▲ 1,062.3 lb	922 lb
3-Pt Lift (24 in) (lb)	▲ 700 lb	661 lb
Lift Height (in)	73.7 in	▲ 74 in
Breakout Force (lbf)	1,329 lbf	▲ 1,392 lbf
Hydraulic Flow (gpm)	▲ 7 gpm	6.8 gpm
Travel Speed (mph)	9.6 mph	n/a

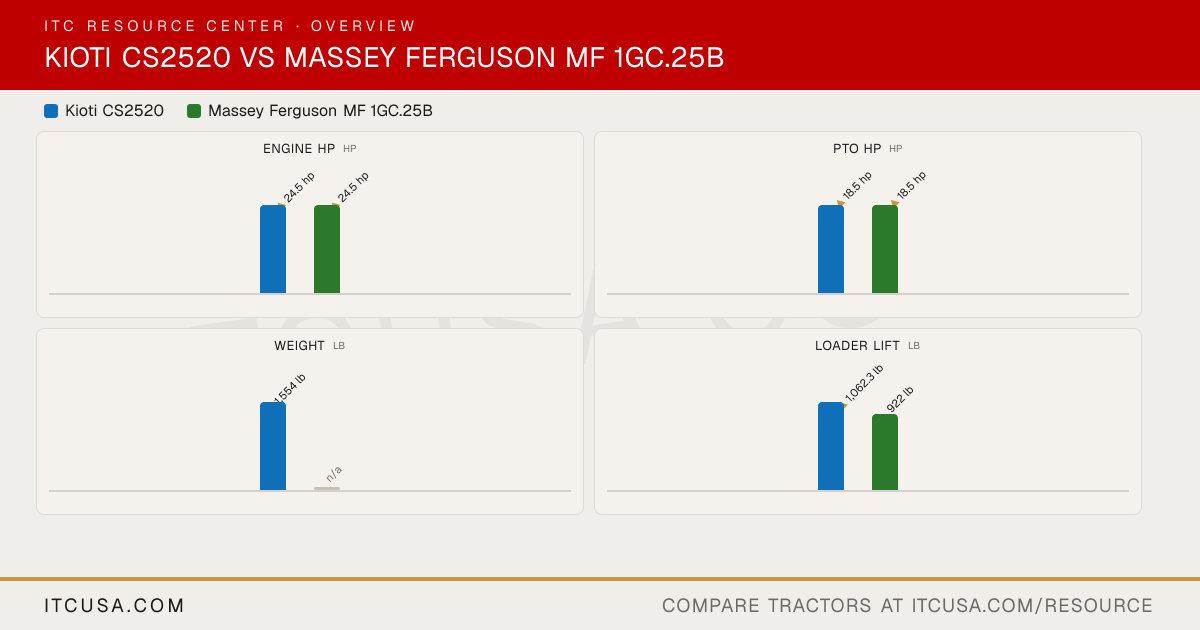

The headline numbers at a glance.

Kioti CS2520Massey Ferguson MF 1GC.25B

Engine HPhp

▲24.5 hp

PTO HPhp

▲18.5 hp

Weightlb

1,554 lb

n/a

Loader Liftlb

▲1,062.3 lb

922 lb

3-Pt Lift (24 in)lb

▲700 lb

661 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCS2520	Massey FergusonMF 1GC.25B


Engine Manufacturer	KIOTI (Daedong)	Iseki
Engine Model	3C100LFH-U2	Not Published
Engine Type	In-Line Vertical, Water-Cooled 4-Cycle Diesel (3-cylinder)	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	61.5 in³	68.5 in³
Rated Engine Speed	3200 rpm	3000 rpm
Engine Power (Gross)	24.5 hp	24.5 hp
PTO Power	18.5 hp	18.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Not Published	Liquid cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Gear	Not Published
Implement Flow	7.0 gpm	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	7.0 gpm	6.8 gpm
Overall Hydraulic Pump Flow	7.0 gpm	6.8 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	6.7 gal	6.6 gal
Coolant Capacity	0.87 gal	Not Published
Crankcase Capacity	1.0 gal	Not Published
Transmission / Hydraulic System Capacity	2.75 gal	Not Published
Front Axle Fluid Capacity	0.53 gal	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm, 1.375 in 6-spline
Mid-PTO Availability	Available (2,200 rpm)	Independent, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,580 lb	1,191 lb
Hitch Lift Capacity (at 24”)	700 lb	661 lb
Lift Control Type	Position	Not Published

Transmission Type	Hydrostatic (HST)	Hydrostatic
No. of Speeds	Infinite, 2 range (High/Low)	Infinite forward and reverse (2-range)
Max Travel Speed (Forward)	9.6 mph	Not Published
Max Travel Speed (Reverse)	6.6 mph	Not Published
Clutch	None (hydrostatic transmission)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Not Published
Brakes	Wet multi disc	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	99.3 in	Not Published
Overall Width	45.9 in	Not Published
Wheelbase	55.1 in	Not Published
Ground Clearance	6.4 in	Not Published
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	Not Published
Height to Top of ROPS	87.6 in	85.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,554 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	18x8.5-10	18x8.50-10
R1 Agricultural - Rear	26x12.00-12	26x12.00-12
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12.00-12	Not Published
R4 Industrial - Front	18x8.5-10	Not Published
R4 Industrial - Rear	26x12.00-12	Not Published

Quick Attach Loader System	Quick attach (QA) bucket, 48 in	Skid Steer Quick Attach
Loader Model	SL2420	FL1805
Loader Lift Height	SL2420: 73.7 in	FL1805: 74 in
Loader Lift Capacity (Full Height)	SL2420: 1,062.3 lb	FL1805: 922 lb
Loader Breakout Force	SL2420: 1,329.0 lb	FL1805: 1,392 lb

Warranty Length & Coverage	Tractors (Non-Commercial Application): 24 months, unlimited hours, parts & labor; Non-commercial powertrain (engine and driveline) on qualifying tractors: 72 months, unlimited hours, parts & labor	Not Published

Find a KIOTI dealer near you Find a dealer near you

Kioti CS2520 vs Massey Ferguson MF 1GC.25B: Quick Answers

Which has more horsepower, the Kioti CS2520 or the Massey Ferguson MF 1GC.25B?: They are effectively tied: both machines are rated at 24.5 hp hp for engine hp.
Which has more PTO horsepower, the Kioti CS2520 or the Massey Ferguson MF 1GC.25B?: They are effectively tied: both machines are rated at 18.5 hp hp for pto hp.
Which has more loader lift capacity, the Kioti CS2520 or the Massey Ferguson MF 1GC.25B?: The Kioti CS2520 leads on loader lift at 1,062.3 lb lb, compared to 922 lb lb for the Massey Ferguson MF 1GC.25B.
Which has more three-point hitch lift capacity, the Kioti CS2520 or the Massey Ferguson MF 1GC.25B?: The Kioti CS2520 leads on 3-pt lift (24 in) at 700 lb lb, compared to 661 lb lb for the Massey Ferguson MF 1GC.25B.
