Bad Boy Tractors 4025 vs Kioti CS2520

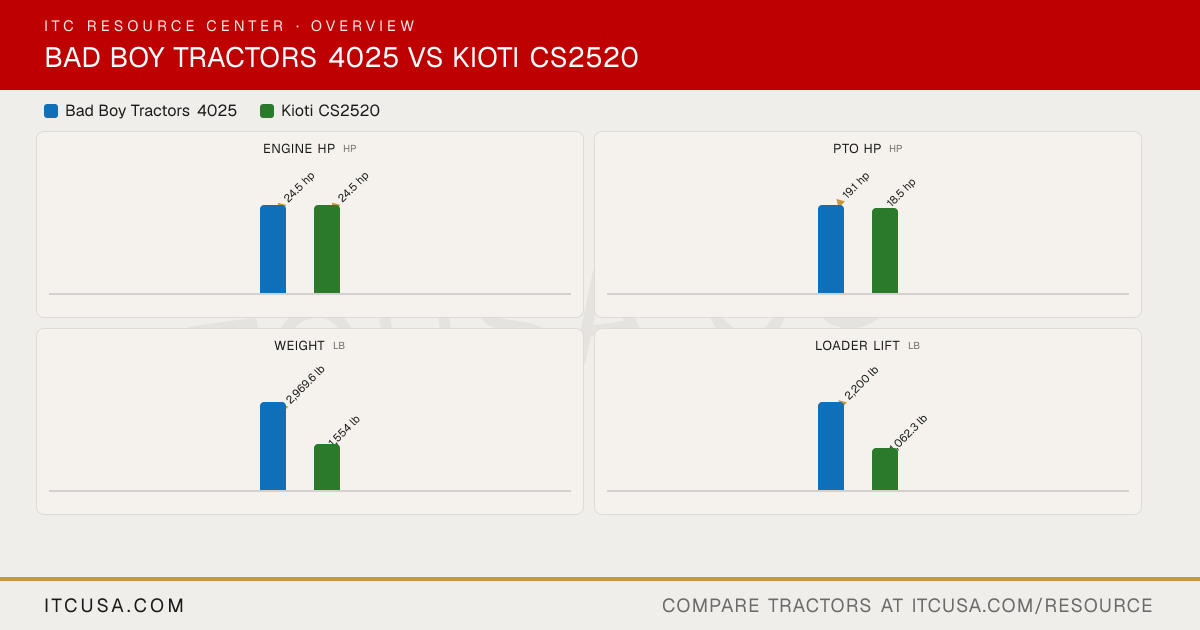

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 7 categories to 0 (1 tied). Machine pages: Bad Boy Tractors 4025 and Kioti CS2520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	KiotiCS2520

▶Engine
Engine Manufacturer	TYM	KIOTI (Daedong)
Engine Model	A1700N6-BUTR_3	3C100LFH-U2
Engine Type	Vertical, 4-stroke, water-cooled diesel	In-Line Vertical, Water-Cooled 4-Cycle Diesel (3-cylinder)
No. of Cylinders	3	3
Displacement	104.7 in³	61.5 in³
Rated Engine Speed	2100 rpm	3200 rpm
Engine Power (Gross)	24.5 hp	24.5 hp
PTO Power	19.1 hp	18.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry	Not Published
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Gear
Implement Flow	7.5 gpm	7.0 gpm
Steering Flow	4 gpm	Not Published
Total Hydraulic Flow	11.5 gpm	7.0 gpm
Overall Hydraulic Pump Flow	11.5 gpm	7.0 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	6.7 gal
Coolant Capacity	1.32 gal	0.87 gal
Crankcase Capacity	1.14 gal	1.0 gal
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	2.75 gal
Front Axle Fluid Capacity	Not Published	0.53 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	Available (2,200 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	1,580 lb
Hitch Lift Capacity (at 24”)	2,425 lb	700 lb
Lift Control Type	Position control	Position
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	3 range (A/B/C)	Infinite, 2 range (High/Low)
Max Travel Speed (Forward)	Not Published	9.6 mph
Max Travel Speed (Reverse)	Not Published	6.6 mph
Clutch	None (HST)	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet multi disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	99.3 in
Overall Width	56.7 in	45.9 in
Wheelbase	65.7 in	55.1 in
Ground Clearance	15 in	6.4 in
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake applied)
Height to Top of ROPS	96.85 in	87.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,969.6 lb	1,554 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear
R1 Agricultural - Front	8.0-16	18x8.5-10
R1 Agricultural - Rear	12.4-24	26x12.00-12
R3 Turf - Front	Not Published	18x8.5-10
R3 Turf - Rear	Not Published	26x12.00-12
R4 Industrial - Front	25x8.50-14	18x8.5-10
R4 Industrial - Rear	15-19.5	26x12.00-12
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Quick attach (QA) bucket, 48 in
Loader Model	BBL400	SL2420
Loader Lift Height	104 in	SL2420: 73.7 in
Loader Lift Capacity (Full Height)	2,200 lb	SL2420: 1,062.3 lb
Loader Breakout Force	3,660 lbf	SL2420: 1,329.0 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Tractors (Non-Commercial Application): 24 months, unlimited hours, parts & labor; Non-commercial powertrain (engine and driveline) on qualifying tractors: 72 months, unlimited hours, parts & labor
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a KIOTI dealer near you→

Bad Boy Tractors 4025 vs Kioti CS2520: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Kioti CS2520?

They are effectively tied: both machines are rated at 24.5 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Kioti CS2520?

The Bad Boy Tractors 4025 leads on pto hp at 19.1 hp hp, compared to 18.5 hp hp for the Kioti CS2520.

Which is heavier, the Bad Boy Tractors 4025 or the Kioti CS2520?

The Bad Boy Tractors 4025 leads on weight at 2,969.6 lb lb, compared to 1,554 lb lb for the Kioti CS2520.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Kioti CS2520?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,062.3 lb lb for the Kioti CS2520.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Kioti CS2520?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 700 lb lb for the Kioti CS2520.
