Kioti CS2610 vs Mahindra 3016

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Mahindra 3016 leads 5 categories to 0 (1 tied). Machine pages: Kioti CS2610 and Mahindra 3016.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti CS2610	Mahindra 3016
Engine HP (hp)	26 hp	26 hp
PTO HP (hp)	n/a	23 hp
Weight (lb)	n/a	2,437 lb
Loader Lift (lb)	675.3 lb	▲ 1,650 lb
3-Pt Lift (24 in) (lb)	n/a	1,720 lb
Lift Height (in)	71.3 in	▲ 99 in
Breakout Force (lbf)	1,332 lbf	▲ 2,650 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 11.2 gpm
Travel Speed (mph)	10.3 mph	▲ 11.9 mph

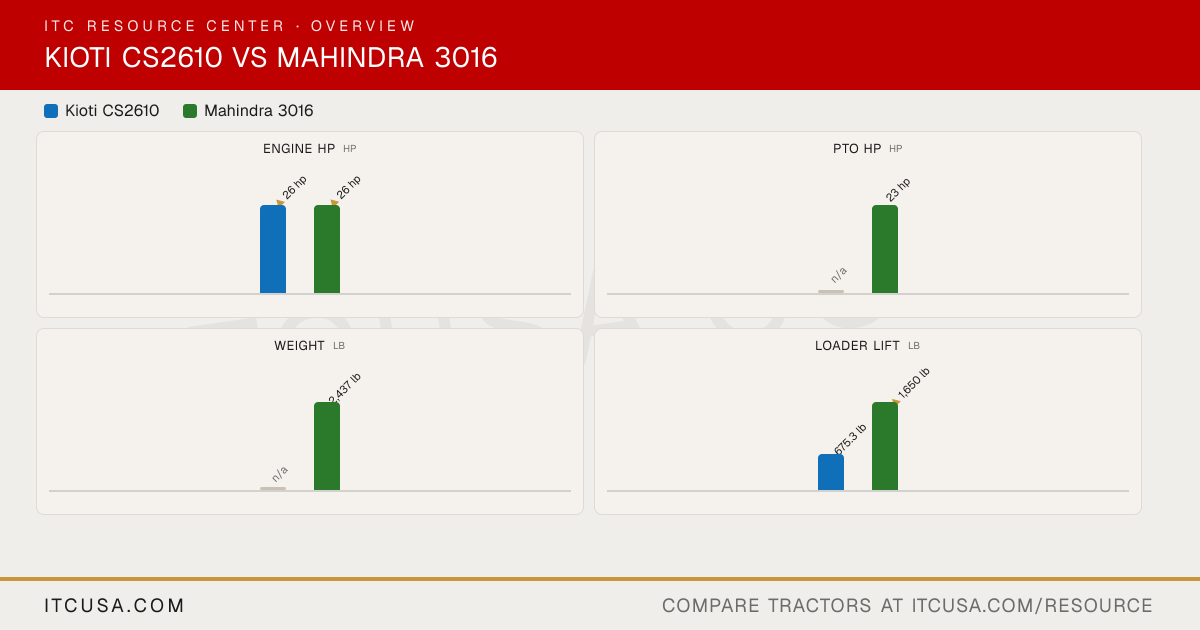

The headline numbers at a glance.

Kioti CS2610Mahindra 3016

Engine HPhp

▲26 hp

PTO HPhp

n/a

23 hp

Weightlb

n/a

2,437 lb

Loader Liftlb

675.3 lb

▲1,650 lb

3-Pt Lift (24 in)lb

n/a

1,720 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCS2610	Mahindra3016


Engine Manufacturer	Shibaura	Mitsubishi
Engine Model	S773L	Not Published
Engine Type	3-cylinder diesel with pressurized radiator	Three cylinder, four cycle, valve in cylinder head, cross flow porting diesel
No. of Cylinders	3	3
Displacement	69.0 in³	80.43 in³
Rated Engine Speed	3000 rpm	2600 rpm
Engine Power (Gross)	26 hp	26 hp
PTO Power	Not Published	23 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled, pressurized, thermostat controlled bypass, impeller pump
Air Cleaner	Not Published	Dry type with double filter
Fuel System	Not Published	Indirect injection; Bosch M type ND-PFR (Denso) injection pump, throttle type injectors
Alternator	Not Published	50 A

Pump Type	Gear	Gear type, front mounted, engine driven
Implement Flow	Not Published	7.8 gpm
Steering Flow	Not Published	3.4 gpm
Total Hydraulic Flow	6.5 gpm	11.2 gpm (7.8 + 3.4, computed)
Overall Hydraulic Pump Flow	6.5 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	1

Fuel Tank Capacity	6.7 gal	Not Published
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent (3016 Gear Drive); Live (3016 Hydrostatic Drive)
PTO Rear	540 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Standard (2,200 rpm)	Optional; 2000 rpm @ 2525 rpm
Category, 3-Point Hitch	Category I	CAT I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	Not Published	1720 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	Synchro shuttle, constant mesh main with 2 ranges (3016 Gear Drive); Hydrostatic, 3 ranges (3016 Hydrostatic Drive)
No. of Speeds	Infinite, 2 range	8F/8R (3016 Gear Drive); Infinite, 3 ranges (3016 Hydrostatic Drive)
Max Travel Speed (Forward)	10.3 mph	11.9 mph (3016 Gear Drive); 13.8 mph (3016 Hydrostatic Drive)
Max Travel Speed (Reverse)	7.0 mph	9.9 mph (3016 Gear Drive); 6.9 mph (3016 Hydrostatic Drive)
Clutch	Not Published	Dry single disc, diaphragm type, 8.46 in
Differential Lock & Limited Slip Options	Rear differential lock (mechanical)	Mechanical differential lock, pedal actuated

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc	Wet disc, mechanical
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD	Mechanical front drive (MFD), spiral bevel gear differential with bevel gear reductions
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	969 lbf

Overall Length with 3-Point Hitch	98.1 in	121.3 in
Overall Width	Not Published	63 in
Wheelbase	55.1 in	67.3 in
Ground Clearance	6.4 in	11.4 in
Min. Turn Radius without Brakes	Not Published	7.9 ft (with brake applied)
Height to Top of ROPS	88 in	81.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Not Published	2437 lb (3016 Gear Drive); 2459 lb (3016 Hydrostatic Drive)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear	Not Published
R1 Agricultural - Front	Not Published	7x16
R1 Agricultural - Rear	Not Published	11.2x24
R3 Turf - Front	18x8.5-10	25x8.5-14
R3 Turf - Rear	26x12.00-12	13.6x16
R4 Industrial - Front	18x8.5-10	27x8.50-15
R4 Industrial - Rear	26x12.00-12	15x19.5

Quick Attach Loader System	Quick attach (QA) bucket, 48 in	Not Published
Loader Model	SL2410	ML115
Loader Lift Height	SL2410: 71.3 in	ML115: 99 in
Loader Lift Capacity (Full Height)	SL2410: 675.3 lb	ML115: 1,650 lb
Loader Breakout Force	SL2410: 1,332 lb	ML115: 2,650 lb

Warranty Length & Coverage	Not Published	Not Published
