Kioti DK40 vs New Holland Workmaster 40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Kioti DK40 leads 8 categories to 0 (1 tied). Machine pages: Kioti DK40 and New Holland Workmaster 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti DK40	New Holland Workmaster 40
Engine HP (hp)	▲ 41 hp	40 hp
PTO HP (hp)	34 hp	34 hp
Weight (lb)	▲ 3,924 lb	3,067 lb
Loader Lift (lb)	▲ 2,761 lb	1,500 lb
3-Pt Lift (24 in) (lb)	▲ 2,493 lb	1,433 lb
Lift Height (in)	▲ 111.4 in	91.5 in
Breakout Force (lbf)	▲ 3,727 lbf	2,700 lbf
Hydraulic Flow (gpm)	▲ 16.8 gpm	13.5 gpm
Travel Speed (mph)	▲ 15.7 mph	14.8 mph

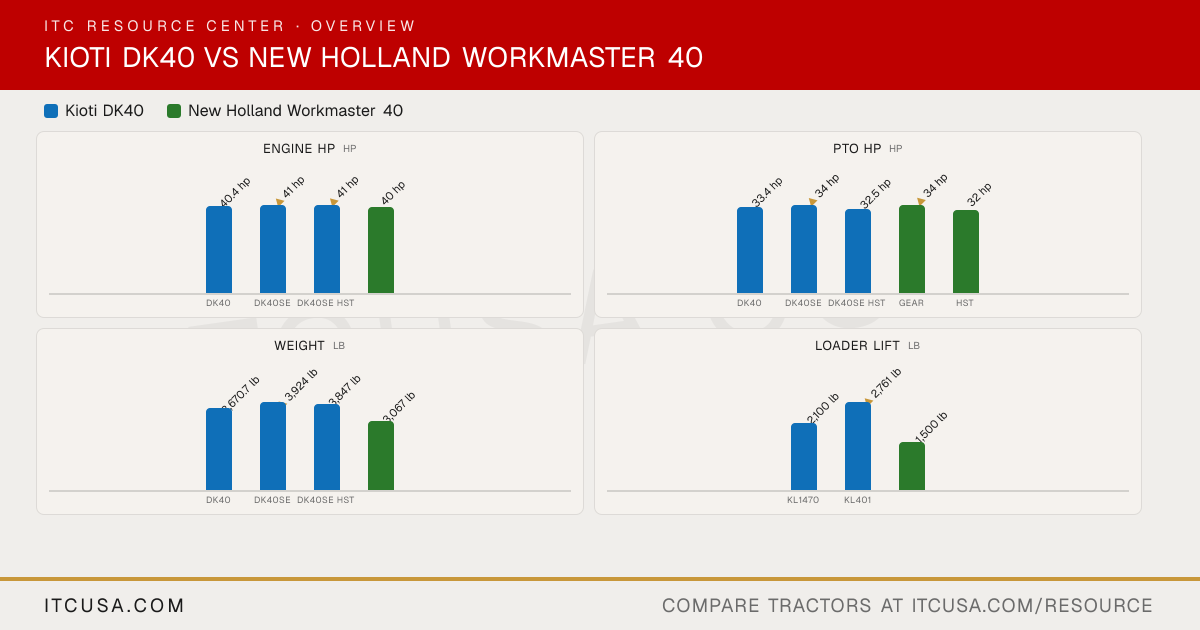

The headline numbers at a glance.

Kioti DK40New Holland Workmaster 40

Engine HPhp

40.4 hp

▲41 hp

40 hp

DK40DK40SEDK40SE HST

PTO HPhp

33.4 hp

▲34 hp

32.5 hp

▲34 hp

32 hp

DK40DK40SEDK40SE HSTGearHST

Weightlb

3,670.7 lb

▲3,924 lb

3,847 lb

3,067 lb

DK40DK40SEDK40SE HST

Loader Liftlb

2,100 lb

▲2,761 lb

1,500 lb

KL1470KL401

3-Pt Lift (24 in)lb

2,270.7 lb

▲2,493 lb

1,433 lb

DK40DK40SEDK40SE HST

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK40	New HollandWorkmaster 40


Engine Manufacturer	KIOTI	LS Mtron
Engine Model	DK40: 4A200; DK40SE: 4A200LWM; DK40SE HST: 4A200LWH	L3C19-T4
Engine Type	Indirect injection, vertical, water-cooled, 4-cycle diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	4	3
Displacement	122.0 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	DK40: 40.4 hp; DK40SE: 41 hp; DK40SE HST: 41 hp	40 hp
PTO Power	DK40: 33.4 hp; DK40SE: 34 hp; DK40SE HST: 32.5 hp	Gear: 34 hp; HST: 32 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Not Published	Dual element dry air cleaner (primary and inner safety element)
Fuel System	Indirect injection	High pressure common rail, ECU-controlled timing
Alternator	50 A, 12 V	70 A, 12 V

Pump Type	DK40SE: Gear (tandem); DK40SE HST: Gear (tandem)	Gear
Implement Flow	7.6 gpm	8.2 gpm
Steering Flow	4.5 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	DK40: 12.1 gpm (7.6 + 4.5, computed); DK40SE: 16.8 gpm; DK40SE HST: 16.8 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	DK40: 12.1 gpm (7.6 + 4.5, computed); DK40SE: 16.8 gpm; DK40SE HST: 16.8 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0
No. of Optional Remote Valves	DK40: 1 or 2 (2 or 4 ports, option); DK40SE: 1; DK40SE HST: 1	1 or 2

Fuel Tank Capacity	DK40: 10.6 gal; DK40SE: 11.9 gal; DK40SE HST: 11.9 gal	7.4 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	11.6 gal	8.5 gal
Front Axle Fluid Capacity	2.0 gal	6.9 qt

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Available (2,000 rpm)	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,417 lb	1,808 lb
Hitch Lift Capacity (at 24”)	DK40: 2,270.7 lb; DK40SE: 2,493 lb; DK40SE HST: 2,493 lb	1,433 lb
Lift Control Type	Position, draft, mixed control	Position control

Transmission Type	DK40: Synchronized shuttle; DK40SE: Synchro shuttle; DK40SE HST: Hydrostatic drive	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	DK40: 8F/8R (16F/16R with creeper, DK40CR); DK40SE: 12F/12R; DK40SE HST: 3 range HST	Gear: 12F/12R; HST: Infinite (3 ranges)
Max Travel Speed (Forward)	DK40: 14.53 mph; DK40SE: 15.7 mph; DK40SE HST: 15.6 mph	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	DK40: 13.40 mph; DK40SE: 14.8 mph; DK40SE HST: 10.9 mph	Gear: 13.63 mph; HST: 14.96 mph
Clutch	DK40: Dry single stage; DK40SE: Dry single stage; DK40SE HST: None	Gear: 9.4 in single dry disc; HST: Not applicable
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable suspension seat	Mechanical suspension seat, fore/aft adjustable, tilting
Front Axle Type	4WD	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb (max. drawbar load)	Not Published

Overall Length with 3-Point Hitch	DK40: 139.8 in; DK40SE: 134.2 in; DK40SE HST: 134.2 in	121 in
Overall Width	DK40: 59.3 in; DK40SE: 63.9 in; DK40SE HST: 63.9 in	66.5 in
Wheelbase	DK40: 70 in; DK40SE: 74.0 in; DK40SE HST: 74.0 in	67.5 in
Ground Clearance	DK40: 10.1 in; DK40SE: 14.7 in; DK40SE HST: 14.7 in	13 in
Min. Turn Radius without Brakes	DK40: 112.7 in (without brake); DK40SE: 114 in (9.5 ft, with brake applied); DK40SE HST: 114 in (9.5 ft, with brake applied)	123 in (left turn); 124 in (right turn)
Height to Top of ROPS	DK40: 97.0 in; DK40SE: 95.0 in; DK40SE HST: 95.0 in	87.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	96.3 in	Not Published

Tractor Weight (Base)	DK40: 3,670.7 lb; DK40SE: 3,924 lb; DK40SE HST: 3,847 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural: 8-16 front, 13.6-24 rear (standard tires)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8-16	7-14
R1 Agricultural - Rear	13.6-24	11.2-24
R3 Turf - Front	DK40: 27x8.50-15; DK40SE: 29x12.5-15; DK40SE HST: 29x12.5-15	25x8.50-14
R3 Turf - Rear	DK40: 41x14-20; DK40SE: 21.5L-16.1; DK40SE HST: 21.5L-16.1	41x14.00-20
R4 Industrial - Front	10x16.5	25x8.50-14
R4 Industrial - Rear	14.9x24	43x16-20

Quick Attach Loader System	Quick attach (QA) bucket, 72 in	140TL: Quick Mount system, no tools needed; optional skid steer quick attach plates
Loader Model	KL1470 (DK40); KL401 (DK40SE and DK40SE HST)	140TL
Loader Lift Height	KL1470: 111.4 in; KL401: 107.8 in	140TL: 91.5 in
Loader Lift Capacity (Full Height)	KL1470: 2,100 lb; KL401: 2,761 lb	140TL: 1,500 lb
Loader Breakout Force	KL1470: 3,400 lb; KL401: 3,727 lb	140TL: 2,700 lb

Warranty Length & Coverage	Not Published	Boomer Guard6 limited warranty: 2 years or 750 hours full coverage plus powertrain coverage to 6 years or 1,500 hours total

Find a KIOTI dealer near you Find a New Holland dealer near you

Kioti DK40 vs New Holland Workmaster 40: Quick Answers

Which has more horsepower, the Kioti DK40 or the New Holland Workmaster 40?: The Kioti DK40 leads on engine hp at 41 hp hp, compared to 40 hp hp for the New Holland Workmaster 40.
Which has more PTO horsepower, the Kioti DK40 or the New Holland Workmaster 40?: They are effectively tied: both machines are rated at 34 hp hp for pto hp.
Which is heavier, the Kioti DK40 or the New Holland Workmaster 40?: The Kioti DK40 leads on weight at 3,924 lb lb, compared to 3,067 lb lb for the New Holland Workmaster 40.
Which has more loader lift capacity, the Kioti DK40 or the New Holland Workmaster 40?: The Kioti DK40 leads on loader lift at 2,761 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 40.
Which has more three-point hitch lift capacity, the Kioti DK40 or the New Holland Workmaster 40?: The Kioti DK40 leads on 3-pt lift (24 in) at 2,493 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 40.
