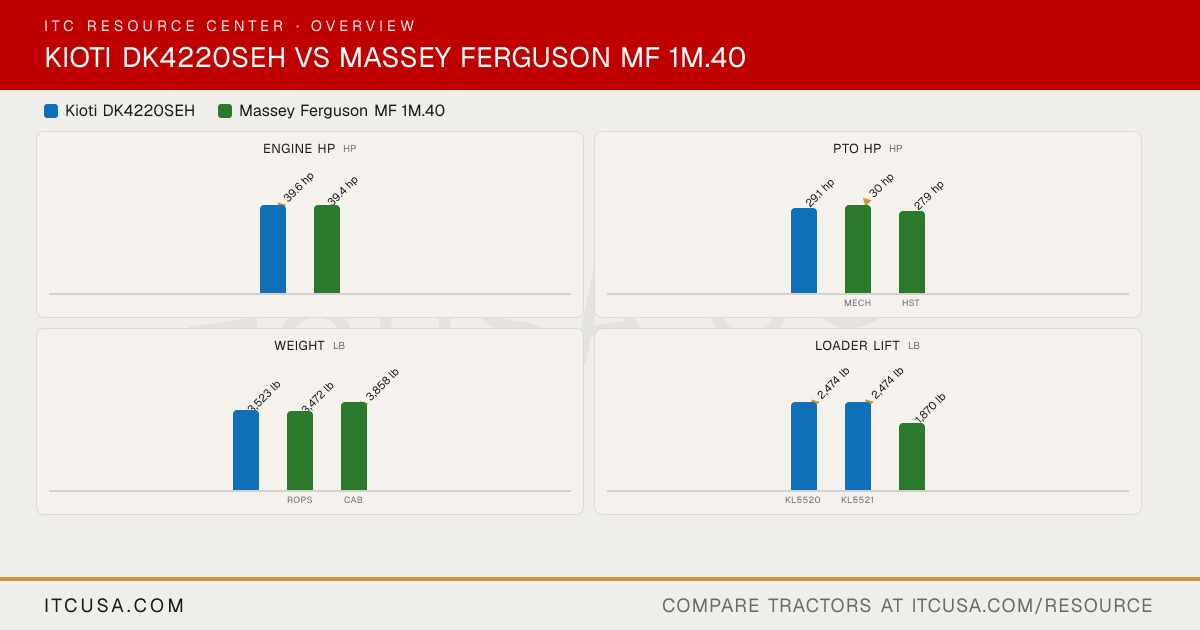

Kioti DK4220SEH vs Massey Ferguson MF 1M.40

Across 8 measurable specs, the Kioti DK4220SEH leads 5 categories to 3. Machine pages: Kioti DK4220SEH and Massey Ferguson MF 1M.40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK4220SEH	Massey FergusonMF 1M.40

▶Engine
Engine Manufacturer	KIOTI (Daedong)	Iseki
Engine Model	3H-TH4D	Not Published
Engine Type	3-cylinder, liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	39.6 hp	39.4 hp
PTO Power	29.1 hp	Mech: 30 hp; HST: 27.9 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Dry element	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Gear	Two gear-type pumps
Implement Flow	9.62 gpm	12.6 gpm
Steering Flow	6.87 gpm	7.0 gpm
Total Hydraulic Flow	16.5 gpm	19.6 gpm (12.6 + 7.0, computed)
Overall Hydraulic Pump Flow	16.5 gpm	19.6 gpm (12.6 + 7.0, computed)
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	12.7 gal	10.6 gal
Coolant Capacity	2.1 gal	Not Published
Crankcase Capacity	1.95 gal	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent with SoftStart electronic modulation
PTO Rear	540 rpm	540 rpm, 1.375 in
Mid-PTO Availability	Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,998 lb	2,800 lb
Hitch Lift Capacity (at 24”)	2,716 lb	2,535 lb
Lift Control Type	Position	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)
No. of Speeds	3 ranges (hydrostatic, infinite speeds)	Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	18.45 mph	Not Published
Max Travel Speed (Reverse)	12.92 mph	Not Published
Clutch	None (hydrostatic transmission)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet multi-disc	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
Front Axle Type	Mechanical 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,655 lb (max. drawbar vertical load)	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	125.5 in	122.0 in
Overall Width	62.8 in	67.5 in
Wheelbase	71.3 in	Not Published
Ground Clearance	14.5 in	14.4 in
Min. Turn Radius without Brakes	102.8 in (with brake applied)	Not Published
Height to Top of ROPS	96.8 in	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	93.0 in	91.3 in
▶Weight
Tractor Weight (Base)	3,523 lb (DK4220SEH); 4,043 lb (DK4220SEH CAB)	ROPS: 3,472 lb; Cab: 3,858 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial, R14	Not Published
R1 Agricultural - Front	8-16	Not Published
R1 Agricultural - Rear	13.6-24	Not Published
R3 Turf - Front	29-12.5-15	Not Published
R3 Turf - Rear	21.5L-16.1	Not Published
R4 Industrial - Front	10-16.5	Not Published
R4 Industrial - Rear	14.9-24	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach (QA) bucket, 66 in or 72 in	Skid steer
Loader Model	KL5520; KL5521 (Cab models)	FL2611
Loader Lift Height	KL5520: 107.7 in; KL5521: 107.7 in	FL2611: 100 in
Loader Lift Capacity (Full Height)	KL5520: 2,474 lb; KL5521: 2,474 lb	FL2611: 1,870 lb
Loader Breakout Force	KL5520: 3,895 lb; KL5521: 3,895 lb	FL2611: 2,950 lb
▶Warranty
Warranty Length & Coverage	Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	None tagged yet

Find a KIOTI dealer near you→Find a dealer near you→

Kioti DK4220SEH vs Massey Ferguson MF 1M.40: Quick Answers

Which has more horsepower, the Kioti DK4220SEH or the Massey Ferguson MF 1M.40?

The Kioti DK4220SEH leads on engine hp at 39.6 hp hp, compared to 39.4 hp hp for the Massey Ferguson MF 1M.40.

Which has more PTO horsepower, the Kioti DK4220SEH or the Massey Ferguson MF 1M.40?

The Massey Ferguson MF 1M.40 leads on pto hp at 30 hp hp, compared to 29.1 hp hp for the Kioti DK4220SEH.

Which is heavier, the Kioti DK4220SEH or the Massey Ferguson MF 1M.40?

The Massey Ferguson MF 1M.40 leads on weight at 3,858 lb lb, compared to 3,523 lb lb for the Kioti DK4220SEH.

Which has more loader lift capacity, the Kioti DK4220SEH or the Massey Ferguson MF 1M.40?

The Kioti DK4220SEH leads on loader lift at 2,474 lb lb, compared to 1,870 lb lb for the Massey Ferguson MF 1M.40.

Which has more three-point hitch lift capacity, the Kioti DK4220SEH or the Massey Ferguson MF 1M.40?

The Kioti DK4220SEH leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,535 lb lb for the Massey Ferguson MF 1M.40.
