Kioti NX4510CH vs Massey Ferguson 2604H

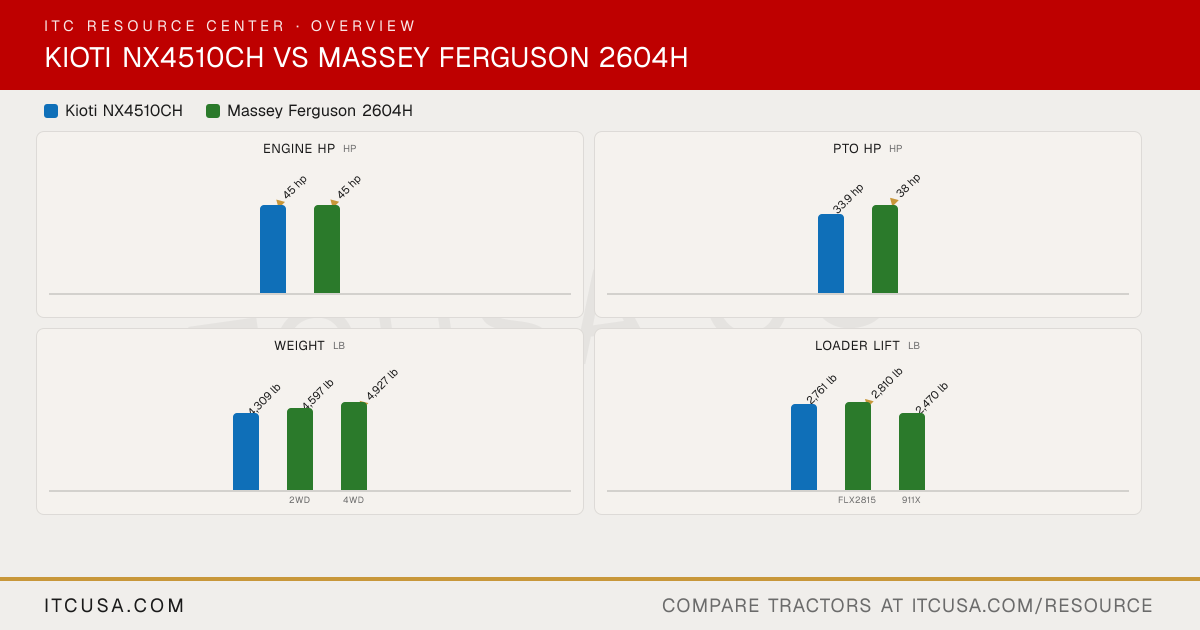

Across 8 measurable specs, the Massey Ferguson 2604H leads 5 categories to 2 (1 tied). Machine pages: Kioti NX4510CH and Massey Ferguson 2604H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX4510CH	Massey Ferguson2604H

▶Engine
Engine Manufacturer	KIOTI (Daedong)	Simpson
Engine Model	3F183T	SJV326
Engine Type	KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI	3-cylinder, turbocharged, intercooled, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	157.9 in³
Rated Engine Speed	2600 rpm	2000 rpm
Engine Power (Gross)	45 hp	45 hp
PTO Power	33.9 hp	38 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry type element	Not Published
Fuel System	Common Rail Direct Injection (CRDI)	Electronically controlled high-pressure common rail
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Gear	Mark 1A scotch yoke piston pump
Implement Flow	9.6 gpm	Not Published
Steering Flow	8.2 gpm	Not Published
Total Hydraulic Flow	17.9 gpm	15.7 gpm
Overall Hydraulic Pump Flow	17.9 gpm	15.7 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	10.6 gpm
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	14.8 gal	14.5 gal
Coolant Capacity	2.0 gal	4 gal
Crankcase Capacity	1.58 gal	2.5 gal
Transmission / Hydraulic System Capacity	11.89 gal	10.5 gal
Front Axle Fluid Capacity	1.8 gal	4WD: 1.5 gal differential, plus 0.23 gal per wheel end
▶PTO & Hitch
PTO Type	Independent	Live
PTO Rear	540 rpm	540 rpm, 6-spline
Mid-PTO Availability	Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I and II
Hitch Lift Capacity	3,538 lb	3,747 lb
Hitch Lift Capacity (at 24”)	3,177 lb	2,204 lb
Lift Control Type	Position with Draft Control	Draft, position and response control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic	8F x 2R SideShift sliding gear
No. of Speeds	3 Range	8 forward and 2 reverse
Max Travel Speed (Forward)	16.52 mph	Not Published
Max Travel Speed (Reverse)	16.52 mph	Not Published
Clutch	Not Published	Dual dry
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Mechanical engagement via right-side heel pedal
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power steering with separate reservoir
Brakes	Wet Multi Disc	Drum brakes
Seat Suspension & Adjustability	Adjustable Seat	ReverseRise adjustable seat with fixed steering column
Front Axle Type	Not Published	2WD: straight, telescopically adjustable; 4WD: heavy-duty planetary reduction
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,655 lb (max. drawbar vertical load)	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	139.6 in	2WD: 138 in; 4WD: 139 in
Overall Width	65.6 in	64.6 in
Wheelbase	75.6 in	2WD: 80.7 in; 4WD: 81.5 in
Ground Clearance	13.8 in	Not Published
Min. Turn Radius without Brakes	9.8 ft	Not Published
Height to Top of ROPS	Not Published	90.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94.1 in	Not Published
▶Weight
Tractor Weight (Base)	4,309 lb	2WD: 4,597 lb; 4WD: 4,927 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	2WD standard (ag): 6x16 front, 12.4x28 rear; 2WD optional (ag): 7.5x16 front, 13.6x28 rear; 4WD standard (ag): 10.5/80-18 front, 12.4x28 rear
R1 Agricultural - Front	8-16	2WD: 6x16 (7.5x16 optional); 4WD: 10.5/80-18
R1 Agricultural - Rear	13.6-24	2WD: 12.4x28 (13.6x28 optional); 4WD: 12.4x28
R3 Turf - Front	29-12.5-15	Not Published
R3 Turf - Rear	21.5L-16.1	Not Published
R4 Industrial - Front	10-16.5	Not Published
R4 Industrial - Rear	14.9-24	Not Published
▶Loader & Attachments
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	Skid steer style coupling
Loader Model	KL6010	FLx2815 (2WD); 911X (4WD)
Loader Lift Height	KL6010: 108.3 in (to pivot pin)	FLx2815: 111 in; 911X: 114 in
Loader Lift Capacity (Full Height)	KL6010: 2,761 lb (at pivot pin, max height)	FLx2815: 2,810 lb; 911X: 2,470 lb
Loader Breakout Force	KL6010: 3,727 lb (at pivot pin)	FLx2815: 4,240 lb; 911X: 2,755 lb
▶Warranty
Warranty Length & Coverage	Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Find a KIOTI dealer near you→Find a dealer near you→

Kioti NX4510CH vs Massey Ferguson 2604H: Quick Answers

Which has more horsepower, the Kioti NX4510CH or the Massey Ferguson 2604H?

They are effectively tied: both machines are rated at 45 hp hp for engine hp.

Which has more PTO horsepower, the Kioti NX4510CH or the Massey Ferguson 2604H?

The Massey Ferguson 2604H leads on pto hp at 38 hp hp, compared to 33.9 hp hp for the Kioti NX4510CH.

Which is heavier, the Kioti NX4510CH or the Massey Ferguson 2604H?

The Massey Ferguson 2604H leads on weight at 4,927 lb lb, compared to 4,309 lb lb for the Kioti NX4510CH.

Which has more loader lift capacity, the Kioti NX4510CH or the Massey Ferguson 2604H?

The Massey Ferguson 2604H leads on loader lift at 2,810 lb lb, compared to 2,761 lb lb for the Kioti NX4510CH.

Which has more three-point hitch lift capacity, the Kioti NX4510CH or the Massey Ferguson 2604H?

The Kioti NX4510CH leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,204 lb lb for the Massey Ferguson 2604H.
