Across 3 measurable specs, this matchup is a dead heat: 1 categories to the Kioti NX4510H, 1 to the TYM 4520, 1 tied. Machine pages: Kioti NX4510H and TYM 4520 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

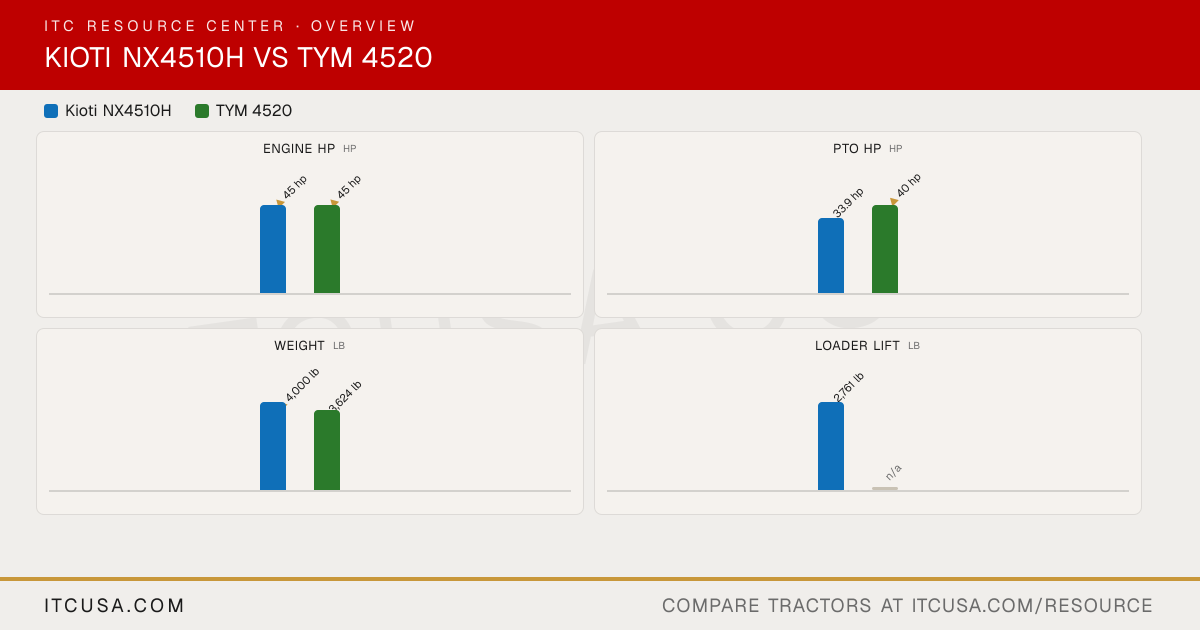

Category Verdict Spec Kioti NX4510H TYM 4520 Engine HP (hp) 45 hp 45 hp PTO HP (hp) 33.9 hp ▲ 40 hpWeight (lb) ▲ 4,000 lb3,624 lb Loader Lift (lb) 2,761 lb n/a 3-Pt Lift (24 in) (lb) 3,177 lb n/a Lift Height (in) 108.3 in n/a Breakout Force (lbf) 3,727 lbf n/a Hydraulic Flow (gpm) 17.9 gpm n/a Travel Speed (mph) 16.5 mph n/a
Overview Loader Work PTO Work
The headline numbers at a glance.
Kioti NX4510H TYM 4520
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
▶ EngineEngine Manufacturer KIOTI (Daedong) Yanmar Engine Model 3F183T 4TNE-88 Engine Type KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI Diesel, liquid-cooled No. of Cylinders 3 4 Displacement 111.4 in³ 133.6 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 45 hp 45 hp PTO Power 33.9 hp 40 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry type element Dry element Fuel System Common Rail Direct Injection (CRDI) Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Gear Not Published Implement Flow 9.6 gpm Not Published Steering Flow 8.2 gpm Not Published Total Hydraulic Flow 17.9 gpm Not Published Overall Hydraulic Pump Flow 17.9 gpm Not Published Hydraulic System Type Open Center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves 1 Not Published ▶ Fluid CapacityFuel Tank Capacity 14.8 gal 10.6 gal Coolant Capacity 2.0 gal Not Published Crankcase Capacity 1.58 gal Not Published Transmission / Hydraulic System Capacity 11.89 gal Not Published Front Axle Fluid Capacity 1.8 gal Not Published ▶ PTO & HitchPTO Type Independent Transmission-driven PTO Rear 540 rpm 540 / 1000 rpm Mid-PTO Availability Optional (2,000 rpm) Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,538 lb Not Published Hitch Lift Capacity (at 24”) 3,177 lb Not Published Lift Control Type Position with Draft Control Not Published ▶ Transmission & DrivetrainTransmission Type Hydrostatic Synchronized shuttle No. of Speeds 3 Range 12F/12R Max Travel Speed (Forward) 16.52 mph Not Published Max Travel Speed (Reverse) 16.52 mph Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Differential Lock: Rear (Standard) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Hydrostatic power steering Brakes Wet Multi Disc Wet disc Seat Suspension & Adjustability Adjustable Seat Not Published Front Axle Type Not Published 4WD (MFWD) Front Axle Rating Not Published Not Published Drawbar Capacity 1,655 lb (max. drawbar vertical load) Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 139.6 in 129.7 in Overall Width 65.6 in 60 in Wheelbase 75.6 in 68.8 in Ground Clearance 13.8 in 12.2 in Min. Turn Radius without Brakes 9.8 ft Not Published Height to Top of ROPS 103.1 in 86.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 4,000 lb 3,624 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Agricultural: 8-18 front / 12.4-28 rear R1 Agricultural - Front 8-16 8-18 R1 Agricultural - Rear 13.6-24 12.4-28 R3 Turf - Front 29-12.5-15 Not Published R3 Turf - Rear 21.5L-16.1 Not Published R4 Industrial - Front 10-16.5 Not Published R4 Industrial - Rear 14.9-24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator Not Published Loader Model KL6010 Not Published Loader Lift Height KL6010: 108.3 in (to pivot pin) Not Published Loader Lift Capacity (Full Height) KL6010: 2,761 lb (at pivot pin, max height) Not Published Loader Breakout Force KL6010: 3,727 lb (at pivot pin) Not Published ▶ WarrantyWarranty Length & Coverage Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Kioti NX4510H vs TYM 4520: Quick Answers
Which has more horsepower, the Kioti NX4510H or the TYM 4520? They are effectively tied: both machines are rated at 45 hp hp for engine hp.
Which has more PTO horsepower, the Kioti NX4510H or the TYM 4520? The TYM 4520 leads on pto hp at 40 hp hp, compared to 33.9 hp hp for the Kioti NX4510H.
Which is heavier, the Kioti NX4510H or the TYM 4520? The Kioti NX4510H leads on weight at 4,000 lb lb, compared to 3,624 lb lb for the TYM 4520. More Head-to-Heads
