Kubota B2301HSD vs Kubota BX2360

Across 9 measurable specs, the Kubota B2301HSD leads 7 categories to 2. Machine pages: Kubota B2301HSD and Kubota BX2360.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

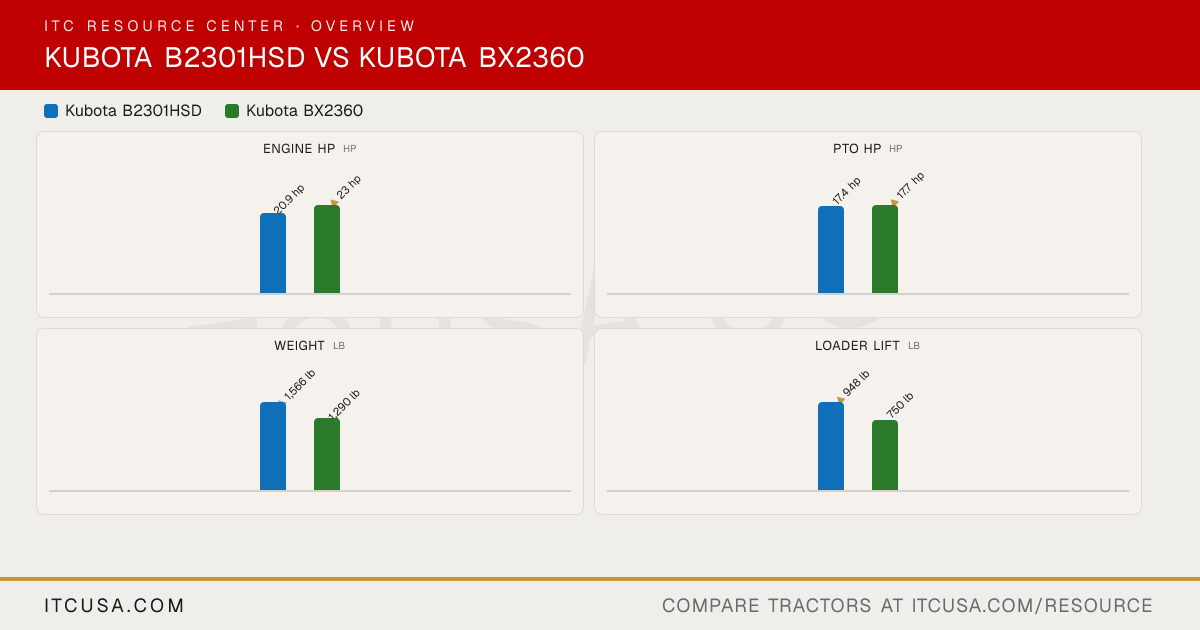

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2301HSD	KubotaBX2360

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1005	D902
Engine Type	E-TVCS, liquid cooled, 3-cylinder diesel	Liquid-cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	61.1 in³	54.8 in³
Rated Engine Speed	2800 rpm	3200 rpm
Engine Power (Gross)	20.9 hp	23 hp
PTO Power	17.4 hp	17.7 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Pressurized radiator	Liquid-cooled
Air Cleaner	Dual paper element	Not Published
Fuel System	Not Published	Indirect injection
Alternator	Not Published	40 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Not Published
Implement Flow	Not Published	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	8.3 gpm	6.2 gpm
Overall Hydraulic Pump Flow	8.3 gpm	6.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.1 gal	6.6 gal
Coolant Capacity	4.0 qt	2.8 qt
Crankcase Capacity	3.3 qt	3.3 qt
Transmission / Hydraulic System Capacity	4.0 gal	3.06 gal
Front Axle Fluid Capacity	3.7 qt	Not Published
▶PTO & Hitch
PTO Type	Independent	Live independent, wet hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	2500 rpm	Standard mid-PTO, 2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,210 lb
Hitch Lift Capacity (at 24”)	1,411 lb	680 lb
Lift Control Type	Position control valve	Directional control with auto-return lever
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission	Hydrostatic transmission with High-Low gear shift, 2-range
No. of Speeds	3 ranges	2-range
Max Travel Speed (Forward)	11.8 mph	8.1 mph
Max Travel Speed (Reverse)	8.9 mph	6.2 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock standard	Differential lock (pedal operated)
▶Chassis, Steering & Controls
Frame Type	Not Published	Roll Over Protective Structure (ROPS)
Steering	Hydraulic power steering	Hydrostatic power steering
Brakes	Multi-plate wet disc	Wet disc
Seat Suspension & Adjustability	High-back suspension seat with standard arm rests; tilt steering (HST models)	Not Published
Front Axle Type	Four-wheel drive	Selectable 2WD and 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	660 lb	Not Published
▶Dimensions & Maneuverability
Overall Width	45.3 in	44.5 in (with turf tires)
Wheelbase	61.4 in	55.1 in
Ground Clearance	12.0 in	8.7 in (front axle)
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	7.5 ft
Height to Top of ROPS	83.9 in	70.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	93.7 in (without 3-point hitch)	95.5 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	1,566 lb	1,290 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear	Turf, bar (ag) or industrial: 18x8.5-10 front, 26x12-12 rear
R1 Agricultural - Front	6-12	18x8.5-10
R1 Agricultural - Rear	9.5-16	26x12-12
R3 Turf - Front	23x8.50-12	18x8.5-10
R3 Turf - Rear	33x12.5-15	26x12-12
R4 Industrial - Front	23x8.50-12	18x8.5-10
R4 Industrial - Rear	12-16.5	26x12-12
▶Loader & Attachments
Quick Attach Loader System	Swift-Tach Loader (LA435 - 2-Lever Quick Coupler (Optional))	Not Published
Loader Model	LA435	LA243
Loader Lift Height	78.5 in (at pivot pin)	LA243: 71.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	948 lb (at pivot pin)	LA243: 750 lb (pivot pin, max. height)
Loader Breakout Force	2,146 lbf (at pivot pin)	LA243: 992 lbf
▶Warranty
Warranty Length & Coverage	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00	None tagged yet

Find a Kubota dealer near you→

Kubota B2301HSD vs Kubota BX2360: Quick Answers

Which has more horsepower, the Kubota B2301HSD or the Kubota BX2360?

The Kubota BX2360 leads on engine hp at 23 hp hp, compared to 20.9 hp hp for the Kubota B2301HSD.

Which has more PTO horsepower, the Kubota B2301HSD or the Kubota BX2360?

The Kubota BX2360 leads on pto hp at 17.7 hp hp, compared to 17.4 hp hp for the Kubota B2301HSD.

Which is heavier, the Kubota B2301HSD or the Kubota BX2360?

The Kubota B2301HSD leads on weight at 1,566 lb lb, compared to 1,290 lb lb for the Kubota BX2360.

Which has more loader lift capacity, the Kubota B2301HSD or the Kubota BX2360?

The Kubota B2301HSD leads on loader lift at 948 lb lb, compared to 750 lb lb for the Kubota BX2360.

Which has more three-point hitch lift capacity, the Kubota B2301HSD or the Kubota BX2360?

The Kubota B2301HSD leads on 3-pt lift (24 in) at 1,411 lb lb, compared to 680 lb lb for the Kubota BX2360.
