Bad Boy Tractors 4025 vs Kubota B2301HSD

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 8 categories to 0. Machine pages: Bad Boy Tractors 4025 and Kubota B2301HSD.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

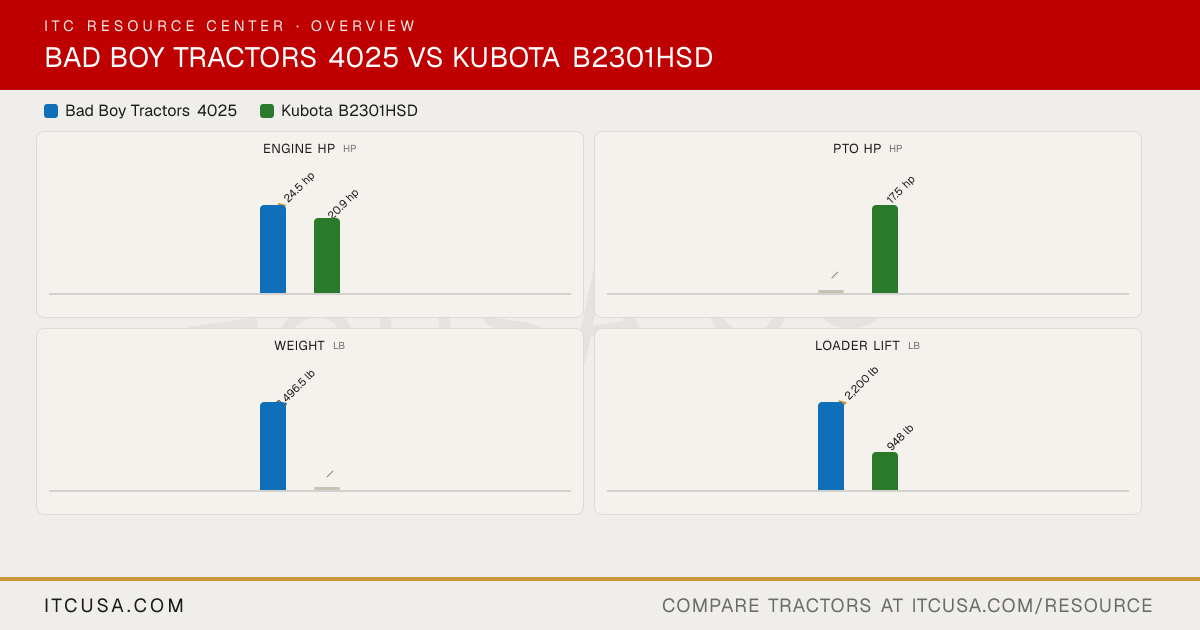

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	KubotaB2301HSD

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1700N6-BUTR_3	D1005
Engine Type	Vertical, 4-stroke, water-cooled diesel	E-TVCS, liquid cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	104.5 in³	61.1 in³
Rated Engine Speed	2100 rpm	2800 rpm
Engine Power (Gross)	25 hp	20.9 hp
PTO Power	19.1 hp	17.4 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Dry	Dual paper element
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Dual pump
Implement Flow	7.5 gpm	Not Published
Steering Flow	4 gpm	Not Published
Total Hydraulic Flow	11.5 gpm	8.3 gpm
Overall Hydraulic Pump Flow	11.5 gpm	8.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	6.1 gal
Coolant Capacity	1.32 gal	4.0 qt
Crankcase Capacity	1.14 gal	3.3 qt
Transmission / Hydraulic System Capacity	9.77 gal	4.0 gal
Front Axle Fluid Capacity	Not Published	3.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,411 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic transmission
No. of Speeds	3 range (A/B/C)	3 ranges
Max Travel Speed (Forward)	Not Published	11.8 mph
Max Travel Speed (Reverse)	Not Published	8.9 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Hydraulic power steering
Brakes	Wet multi-disc	Multi-plate wet disc
Seat Suspension & Adjustability	Not Published	High-back suspension seat with standard arm rests; tilt steering (HST models)
Front Axle Type	Selectable 4WD	Four-wheel drive
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	660 lb
▶Dimensions & Maneuverability
Overall Width	56.7 in	45.3 in
Wheelbase	65.7 in	61.4 in
Ground Clearance	13.1 in	12.0 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	104.06 in	83.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	134.88 in	93.7 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	2,970 lb	1,566 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 / 15-19.5)	Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear
R1 Agricultural - Front	8.0-16	6-12
R1 Agricultural - Rear	12.4-24	9.5-16
R3 Turf - Front	Not Published	23x8.50-12
R3 Turf - Rear	Not Published	33x12.5-15
R4 Industrial - Front	25x8.50-14	23x8.50-12
R4 Industrial - Rear	15-19.5	12-16.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Swift-Tach Loader (LA435 - 2-Lever Quick Coupler (Optional))
Loader Model	BBL400	LA435
Loader Lift Height	104 in	78.5 in (at pivot pin)
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	948 lb (at pivot pin)
Loader Breakout Force	3,660 lbf	2,146 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 4025 vs Kubota B2301HSD: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Kubota B2301HSD?

The Bad Boy Tractors 4025 leads on engine hp at 25 hp hp, compared to 20.9 hp hp for the Kubota B2301HSD.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Kubota B2301HSD?

The Bad Boy Tractors 4025 leads on pto hp at 19.1 hp hp, compared to 17.4 hp hp for the Kubota B2301HSD.

Which is heavier, the Bad Boy Tractors 4025 or the Kubota B2301HSD?

The Bad Boy Tractors 4025 leads on weight at 2,970 lb lb, compared to 1,566 lb lb for the Kubota B2301HSD.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Kubota B2301HSD?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 948 lb lb for the Kubota B2301HSD.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Kubota B2301HSD?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,411 lb lb for the Kubota B2301HSD.
