Bad Boy Tractors 3026 vs Kubota B2301HSD

Across 9 measurable specs, the Bad Boy Tractors 3026 leads 6 categories to 3. Machine pages: Bad Boy Tractors 3026 and Kubota B2301HSD.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

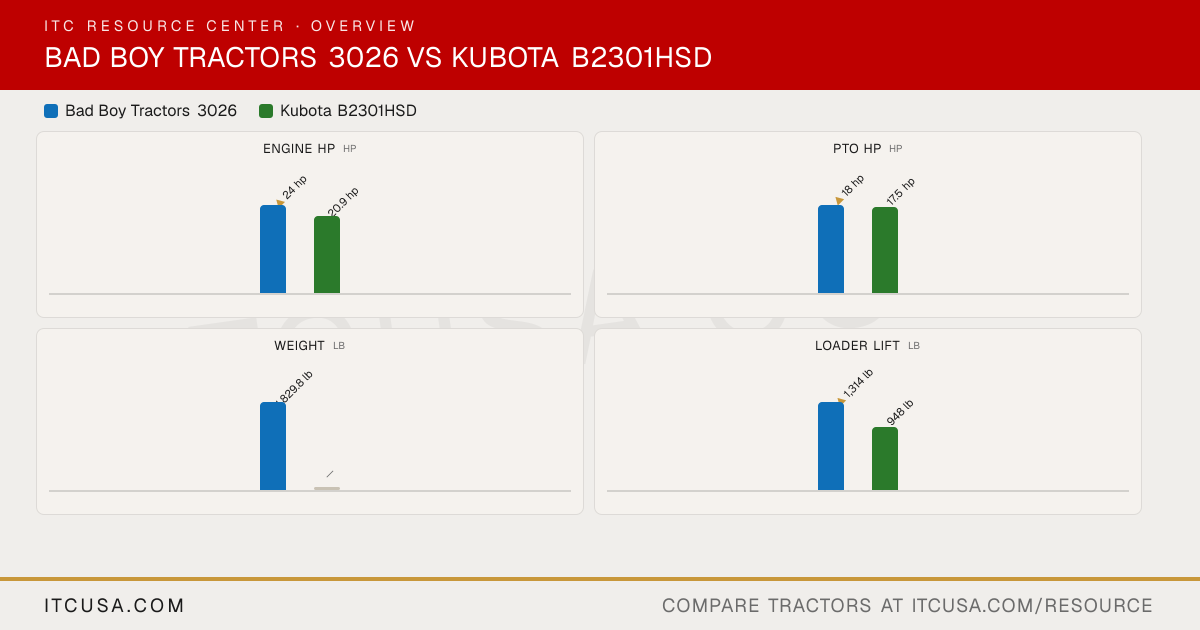

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KubotaB2301HSD

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1100N2	D1005
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	E-TVCS, liquid cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	71.7 in³	61.1 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	25 hp	20.9 hp
PTO Power	18 hp	17.4 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Dry element	Dual paper element
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Dual pump
Implement Flow	4.3 gpm	Not Published
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	7.4 gpm	8.3 gpm
Overall Hydraulic Pump Flow	7.7 gpm	8.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	2
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	6.1 gal
Coolant Capacity	1.21 gal	4.0 qt
Crankcase Capacity	0.79 gal	3.3 qt
Transmission / Hydraulic System Capacity	2.90 gal	4.0 gal
Front Axle Fluid Capacity	0.79 gal	3.7 qt
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,808 lb
Hitch Lift Capacity (at 24”)	974 lb	1,411 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic transmission
No. of Speeds	3 range (L/M/H)	3 ranges
Max Travel Speed (Forward)	14.8 mph	11.8 mph
Max Travel Speed (Reverse)	14.8 mph	8.9 mph
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydraulic power steering
Brakes	Wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	High-back suspension seat with standard arm rests; tilt steering (HST models)
Front Axle Type	Selectable 4WD	Four-wheel drive
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	660 lb
▶Dimensions & Maneuverability
Overall Width	53.8 in	45.3 in
Wheelbase	65.7 in	61.4 in
Ground Clearance	16.4 in	12.0 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	91.4 in	83.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	110 in	93.7 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	2,106 lb	1,566 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear
R1 Agricultural - Front	7-16 6PR	6-12
R1 Agricultural - Rear	11.2-20	9.5-16
R3 Turf - Front	Not Published	23x8.50-12
R3 Turf - Rear	Not Published	33x12.5-15
R4 Industrial - Front	25x8.50-14	23x8.50-12
R4 Industrial - Rear	14x17.5	12-16.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Swift-Tach Loader (LA435 - 2-Lever Quick Coupler (Optional))
Loader Model	BBL300	LA435
Loader Lift Height	86 in	78.5 in (at pivot pin)
Loader Lift Capacity (Full Height)	1,314 lb (at pivot pin)	948 lb (at pivot pin)
Loader Breakout Force	1,960 lbf	2,146 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 3026 vs Kubota B2301HSD: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Kubota B2301HSD?

The Bad Boy Tractors 3026 leads on engine hp at 25 hp hp, compared to 20.9 hp hp for the Kubota B2301HSD.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kubota B2301HSD?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 17.4 hp hp for the Kubota B2301HSD.

Which is heavier, the Bad Boy Tractors 3026 or the Kubota B2301HSD?

The Bad Boy Tractors 3026 leads on weight at 2,106 lb lb, compared to 1,566 lb lb for the Kubota B2301HSD.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kubota B2301HSD?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 948 lb lb for the Kubota B2301HSD.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kubota B2301HSD?

The Kubota B2301HSD leads on 3-pt lift (24 in) at 1,411 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
