Kubota B2301HSD vs Mahindra 1120

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota B2301HSD leads 7 categories to 1. Machine pages: Kubota B2301HSD and Mahindra 1120.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota B2301HSD	Mahindra 1120
Engine HP (hp)	▲ 20.9 hp	20.1 hp
PTO HP (hp)	▲ 17.5 hp	13.9 hp
Weight (lb)	n/a	2,026 lb
Loader Lift (lb)	▲ 948 lb	794 lb
3-Pt Lift (24 in) (lb)	▲ 1,411 lb	771 lb
Lift Height (in)	▲ 78.5 in	68 in
Breakout Force (lbf)	▲ 2,146 lbf	1,433 lbf
Hydraulic Flow (gpm)	8.3 gpm	▲ 11.4 gpm
Travel Speed (mph)	▲ 11.9 mph	7.3 mph

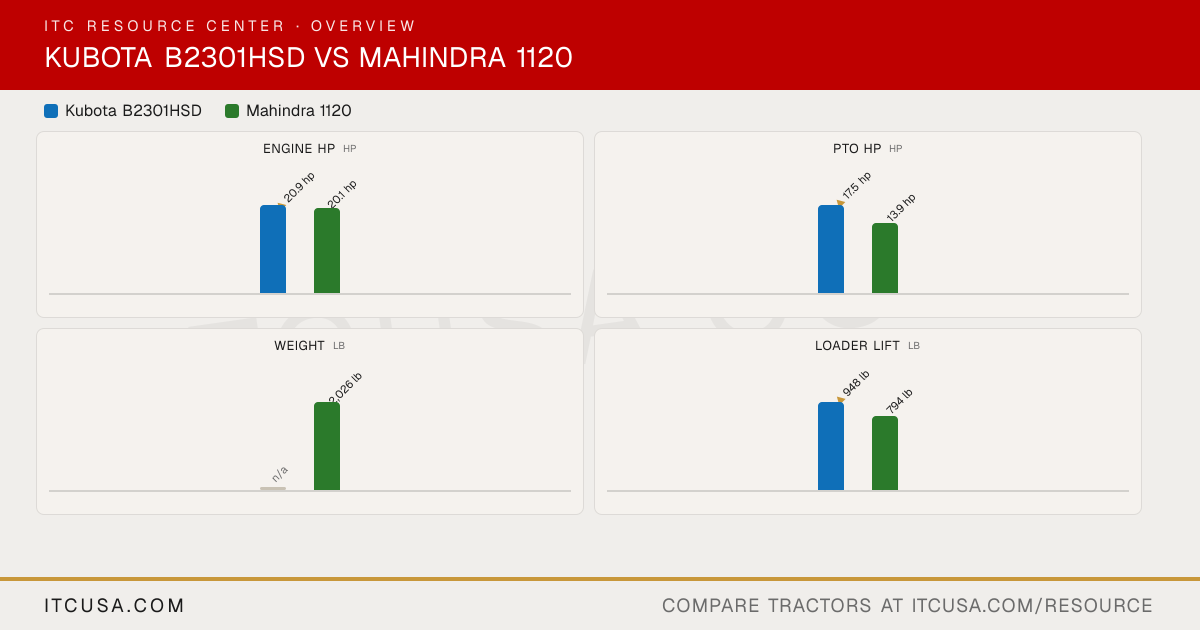

The headline numbers at a glance.

Kubota B2301HSDMahindra 1120

Engine HPhp

▲20.9 hp

20.1 hp

PTO HPhp

▲17.5 hp

13.9 hp

Weightlb

n/a

2,026 lb

Loader Liftlb

▲948 lb

794 lb

3-Pt Lift (24 in)lb

▲1,411 lb

771 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2301HSD	Mahindra1120


PTO Power	17.5 hp	13.9 hp
Alternator	Not Published	55 A, 12 V
Air Cleaner	Dual paper element	Not Published
Engine Type	E-TVCS, liquid cooled, 3-cylinder, diesel	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Fuel System	Not Published	Indirect Injection
Displacement	61.1 in³	67.2 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	2900 rpm
Cooling System Type	Pressurized radiator	Water-Cooled
Engine Manufacturer	Kubota	Mitsubishi
Engine Power (Gross)	20.9 hp	20.1 hp @ 900 rpm
Engine Emissions Constraints	Not Published	No DPF

Weight with ROPS and Loader	Not Published	2026 lb
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	7-Year Limited Powertrain Warranty

Pump Type	Dual pump	Not Published
Steering Flow	Not Published	3.8 gpm
Implement Flow	Not Published	7.6 gpm
Total Hydraulic Flow	8.3 gpm	11.4 gpm
Hydraulic System Type	Open center	Open Center, full-live hydraulic with position control
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	8.3 gpm	11.4 gpm
No. of Optional Remote Valves	Not Published	Single or dual
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm @ 2837 rpm
PTO Type	Independent	Independent Wet Clutch
Lift Control Type	Position control valve	Position Control
Hitch Lift Capacity	1808 lb	Not Published
Mid-PTO Availability	2500 rpm	Optional; 2500 rpm @ 2837 rpm
Category, 3-Point Hitch	Category I	CAT I with check chains
Hitch Lift Capacity (at 24”)	1411 lb	771 lb

R3 Turf - Rear	Not Published	26X12-12
R3 Turf - Front	Not Published	18X8.5-10
Tire Size & Options	R1 Agricultural	R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	26X12-12
R4 Industrial - Front	Not Published	18X8.5-10
R1 Agricultural - Rear	9.5-16	Not Published
R1 Agricultural - Front	8.0-12	Not Published

Coolant Capacity	4.0 qt	Not Published
Crankcase Capacity	3.3 qt	Not Published
Fuel Tank Capacity	6.1 gal	6.6 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	4.0 gal	Not Published

Loader Lift Height	78.5 in	68 in
Loader Breakout Force	2146 lb	1433 lb
Quick Attach Loader System	Swift-Tach Loader (LA435 - 2-Lever Quick Coupler (Optional))	L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
Loader Lift Capacity (Full Height)	948 lb	794 lb

Clutch	N/A	Not Applicable
No. of Speeds	3 ranges	Infinite / 2 ranges
Transmission Type	Hydrostatic transmission	HST
Max Travel Speed (Forward)	11.9 mph	7.3 mph
Max Travel Speed (Reverse)	8.9 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock standard	Not Published

Brakes	Multi-plate wet disc	Single Pedal
Steering	Hydraulic power steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	High-back seat designed to absorb shock; armrests standard (HST models)	Not Published

Wheelbase	61.4 in	55.1 in
Overall Width	45.3 in	46.3 in
Ground Clearance	12.0 in	6.7 in
Height to Top of ROPS	83.9 in	86.6 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	Not Published	100.4 in

Find a Kubota dealer near you Find a Mahindra dealer near you

Kubota B2301HSD vs Mahindra 1120: Quick Answers

Which has more horsepower, the Kubota B2301HSD or the Mahindra 1120?: The Kubota B2301HSD leads on engine hp at 20.9 hp hp, compared to 20.1 hp hp for the Mahindra 1120.
Which has more PTO horsepower, the Kubota B2301HSD or the Mahindra 1120?: The Kubota B2301HSD leads on pto hp at 17.5 hp hp, compared to 13.9 hp hp for the Mahindra 1120.
Which has more loader lift capacity, the Kubota B2301HSD or the Mahindra 1120?: The Kubota B2301HSD leads on loader lift at 948 lb lb, compared to 794 lb lb for the Mahindra 1120.
Which has more three-point hitch lift capacity, the Kubota B2301HSD or the Mahindra 1120?: The Kubota B2301HSD leads on 3-pt lift (24 in) at 1,411 lb lb, compared to 771 lb lb for the Mahindra 1120.

More Head-to-Heads

Category Verdict

Spec	Kubota B2301HSD	Mahindra 1120
Engine HP (hp)	▲ 20.9 hp	20.1 hp
PTO HP (hp)	▲ 17.5 hp	13.9 hp
Weight (lb)	n/a	2,026 lb
Loader Lift (lb)	▲ 948 lb	794 lb
3-Pt Lift (24 in) (lb)	▲ 1,411 lb	771 lb
Lift Height (in)	▲ 78.5 in	68 in
Breakout Force (lbf)	▲ 2,146 lbf	1,433 lbf
Hydraulic Flow (gpm)	8.3 gpm	▲ 11.4 gpm
Travel Speed (mph)	▲ 11.9 mph	7.3 mph

The headline numbers at a glance.

Kubota B2301HSDMahindra 1120

Engine HPhp

▲20.9 hp

20.1 hp

PTO HPhp

▲17.5 hp

13.9 hp

Weightlb

n/a

2,026 lb

Loader Liftlb

▲948 lb

794 lb

3-Pt Lift (24 in)lb

▲1,411 lb

771 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2301HSD	Mahindra1120


PTO Power	17.5 hp	13.9 hp
Alternator	Not Published	55 A, 12 V
Air Cleaner	Dual paper element	Not Published
Engine Type	E-TVCS, liquid cooled, 3-cylinder, diesel	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Fuel System	Not Published	Indirect Injection
Displacement	61.1 in³	67.2 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	2900 rpm
Cooling System Type	Pressurized radiator	Water-Cooled
Engine Manufacturer	Kubota	Mitsubishi
Engine Power (Gross)	20.9 hp	20.1 hp @ 900 rpm
Engine Emissions Constraints	Not Published	No DPF

Weight with ROPS and Loader	Not Published	2026 lb
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	7-Year Limited Powertrain Warranty

Pump Type	Dual pump	Not Published
Steering Flow	Not Published	3.8 gpm
Implement Flow	Not Published	7.6 gpm
Total Hydraulic Flow	8.3 gpm	11.4 gpm
Hydraulic System Type	Open center	Open Center, full-live hydraulic with position control
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	8.3 gpm	11.4 gpm
No. of Optional Remote Valves	Not Published	Single or dual
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm @ 2837 rpm
PTO Type	Independent	Independent Wet Clutch
Lift Control Type	Position control valve	Position Control
Hitch Lift Capacity	1808 lb	Not Published
Mid-PTO Availability	2500 rpm	Optional; 2500 rpm @ 2837 rpm
Category, 3-Point Hitch	Category I	CAT I with check chains
Hitch Lift Capacity (at 24”)	1411 lb	771 lb

R3 Turf - Rear	Not Published	26X12-12
R3 Turf - Front	Not Published	18X8.5-10
Tire Size & Options	R1 Agricultural	R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	26X12-12
R4 Industrial - Front	Not Published	18X8.5-10
R1 Agricultural - Rear	9.5-16	Not Published
R1 Agricultural - Front	8.0-12	Not Published

Coolant Capacity	4.0 qt	Not Published
Crankcase Capacity	3.3 qt	Not Published
Fuel Tank Capacity	6.1 gal	6.6 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	4.0 gal	Not Published

Loader Lift Height	78.5 in	68 in
Loader Breakout Force	2146 lb	1433 lb
Quick Attach Loader System	Swift-Tach Loader (LA435 - 2-Lever Quick Coupler (Optional))	L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
Loader Lift Capacity (Full Height)	948 lb	794 lb

Clutch	N/A	Not Applicable
No. of Speeds	3 ranges	Infinite / 2 ranges
Transmission Type	Hydrostatic transmission	HST
Max Travel Speed (Forward)	11.9 mph	7.3 mph
Max Travel Speed (Reverse)	8.9 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock standard	Not Published

Brakes	Multi-plate wet disc	Single Pedal
Steering	Hydraulic power steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	High-back seat designed to absorb shock; armrests standard (HST models)	Not Published

Wheelbase	61.4 in	55.1 in
Overall Width	45.3 in	46.3 in
Ground Clearance	12.0 in	6.7 in
Height to Top of ROPS	83.9 in	86.6 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	Not Published	100.4 in

Find a Kubota dealer near you Find a Mahindra dealer near you

Kubota B2301HSD vs Mahindra 1120: Quick Answers

Which has more horsepower, the Kubota B2301HSD or the Mahindra 1120?

The Kubota B2301HSD leads on engine hp at 20.9 hp hp, compared to 20.1 hp hp for the Mahindra 1120.

Which has more PTO horsepower, the Kubota B2301HSD or the Mahindra 1120?

The Kubota B2301HSD leads on pto hp at 17.5 hp hp, compared to 13.9 hp hp for the Mahindra 1120.

Which has more loader lift capacity, the Kubota B2301HSD or the Mahindra 1120?

The Kubota B2301HSD leads on loader lift at 948 lb lb, compared to 794 lb lb for the Mahindra 1120.

Which has more three-point hitch lift capacity, the Kubota B2301HSD or the Mahindra 1120?

The Kubota B2301HSD leads on 3-pt lift (24 in) at 1,411 lb lb, compared to 771 lb lb for the Mahindra 1120.
