Across 3 measurable specs, the Kubota B2301HSD leads 2 categories to 1. Machine pages: Kubota B2301HSD and Massey Ferguson MF 1520 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Kubota B2301HSD Massey Ferguson MF 1520 Engine HP (hp) ▲ 20.9 hp20 hp PTO HP (hp) 17.5 hp — Loader Lift (lb) 948 lb — 3-Pt Lift (24 in) (lb) ▲ 1,411 lb1,323 lb Lift Height (in) 78.5 in — Breakout Force (lbf) 2,146 lbf — Hydraulic Flow (gpm) 8.3 gpm ▲ 8.7 gpmTravel Speed (mph) 11.9 mph —

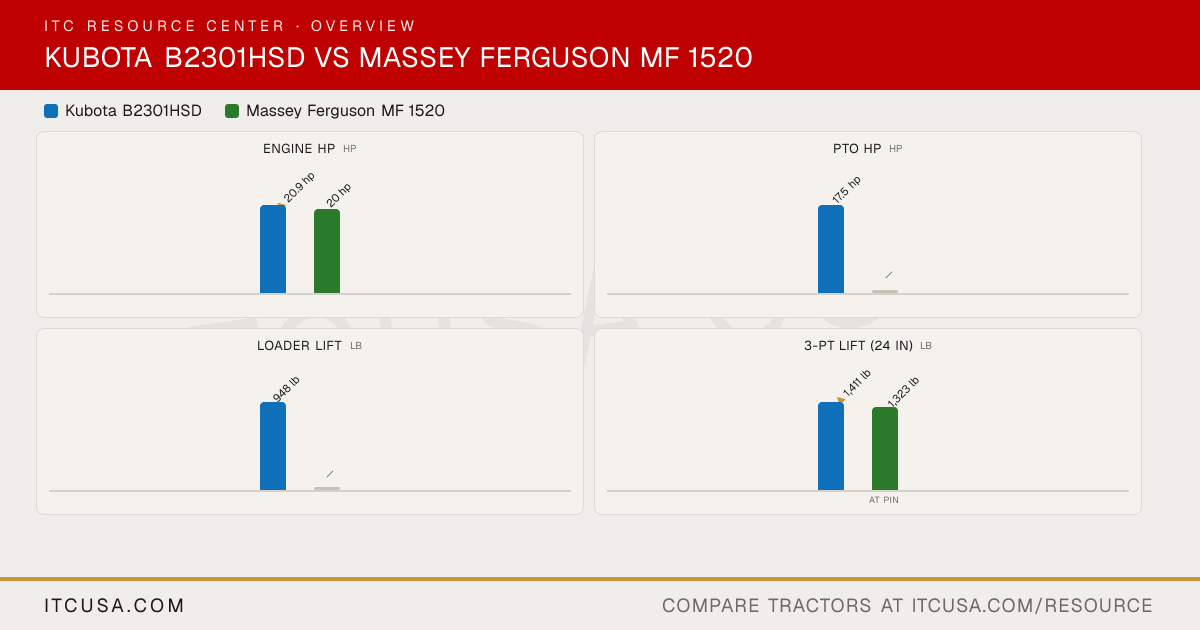

Overview Loader Work PTO Work
The headline numbers at a glance.
Kubota B2301HSD Massey Ferguson MF 1520
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Kubota B2301HSD Massey Ferguson MF 1520
▶ EnginePTO Power 17.5 hp Not Published Alternator Not Published Not Published Air Cleaner Dual paper element Not Published Engine Type E-TVCS, liquid cooled, 3-cylinder, diesel 3-cylinder diesel Fuel System Not Published Not Published Displacement 61.1 in³ 68.5 in³ No. of Cylinders 3 3 Rated Engine Speed 2800 rpm 2500 rpm Cooling System Type Pressurized radiator Not Published Engine Manufacturer Kubota Massey Ferguson (AGCO) Engine Power (Gross) 20.9 hp 20 hp Engine Emissions Constraints Not Published Not Published ▶ WeightWeight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Applicable Not Published ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. Not Published ▶ HydraulicsPump Type Dual pump Not Published Steering Flow Not Published 3.2 gpm Implement Flow Not Published 5.5 gpm Total Hydraulic Flow 8.3 gpm 8.7 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 8.3 gpm 8.7 gpm No. of Optional Remote Valves Not Published Not Published No. of Standard Remote Valves Not Published 1 ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent Sliding gear Lift Control Type Position control valve Not Published Hitch Lift Capacity 1808 lb 1,323 lb Mid-PTO Availability 2500 rpm Optional Category, 3-Point Hitch Category I Category I Hitch Lift Capacity (at 24”) 1411 lb Not Published ▶ Tire OptionsR3 Turf - Rear Not Published 315X75D-15 R3 Turf - Front Not Published 24X8.5-12 Tire Size & Options R1 Agricultural R1 Agricultural, R3 Turf R4 Industrial - Rear Not Published Not Applicable R4 Industrial - Front Not Published Not Applicable R1 Agricultural - Rear 9.5-16 9.5-16 R1 Agricultural - Front 8.0-12 6.0-12 ▶ Fluid CapacityCoolant Capacity 4.0 qt Not Published Crankcase Capacity 3.3 qt Not Published Fuel Tank Capacity 6.1 gal 7.4 gal Front Axle Fluid Capacity Not Published Not Published Transmission / Hydraulic System Capacity 4.0 gal Not Published ▶ Loader & AttachmentsLoader Lift Height 78.5 in Not Published Loader Breakout Force 2146 lb Not Published Quick Attach Loader System Swift-Tach Loader (LA435 - 2-Lever Quick Coupler (Optional)) Not Published Loader Lift Capacity (Full Height) 948 lb Not Published ▶ Transmission & DrivetrainClutch N/A Not Published No. of Speeds 3 ranges 8F / 8R Transmission Type Hydrostatic transmission Mechanical Max Travel Speed (Forward) 11.9 mph Not Published Max Travel Speed (Reverse) 8.9 mph Not Published Differential Lock & Limited Slip Options Differential lock standard Rear differential lock ▶ Chassis, Steering & ControlsBrakes Multi-plate wet disc Not Published Steering Hydraulic power steering Not Published Frame Type Not Published Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability High-back seat designed to absorb shock; armrests standard (HST models) Not Published ▶ Dimensions & ManeuverabilityWheelbase 61.4 in 61.4 in Overall Width 45.3 in 43.3 in Ground Clearance 12.0 in 9.6 in Height to Top of ROPS 83.9 in 79.1 in Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Overall Length with 3-Point Hitch Not Published 112.8 in
Kubota B2301HSD vs Massey Ferguson MF 1520: Quick Answers
Which has more horsepower, the Kubota B2301HSD or the Massey Ferguson MF 1520? The Kubota B2301HSD leads on engine hp at 20.9 hp hp, compared to 20 hp hp for the Massey Ferguson MF 1520.
Which has more three-point hitch lift capacity, the Kubota B2301HSD or the Massey Ferguson MF 1520? The Kubota B2301HSD leads on 3-pt lift (24 in) at 1,411 lb lb, compared to 1,323 lb lb for the Massey Ferguson MF 1520. More Head-to-Heads
