Kubota B2401 vs Kubota L2502F

Across 8 measurable specs, the Kubota L2502F leads 6 categories to 2. Machine pages: Kubota B2401 and Kubota L2502F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

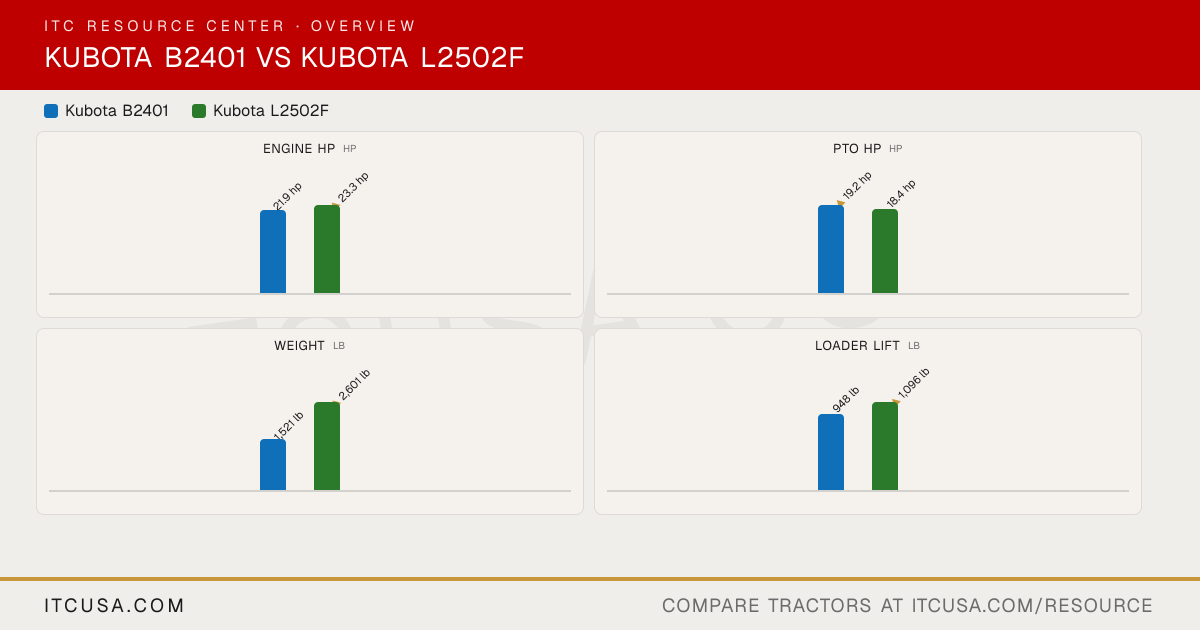

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2401	KubotaL2502F

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1105	D1703-M-DI-E4 / D1703-M-DI-E4K
Engine Type	E-TVCS, liquid cooled, 3-cylinder diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	68.5 in³	100.5 in³
Rated Engine Speed	2600 rpm	2200 rpm
Engine Power (Gross)	21.9 hp	23.3 hp
PTO Power	19.2 hp	18.4 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid Cooled	Water-cooled
Air Cleaner	Dual paper element	Dry type, single element
Fuel System	Not Published	Direct injection
Alternator	40 A	40 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Not Published
Implement Flow	4.4 gpm	5.2 gpm
Steering Flow	2.6 gpm	3.1 gpm
Total Hydraulic Flow	7.0 gpm	8.28 gpm (5.15 + 3.13, computed)
Overall Hydraulic Pump Flow	7.0 gpm	8.28 gpm (5.15 + 3.13, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.1 gal	11.1 gal
Coolant Capacity	4.0 qt	6.3 qt
Crankcase Capacity	3.3 qt	6.0 qt
Transmission / Hydraulic System Capacity	3.3 gal	7.4 gal
Front Axle Fluid Capacity	0.9 gal	Not Published
▶PTO & Hitch
PTO Type	Transmission driven with one way clutch	Transmission driven with overrunning clutch
PTO Rear	540, 1000 rpm	540 rpm
Mid-PTO Availability	2500 rpm	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	1653 lb	1874 lb
Hitch Lift Capacity (at 24”)	1290 lb	1389 lb
Lift Control Type	Position control valve	Position control
▶Transmission & Drivetrain
Transmission Type	Gear (9 Forward, 3 Reverse)	Constant mesh with synchronized shuttle
No. of Speeds	9 Forward, 3 Reverse	8 forward, 8 reverse
Max Travel Speed (Forward)	11.7 mph	10.7 mph
Max Travel Speed (Reverse)	6.0 mph	10.7 mph
Clutch	Dry single plate	Dry type single stage
Differential Lock & Limited Slip Options	Standard	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Integral type power steering	Integral type power steering
Brakes	Multi-plate wet disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Fore and aft slide adjustment (position adjust lever)	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Not Published	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	660 lb	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	93.9 in (without 3-point hitch)	110.6 in (without 3-point hitch)
Overall Width	44.3 in	55.1 in
Wheelbase	61.4 in	63.8 in
Ground Clearance	12.0 in	13.6 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	7.9 ft (with brake applied)
Height to Top of ROPS	83.9 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1521 lb	2601 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear; R14: 23x8.50-12 front, 12-16.5 rear	R1 Agricultural; R3 Turf
R1 Agricultural - Front	6-12	5.0-15
R1 Agricultural - Rear	9.5-16	11.2-24
R3 Turf - Front	23x8.50-12	23X8.50-12
R3 Turf - Rear	33x12.5-15	13.6-16
R4 Industrial - Front	23x8.50-12	Not Published
R4 Industrial - Rear	12-16.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	LA435 Swift-Tach Loader; 1-lever Quick Coupler (standard); 2-Lever Quick Coupler (optional)	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA435	LA526
Loader Lift Height	78.5 in	94.8 in
Loader Lift Capacity (Full Height)	948 lb	1096 lb
Loader Breakout Force	2,146 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Kubota dealer near you→

Kubota B2401 vs Kubota L2502F: Quick Answers

Which has more horsepower, the Kubota B2401 or the Kubota L2502F?

The Kubota L2502F leads on engine hp at 23.3 hp hp, compared to 21.9 hp hp for the Kubota B2401.

Which has more PTO horsepower, the Kubota B2401 or the Kubota L2502F?

The Kubota B2401 leads on pto hp at 19.2 hp hp, compared to 18.4 hp hp for the Kubota L2502F.

Which is heavier, the Kubota B2401 or the Kubota L2502F?

The Kubota L2502F leads on weight at 2,601 lb lb, compared to 1,521 lb lb for the Kubota B2401.

Which has more loader lift capacity, the Kubota B2401 or the Kubota L2502F?

The Kubota L2502F leads on loader lift at 1,096 lb lb, compared to 948 lb lb for the Kubota B2401.

Which has more three-point hitch lift capacity, the Kubota B2401 or the Kubota L2502F?

The Kubota L2502F leads on 3-pt lift (24 in) at 1,389 lb lb, compared to 1,290 lb lb for the Kubota B2401.
