Kubota B2401DTN vs Mahindra eMax 22L

Across 5 measurable specs, the Mahindra eMax 22L leads 4 categories to 1. Machine pages: Kubota B2401DTN and Mahindra eMax 22L.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

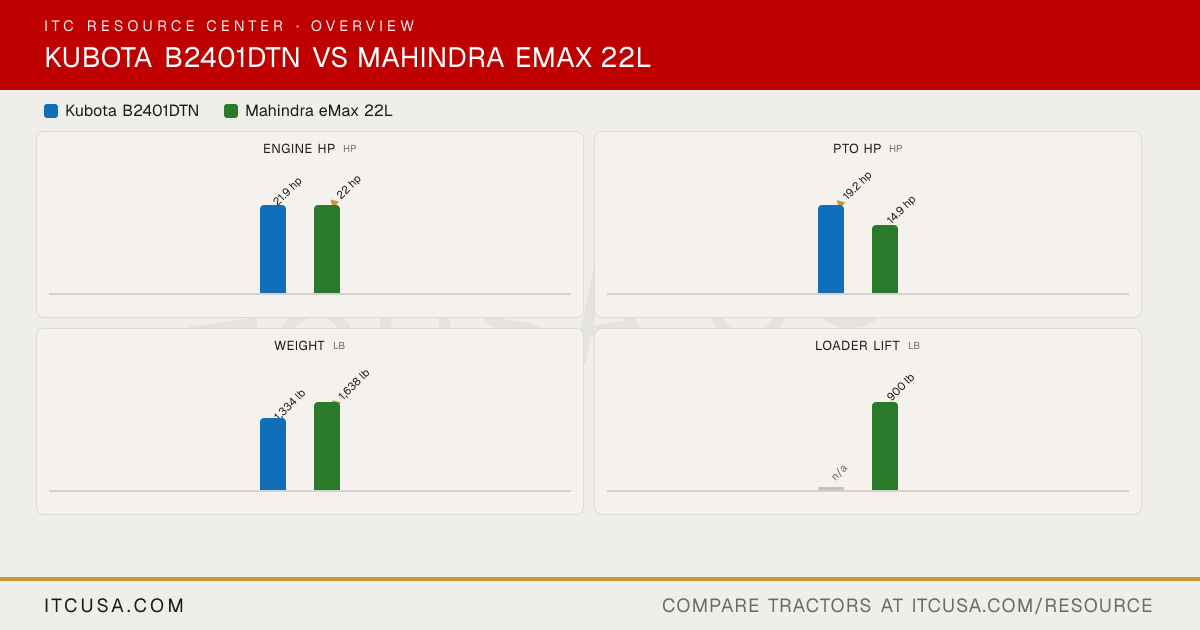

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2401DTN	MahindraeMax 22L

▶Engine
Engine Manufacturer	Kubota	Kukje
Engine Model	D1105	A1100N3
Engine Type	E-TVCS, liquid cooled, 3-cylinder diesel	Four-stroke, naturally aspirated, indirect injection, water-cooled diesel
No. of Cylinders	3	3
Displacement	68.5 in³	71.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	21.9 hp	22 hp
PTO Power	19.2 hp	14.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid Cooled	Water-cooled
Air Cleaner	Dual paper element	Not Published
Fuel System	Not Published	Indirect Injection
Alternator	40 A	50 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Not Published
Implement Flow	4.4 gpm	4.5 gpm
Steering Flow	2.6 gpm	Not Published
Total Hydraulic Flow	7.0 gpm	7.1 gpm
Overall Hydraulic Pump Flow	7.0 gpm	7.1 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.1 gal	5.8 gal
Coolant Capacity	4.0 qt	3.7 qt
Crankcase Capacity	3.3 qt	2.3 qt
Transmission / Hydraulic System Capacity	3.3 gal	Not Published
Front Axle Fluid Capacity	0.8 gal	Not Published
▶PTO & Hitch
PTO Type	Transmission driven with one way clutch	Independent
PTO Rear	540, 980 rpm	540 @ 2550 rpm
Mid-PTO Availability	Not Published	Available; 2000 @ 2550 rpm
Category, 3-Point Hitch	Category I	CAT I with Check Chains
Hitch Lift Capacity	1,653 lb	1,323 lb
Hitch Lift Capacity (at 24”)	1,290 lb	Not Published
Lift Control Type	Position control valve	Not Published
▶Transmission & Drivetrain
Transmission Type	Gear (9 Forward, 3 Reverse)	HST - 2 range
No. of Speeds	9 Forward, 3 Reverse	Infinite
Max Travel Speed (Forward)	10.9 mph	Not Published
Max Travel Speed (Reverse)	5.6 mph	Not Published
Clutch	Dry single plate	Dry-Single
Differential Lock & Limited Slip Options	Standard	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Integral type power steering	Power steering
Brakes	Multi-plate wet disc	Wet Disc
Seat Suspension & Adjustability	Fore and aft slide adjustment (position adjust lever)	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	660 lb	Not Published
▶Dimensions & Maneuverability
Overall Width	35.6 in	45.8 in
Wheelbase	61.4 in	57.5 in
Ground Clearance	11 in	9.4 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	7.2 ft
Height to Top of ROPS	75.2 in	91.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Applicable
Overall Length	92.9 in (without 3-point hitch)	100.5 in
▶Weight
Tractor Weight (Base)	1,433 lb	1,638 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Farm (R1): 5-12 front, 8-16 rear	Not Published
R1 Agricultural - Front	5-12	6x12
R1 Agricultural - Rear	8-16	9.5x16
R3 Turf - Front	Not Published	20x8-10
R3 Turf - Rear	Not Published	29x12.5-15
R4 Industrial - Front	Not Published	20x8-10
R4 Industrial - Rear	Not Published	27x12.5-15
▶Loader & Attachments
Quick Attach Loader System	Not Published	25LSK: Skid steer style quick coupler, standard
Loader Model	Not Published	25LSK
Loader Lift Height	Not Published	25LSK: 75.3 in
Loader Lift Capacity (Full Height)	Not Published	25LSK: 900 lb
Loader Breakout Force	Not Published	25LSK: 2,000 lb
▶Warranty
Warranty Length & Coverage	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00	None tagged yet

Find a Kubota dealer near you→Find a Mahindra dealer near you→

Kubota B2401DTN vs Mahindra eMax 22L: Quick Answers

Which has more horsepower, the Kubota B2401DTN or the Mahindra eMax 22L?

The Mahindra eMax 22L leads on engine hp at 22 hp hp, compared to 21.9 hp hp for the Kubota B2401DTN.

Which has more PTO horsepower, the Kubota B2401DTN or the Mahindra eMax 22L?

The Kubota B2401DTN leads on pto hp at 19.2 hp hp, compared to 14.9 hp hp for the Mahindra eMax 22L.

Which is heavier, the Kubota B2401DTN or the Mahindra eMax 22L?

The Mahindra eMax 22L leads on weight at 1,638 lb lb, compared to 1,433 lb lb for the Kubota B2401DTN.

Which has more three-point hitch lift capacity, the Kubota B2401DTN or the Mahindra eMax 22L?

The Mahindra eMax 22L leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 1,290 lb lb for the Kubota B2401DTN.
