Kubota B2650 vs Kubota LX2620

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota B2650 leads 6 categories to 0 (2 tied). Machine pages: Kubota B2650 and Kubota LX2620.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota B2650	Kubota LX2620
Engine HP (hp)	▲ 24.8 hp	23.3 hp
PTO HP (hp)	▲ 19.5 hp	19.4 hp
Weight (lb)	▲ 1,786 lb	1,775 lb
Loader Lift (lb)	▲ 1,146 lb	1,067 lb
3-Pt Lift (24 in) (lb)	1,676 lb	1,676 lb
Lift Height (in)	▲ 84.6 in	84 in
Breakout Force (lbf)	2,321 lbf	n/a
Hydraulic Flow (gpm)	8.7 gpm	8.7 gpm
Travel Speed (mph)	▲ 11.9 mph	11.2 mph

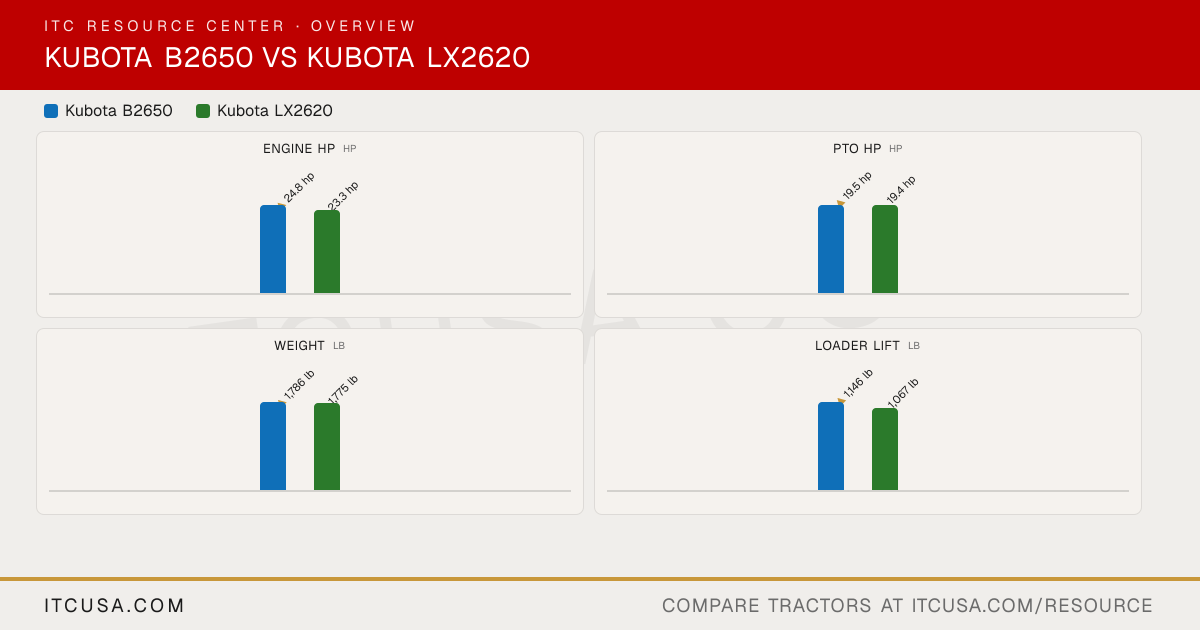

The headline numbers at a glance.

Kubota B2650Kubota LX2620

Engine HPhp

▲24.8 hp

23.3 hp

PTO HPhp

▲19.5 hp

19.4 hp

Weightlb

▲1,786 lb

1,775 lb

Loader Liftlb

▲1,146 lb

1,067 lb

3-Pt Lift (24 in)lb

▲1,676 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2650	KubotaLX2620


Engine Manufacturer	Kubota	Kubota
Engine Model	D1305-E4-D26-R	D1305-E4-D36R (LX2620HSD); D1305-E4-D26Q (LX2620HSDC); D1305-E4-D36R (LX2620SUHSD)
Engine Type	E-TVCS, liquid-cooled, 3-cylinder diesel	Indirect injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	77.0 in³	77.0 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.8 hp	23.3 hp
PTO Power	19.5 hp	19.4 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled, pressurized radiator	Pressurized radiator
Air Cleaner	4.0 in dual paper element	4.5 in paper filter with dual filter
Fuel System	Indirect injection	Indirect injection
Alternator	B2650HSD (ROPS): 14.5 A; B2650HSDC (cab): 40 A, 12 V	Not Published

Pump Type	Dual pump	Dual pump
Implement Flow	5 gpm	Not Published
Steering Flow	3.7 gpm	Not Published
Total Hydraulic Flow	8.7 gpm	8.7 gpm
Overall Hydraulic Pump Flow	8.7 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 (rear outlet)	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	7.3 gal	7.1 gal (LX2620HSD); 8.5 gal (LX2620HSDC); 7.1 gal (LX2620SUHSD)
Coolant Capacity	4.5 qt	4.5 qt (LX2620HSD); 5.7 qt (LX2620HSDC); 4.5 qt (LX2620SUHSD)
Crankcase Capacity	4.2 qt	4.2 qt
Transmission / Hydraulic System Capacity	4.0 gal	4.0 gal
Front Axle Fluid Capacity	Not Published	5.0 qt

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard mid-PTO, 2500 rpm	2500 rpm (LX2620HSD); 2500 rpm (LX2620HSDC); Optional (LX2620SUHSD)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2139 lb	2139 lb
Hitch Lift Capacity (at 24”)	1676 lb	1676 lb
Lift Control Type	Position control	Position control valve

Transmission Type	Hydrostatic transmission, 3-range	Hydrostatic transmission (HST), 3 ranges
No. of Speeds	3-range	3 ranges
Max Travel Speed (Forward)	11.9 mph	11.2 mph
Max Travel Speed (Reverse)	9.5 mph	8.4 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock standard	Differential lock standard

Frame Type	Two-post foldable ROPS (cab optional)	Not Published
Steering	Hydraulic power steering	Hydrostatic power steering
Brakes	Multi-plate wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Deluxe seat with parallel link and damper seat suspension	Deluxe seat with adjustable suspension (LX2620HSD); Deluxe seat with adjustable suspension (LX2620HSDC); Standard seat with normal suspension (LX2620SUHSD)
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb

Overall Length with 3-Point Hitch	101.2 in (w/o 3P) (without 3-point hitch)	101.8 in (LX2620HSD); 103.9 in (LX2620HSDC); 101.8 in (LX2620SUHSD) (without 3-point hitch)
Overall Width	53.7 in	53.7 in
Wheelbase	65.6 in	65.6 in
Ground Clearance	14.6 in	14.6 in
Min. Turn Radius without Brakes	6.9 ft (w/brake) (with brake applied)	6.9 ft (with brake applied)
Height to Top of ROPS	88.4 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	84.6 in	84.6 in

Tractor Weight (Base)	1786 lb	1775 lb (LX2620HSD); 2249 lb (LX2620HSDC); 1775 lb (LX2620SUHSD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard farm (R1): 7-12 front, 12.4-16 rear; turf and industrial optional	R1 Agricultural, R3 Turf, R4 Industrial (R14 hybrid also offered)
R1 Agricultural - Front	7-12	180/85D12 (7-12)
R1 Agricultural - Rear	12.4-16	320/85D16 (12.4-16)
R3 Turf - Front	24x8.50-14	24x8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	23x8.50-14	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	12.4-16	14-17.5 or 15-19.5

Quick Attach Loader System	LA534A: 2-lever quick coupler (optional), quick attach/detach mounting	LA535: 2-lever quick coupler standard; Swift-tach optional
Loader Model	LA534A	LA535
Loader Lift Height	LA534A: 84.6 in	LA535: 84 in
Loader Lift Capacity (Full Height)	LA534A: 1146 lb	LA535: 1067 lb
Loader Breakout Force	LA534A: 2321 lbf	Not Published

Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Find a Kubota dealer near you

Kubota B2650 vs Kubota LX2620: Quick Answers

Which has more horsepower, the Kubota B2650 or the Kubota LX2620?: The Kubota B2650 leads on engine hp at 24.8 hp hp, compared to 23.3 hp hp for the Kubota LX2620.
Which has more PTO horsepower, the Kubota B2650 or the Kubota LX2620?: The Kubota B2650 leads on pto hp at 19.5 hp hp, compared to 19.4 hp hp for the Kubota LX2620.
Which is heavier, the Kubota B2650 or the Kubota LX2620?: The Kubota B2650 leads on weight at 1,786 lb lb, compared to 1,775 lb lb for the Kubota LX2620.
Which has more loader lift capacity, the Kubota B2650 or the Kubota LX2620?: The Kubota B2650 leads on loader lift at 1,146 lb lb, compared to 1,067 lb lb for the Kubota LX2620.
Which has more three-point hitch lift capacity, the Kubota B2650 or the Kubota LX2620?: They are effectively tied: both machines are rated at 1,676 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Kubota B2650	Kubota LX2620
Engine HP (hp)	▲ 24.8 hp	23.3 hp
PTO HP (hp)	▲ 19.5 hp	19.4 hp
Weight (lb)	▲ 1,786 lb	1,775 lb
Loader Lift (lb)	▲ 1,146 lb	1,067 lb
3-Pt Lift (24 in) (lb)	1,676 lb	1,676 lb
Lift Height (in)	▲ 84.6 in	84 in
Breakout Force (lbf)	2,321 lbf	n/a
Hydraulic Flow (gpm)	8.7 gpm	8.7 gpm
Travel Speed (mph)	▲ 11.9 mph	11.2 mph

The headline numbers at a glance.

Kubota B2650Kubota LX2620

Engine HPhp

▲24.8 hp

23.3 hp

PTO HPhp

▲19.5 hp

19.4 hp

Weightlb

▲1,786 lb

1,775 lb

Loader Liftlb

▲1,146 lb

1,067 lb

3-Pt Lift (24 in)lb

▲1,676 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2650	KubotaLX2620


Engine Manufacturer	Kubota	Kubota
Engine Model	D1305-E4-D26-R	D1305-E4-D36R (LX2620HSD); D1305-E4-D26Q (LX2620HSDC); D1305-E4-D36R (LX2620SUHSD)
Engine Type	E-TVCS, liquid-cooled, 3-cylinder diesel	Indirect injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	77.0 in³	77.0 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.8 hp	23.3 hp
PTO Power	19.5 hp	19.4 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled, pressurized radiator	Pressurized radiator
Air Cleaner	4.0 in dual paper element	4.5 in paper filter with dual filter
Fuel System	Indirect injection	Indirect injection
Alternator	B2650HSD (ROPS): 14.5 A; B2650HSDC (cab): 40 A, 12 V	Not Published

Pump Type	Dual pump	Dual pump
Implement Flow	5 gpm	Not Published
Steering Flow	3.7 gpm	Not Published
Total Hydraulic Flow	8.7 gpm	8.7 gpm
Overall Hydraulic Pump Flow	8.7 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 (rear outlet)	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	7.3 gal	7.1 gal (LX2620HSD); 8.5 gal (LX2620HSDC); 7.1 gal (LX2620SUHSD)
Coolant Capacity	4.5 qt	4.5 qt (LX2620HSD); 5.7 qt (LX2620HSDC); 4.5 qt (LX2620SUHSD)
Crankcase Capacity	4.2 qt	4.2 qt
Transmission / Hydraulic System Capacity	4.0 gal	4.0 gal
Front Axle Fluid Capacity	Not Published	5.0 qt

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard mid-PTO, 2500 rpm	2500 rpm (LX2620HSD); 2500 rpm (LX2620HSDC); Optional (LX2620SUHSD)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2139 lb	2139 lb
Hitch Lift Capacity (at 24”)	1676 lb	1676 lb
Lift Control Type	Position control	Position control valve

Transmission Type	Hydrostatic transmission, 3-range	Hydrostatic transmission (HST), 3 ranges
No. of Speeds	3-range	3 ranges
Max Travel Speed (Forward)	11.9 mph	11.2 mph
Max Travel Speed (Reverse)	9.5 mph	8.4 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock standard	Differential lock standard

Frame Type	Two-post foldable ROPS (cab optional)	Not Published
Steering	Hydraulic power steering	Hydrostatic power steering
Brakes	Multi-plate wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Deluxe seat with parallel link and damper seat suspension	Deluxe seat with adjustable suspension (LX2620HSD); Deluxe seat with adjustable suspension (LX2620HSDC); Standard seat with normal suspension (LX2620SUHSD)
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb

Overall Length with 3-Point Hitch	101.2 in (w/o 3P) (without 3-point hitch)	101.8 in (LX2620HSD); 103.9 in (LX2620HSDC); 101.8 in (LX2620SUHSD) (without 3-point hitch)
Overall Width	53.7 in	53.7 in
Wheelbase	65.6 in	65.6 in
Ground Clearance	14.6 in	14.6 in
Min. Turn Radius without Brakes	6.9 ft (w/brake) (with brake applied)	6.9 ft (with brake applied)
Height to Top of ROPS	88.4 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	84.6 in	84.6 in

Tractor Weight (Base)	1786 lb	1775 lb (LX2620HSD); 2249 lb (LX2620HSDC); 1775 lb (LX2620SUHSD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard farm (R1): 7-12 front, 12.4-16 rear; turf and industrial optional	R1 Agricultural, R3 Turf, R4 Industrial (R14 hybrid also offered)
R1 Agricultural - Front	7-12	180/85D12 (7-12)
R1 Agricultural - Rear	12.4-16	320/85D16 (12.4-16)
R3 Turf - Front	24x8.50-14	24x8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	23x8.50-14	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	12.4-16	14-17.5 or 15-19.5

Quick Attach Loader System	LA534A: 2-lever quick coupler (optional), quick attach/detach mounting	LA535: 2-lever quick coupler standard; Swift-tach optional
Loader Model	LA534A	LA535
Loader Lift Height	LA534A: 84.6 in	LA535: 84 in
Loader Lift Capacity (Full Height)	LA534A: 1146 lb	LA535: 1067 lb
Loader Breakout Force	LA534A: 2321 lbf	Not Published

Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Find a Kubota dealer near you

Kubota B2650 vs Kubota LX2620: Quick Answers

Which has more horsepower, the Kubota B2650 or the Kubota LX2620?

The Kubota B2650 leads on engine hp at 24.8 hp hp, compared to 23.3 hp hp for the Kubota LX2620.

Which has more PTO horsepower, the Kubota B2650 or the Kubota LX2620?

The Kubota B2650 leads on pto hp at 19.5 hp hp, compared to 19.4 hp hp for the Kubota LX2620.

Which is heavier, the Kubota B2650 or the Kubota LX2620?

The Kubota B2650 leads on weight at 1,786 lb lb, compared to 1,775 lb lb for the Kubota LX2620.

Which has more loader lift capacity, the Kubota B2650 or the Kubota LX2620?

The Kubota B2650 leads on loader lift at 1,146 lb lb, compared to 1,067 lb lb for the Kubota LX2620.

Which has more three-point hitch lift capacity, the Kubota B2650 or the Kubota LX2620?

They are effectively tied: both machines are rated at 1,676 lb lb for 3-pt lift (24 in).
