Kubota BX1880 vs TYM 1905

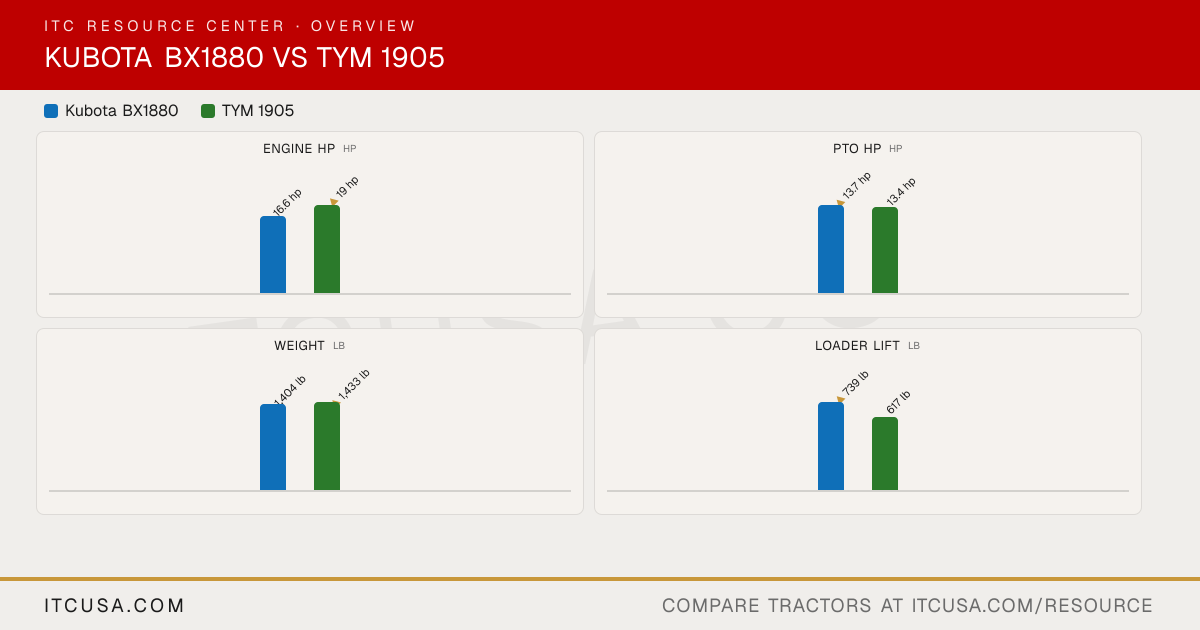

Across 9 measurable specs, this matchup is a dead heat: 4 categories to the Kubota BX1880, 4 to the TYM 1905, 1 tied. Machine pages: Kubota BX1880 and TYM 1905.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX1880	TYM1905

▶Engine
Engine Manufacturer	Kubota	Yanmar
Engine Model	D722	3TNV74F
Engine Type	Liquid cooled, 4-cycle, diesel	Diesel, swirl chamber combustion, naturally aspirated
No. of Cylinders	3	3
Displacement	43.9 in³	60.6 in³
Rated Engine Speed	3200 rpm	3000 rpm
Engine Power (Gross)	16.6 hp	19 hp
PTO Power	13.7 hp	13.4 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water with pressurized radiator, reverse air-flow design	Liquid-cooled
Air Cleaner	Dry element	Dry, single filter element
Fuel System	Direct injection	Indirect injection (swirl chamber)
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Open center tandem pump gear type	Single gear pump with flow divider
Implement Flow	5.2 gpm	4.17 gpm
Steering Flow	1.0 gpm	2.11 gpm
Total Hydraulic Flow	6.2 gpm	6.28 gpm (4.17 + 2.11, computed)
Overall Hydraulic Pump Flow	6.2 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None (2-valve rear remote coupler optional)	Not Published
No. of Optional Remote Valves	2 (optional; ISO 7241-1 series A or B)	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	3.1 qt	3.7 qt
Crankcase Capacity	3.2 qt	2.1 qt
Transmission / Hydraulic System Capacity	3.0 gal	3.6 gal
Front Axle Fluid Capacity	3.8 qt	2.6 qt
▶PTO & Hitch
PTO Type	Live independent PTO (with hydraulic clutch)	Transmission-driven (over-running clutch)
PTO Rear	STD (540 rpm)	Not Published
Mid-PTO Availability	STD (2500 rpm)	Not Published
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity	1,151 lb	1,100 lb
Hitch Lift Capacity (at 24”)	680 lb	679 lb
Lift Control Type	Quarter-inching valve	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission	Hydrostatic (HST)
No. of Speeds	2 Range (Low-High)	Infinite (2-range HST)
Max Travel Speed (Forward)	7.8 mph	7.8 mph
Max Travel Speed (Reverse)	5.9 mph	7.8 mph
Clutch	None (HST)	Dry, single
Differential Lock & Limited Slip Options	Rear differential lock standard	Not Published
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS	Not Published
Steering	Hydrostatic type power steering	Hydrostatic power steering
Brakes	Mechanical, wet disc type	Wet disc
Seat Suspension & Adjustability	Fore/aft slide adjustment (position adjust lever)	Not Published
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Max. drawbar load @ hitch: 550 lb	Not Published
▶Dimensions & Maneuverability
Overall Width	44.1 in	44.5 in
Wheelbase	55.1 in	53.1 in
Ground Clearance	5.8 in	8.3 in
Min. Turn Radius without Brakes	7.5 ft	Not Published
Height to Top of ROPS	81.9 in	86.6 in
Height to Top of ROPS (folded)	Not Published	60 in
Height to Top of Cab Model	Not Published	Not Published
Overall Length	95.5 in (with 3-point hitch)	94.2 in
▶Weight
Tractor Weight (Base)	1,404 lb	1,433 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf	Turf: 18x8.5-10 front, 26x12-12 rear; Industrial: 18x8.5-10 front, 26x12-12 rear
R1 Agricultural - Front	16X7.5-8	16x7.50-9
R1 Agricultural - Rear	24X12-12	24x12.00-12
R3 Turf - Front	16X7.5-8	Not Published
R3 Turf - Rear	24X12-12	Not Published
R4 Industrial - Front	Not Published	18x8.5-10
R4 Industrial - Rear	Not Published	26x12-12
▶Loader & Attachments
Quick Attach Loader System	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)	BL90: Standard pin-on (skid steer quick-attach optional)
Loader Model	LA344S (standard, quick attach); LA344 (pin-on option)	BL90
Loader Lift Height	70.7 in	BL90: 71.3 in
Loader Lift Capacity (Full Height)	739 lb (LA344 pin-on); 613 lb (LA344S quick attach)	BL90: 617 lb (at pivot pin, full height)
Loader Breakout Force	1,407 lbf (LA344 pin-on); 1,286 lbf (LA344S quick attach)	BL90: 1,235 lbf (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours	Basic two years or 1,000 hours; powertrain 7 years or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Kubota BX80 Series Brush Guard Insert (S/N C1630 and up) $259.00 S/N C1630 and after Kubota BX80 Series Brush Guard Insert (S/N before C1630) $299.00 S/N before C1630	None tagged yet

Find a Kubota dealer near you→Find a TYM dealer near you→

Kubota BX1880 vs TYM 1905: Quick Answers

Which has more horsepower, the Kubota BX1880 or the TYM 1905?

The TYM 1905 leads on engine hp at 19 hp hp, compared to 16.6 hp hp for the Kubota BX1880.

Which has more PTO horsepower, the Kubota BX1880 or the TYM 1905?

The Kubota BX1880 leads on pto hp at 13.7 hp hp, compared to 13.4 hp hp for the TYM 1905.

Which is heavier, the Kubota BX1880 or the TYM 1905?

The TYM 1905 leads on weight at 1,433 lb lb, compared to 1,404 lb lb for the Kubota BX1880.

Which has more loader lift capacity, the Kubota BX1880 or the TYM 1905?

The Kubota BX1880 leads on loader lift at 739 lb lb, compared to 617 lb lb for the TYM 1905.

Which has more three-point hitch lift capacity, the Kubota BX1880 or the TYM 1905?

The Kubota BX1880 leads on 3-pt lift (24 in) at 680 lb lb, compared to 679 lb lb for the TYM 1905.
