Across 8 measurable specs, the Bad Boy Tractors 4025 leads 8 categories to 0. Machine pages: Bad Boy Tractors 4025 and TYM 1905 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

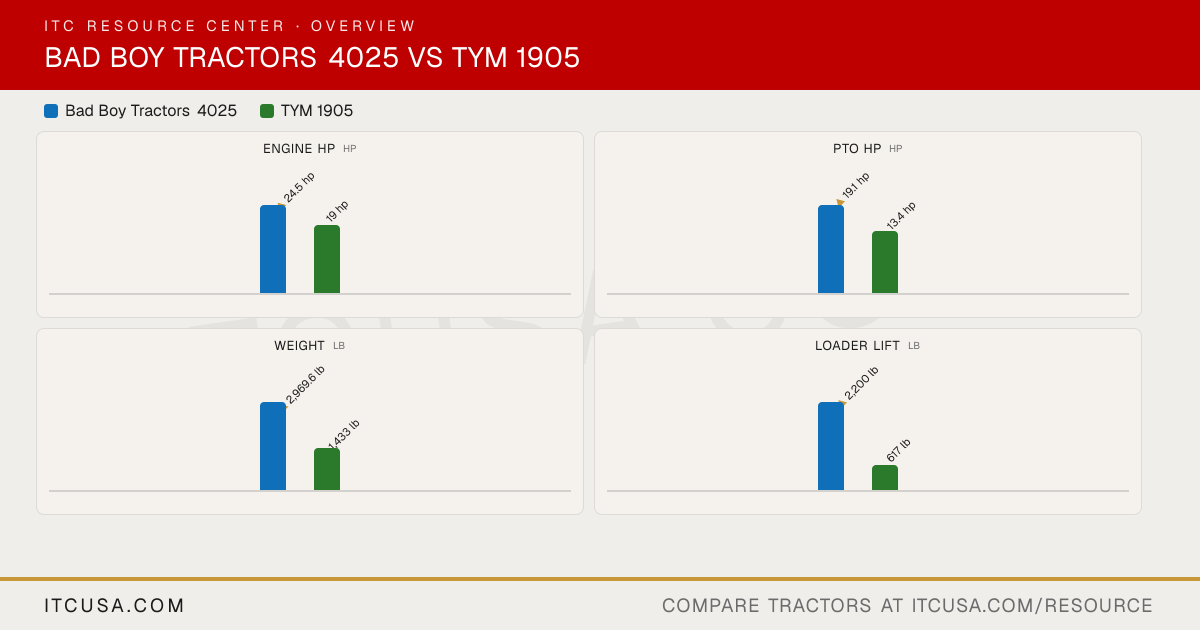

Category Verdict Spec Bad Boy Tractors 4025 TYM 1905 Engine HP (hp) ▲ 24.5 hp19 hp PTO HP (hp) ▲ 19.1 hp13.4 hp Weight (lb) ▲ 2,969.6 lb1,433 lb Loader Lift (lb) ▲ 2,200 lb617 lb 3-Pt Lift (24 in) (lb) ▲ 2,425 lb679 lb Lift Height (in) ▲ 104 in71.3 in Breakout Force (lbf) ▲ 3,660 lbf1,235 lbf Hydraulic Flow (gpm) ▲ 11.5 gpm6.3 gpm Travel Speed (mph) n/a 7.8 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 4025 TYM 1905
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 4025 TYM 1905
▶ EngineEngine Manufacturer TYM Yanmar Engine Model A1700N6-BUTR_3 3TNV74F Engine Type Vertical, 4-stroke, water-cooled diesel Diesel, swirl chamber combustion, naturally aspirated No. of Cylinders 3 3 Displacement 104.7 in³ 60.6 in³ Rated Engine Speed 2100 rpm 3000 rpm Engine Power (Gross) 24.5 hp 19 hp PTO Power 19.1 hp 13.4 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry Dry, single filter element Fuel System Not Published Indirect injection (swirl chamber) Alternator 50 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev) Single gear pump with flow divider Implement Flow 7.5 gpm 4.17 gpm Steering Flow 4 gpm 2.11 gpm Total Hydraulic Flow 11.5 gpm 6.28 gpm Overall Hydraulic Pump Flow 11.5 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 2 Not Published ▶ Fluid CapacityFuel Tank Capacity 7.13 gal 6.6 gal Coolant Capacity 1.32 gal 3.7 qt Crankcase Capacity 1.14 gal 2.1 qt Transmission / Hydraulic System Capacity Manual: 8.98 gal; HST: 9.77 gal 3.6 gal Front Axle Fluid Capacity Not Published 2.6 qt ▶ PTO & HitchPTO Type Independent Transmission-driven (over-running clutch) PTO Rear 533 rpm Not Published Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,306.9 lb 1,100 lb Hitch Lift Capacity (at 24”) 2,425 lb 679 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) Hydrostatic (HST) No. of Speeds 3 range (A/B/C) Infinite (2-range HST) Max Travel Speed (Forward) Not Published 7.8 mph Max Travel Speed (Reverse) Not Published 7.8 mph Clutch None (HST) Dry, single Differential Lock & Limited Slip Options Mechanical rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Heavy-duty steel frame with cast iron axles Not Published Steering Fully hydraulic power steering Hydrostatic power steering Brakes Wet multi-disc Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Selectable 4WD 4WD (MFWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 134.88 in 94.2 in Overall Width 56.7 in 44.5 in Wheelbase 65.7 in 53.1 in Ground Clearance 15 in 8.3 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 96.85 in 86.6 in Height to Top of ROPS (folded) Not Published 60 in Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2,969.6 lb 1,433 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5) Turf: 18x8.5-10 front / 26x12-12 rear; Industrial: 18x8.5-10 front / 26x12-12 rear R1 Agricultural - Front 8.0-16 16x7.50-9 R1 Agricultural - Rear 12.4-24 24x12.00-12 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 25x8.50-14 18x8.5-10 R4 Industrial - Rear 15-19.5 26x12-12 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach front loader BL90: Standard pin-on (skid steer quick-attach optional) Loader Model BBL400 BL90 Loader Lift Height 104 in BL90: 71.3 in Loader Lift Capacity (Full Height) 2,200 lb BL90: 617 lb Loader Breakout Force 3,660 lbf BL90: 1,235 lbf ▶ WarrantyWarranty Length & Coverage Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours 2 years or 1,000 hours bumper-to-bumper; 7 years or 2,000 hours powertrain and engine (whichever comes first) ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bad Boy Tractors 4025 vs TYM 1905: Quick Answers
Which has more horsepower, the Bad Boy Tractors 4025 or the TYM 1905? The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 19 hp hp for the TYM 1905.
Which has more PTO horsepower, the Bad Boy Tractors 4025 or the TYM 1905? The Bad Boy Tractors 4025 leads on pto hp at 19.1 hp hp, compared to 13.4 hp hp for the TYM 1905.
Which is heavier, the Bad Boy Tractors 4025 or the TYM 1905? The Bad Boy Tractors 4025 leads on weight at 2,969.6 lb lb, compared to 1,433 lb lb for the TYM 1905.
Which has more loader lift capacity, the Bad Boy Tractors 4025 or the TYM 1905? The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 617 lb lb for the TYM 1905.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the TYM 1905? The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 679 lb lb for the TYM 1905. More Head-to-Heads
