Kubota BX25D vs Kubota LX2620

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Kubota LX2620 leads 7 categories to 0. Machine pages: Kubota BX25D and Kubota LX2620.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota BX25D	Kubota LX2620
Engine HP (hp)	23 hp	▲ 23.3 hp
PTO HP (hp)	17.5 hp	▲ 19.4 hp
Weight (lb)	1,587 lb	▲ 1,775 lb
Loader Lift (lb)	745 lb	▲ 1,067 lb
3-Pt Lift (24 in) (lb)	670 lb	▲ 1,676 lb
Lift Height (in)	71.3 in	▲ 84 in
Breakout Force (lbf)	992 lbf	n/a
Hydraulic Flow (gpm)	6.2 gpm	▲ 8.7 gpm
Travel Speed (mph)	n/a	11.2 mph

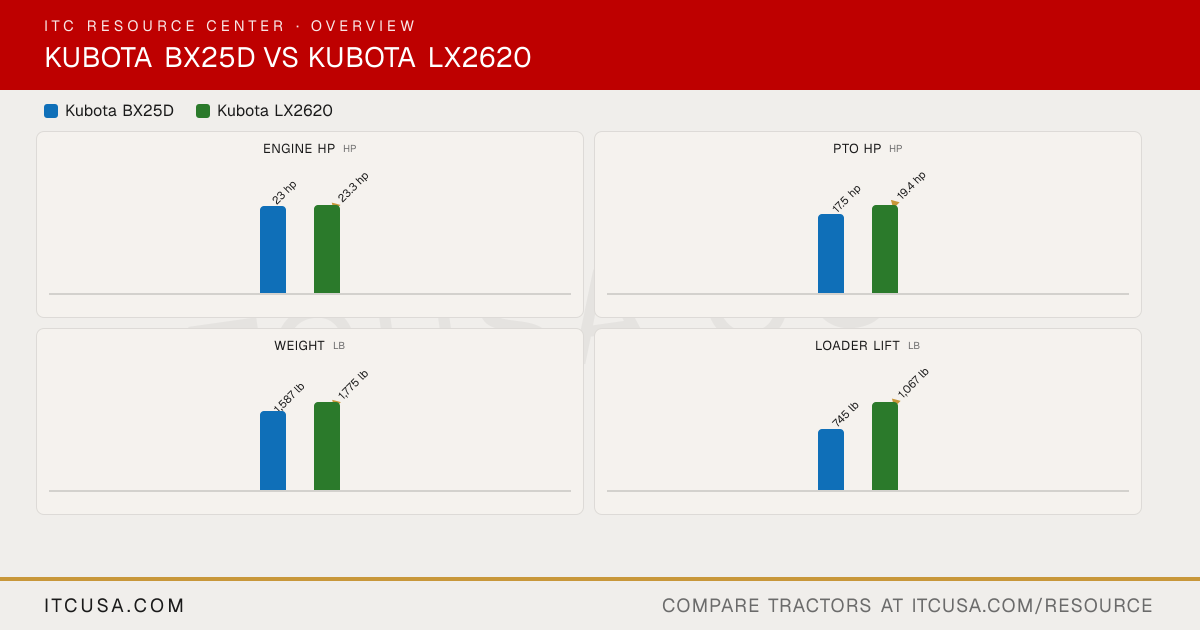

The headline numbers at a glance.

Kubota BX25DKubota LX2620

Engine HPhp

23 hp

▲23.3 hp

PTO HPhp

17.5 hp

▲19.4 hp

Weightlb

1,587 lb

▲1,775 lb

Loader Liftlb

745 lb

▲1,067 lb

3-Pt Lift (24 in)lb

670 lb

▲1,676 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX25D	KubotaLX2620


Engine Manufacturer	Kubota	Kubota
Engine Model	D902	D1305-E4-D36R (LX2620HSD); D1305-E4-D26Q (LX2620HSDC); D1305-E4-D36R (LX2620SUHSD)
Engine Type	Diesel, 3-cylinder, liquid-cooled inline	Indirect injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	54.8 in³	77.0 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	23 hp	23.3 hp
PTO Power	17.5 hp	19.4 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Pressurized radiator
Air Cleaner	Not Published	4.5 in paper filter with dual filter
Fuel System	Not Published	Indirect injection
Alternator	Not Published	Not Published

Pump Type	Not Published	Dual pump
Implement Flow	6.2 gpm	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	Not Published	8.7 gpm
Overall Hydraulic Pump Flow	6.2 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	6.6 gal	7.1 gal (LX2620HSD); 8.5 gal (LX2620HSDC); 7.1 gal (LX2620SUHSD)
Coolant Capacity	2.8 qt	4.5 qt (LX2620HSD); 5.7 qt (LX2620HSDC); 4.5 qt (LX2620SUHSD)
Crankcase Capacity	3.3 qt	4.2 qt
Transmission / Hydraulic System Capacity	Not Published	4.0 gal
Front Axle Fluid Capacity	Not Published	5.0 qt

PTO Type	Independent (rear); independent (mid)	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Mid-PTO, 2500 rpm	2500 rpm (LX2620HSD); 2500 rpm (LX2620HSDC); Optional (LX2620SUHSD)
Category, 3-Point Hitch	Category I (optional)	Category I
Hitch Lift Capacity	992 lb	2139 lb
Hitch Lift Capacity (at 24”)	670 lb	1676 lb
Lift Control Type	Position control	Position control valve

Transmission Type	Not Published	Hydrostatic transmission (HST), 3 ranges
No. of Speeds	Not Published	3 ranges
Max Travel Speed (Forward)	Not Published	11.2 mph
Max Travel Speed (Reverse)	Not Published	8.4 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock standard

Frame Type	Two-post folding ROPS (canopy optional)	Not Published
Steering	Hydrostatic type power steering	Hydrostatic power steering
Brakes	Wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Not Published	Deluxe seat with adjustable suspension (LX2620HSD); Deluxe seat with adjustable suspension (LX2620HSDC); Standard seat with normal suspension (LX2620SUHSD)
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	551 lb	1100 lb

Overall Length with 3-Point Hitch	95.5 in (tractor alone)	101.8 in (LX2620HSD); 103.9 in (LX2620HSDC); 101.8 in (LX2620SUHSD) (without 3-point hitch)
Overall Width	44.5 in	53.7 in
Wheelbase	55.1 in	65.6 in
Ground Clearance	8.7 in (front axle)	14.6 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	87.2 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	84.6 in

Tractor Weight (Base)	1587 lb (tractor only)	1775 lb (LX2620HSD); 2249 lb (LX2620HSDC); 1775 lb (LX2620SUHSD)
Weight with ROPS and Loader	2475 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	18x8.5-10 front, 26x12-12 rear (Turf/Bar/Industrial)	R1 Agricultural, R3 Turf, R4 Industrial (R14 hybrid also offered)
R1 Agricultural - Front	Not Published	180/85D12 (7-12)
R1 Agricultural - Rear	Not Published	320/85D16 (12.4-16)
R3 Turf - Front	Not Published	24x8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	18x8.5-10	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	26x12-12	14-17.5 or 15-19.5

Quick Attach Loader System	LA240A quick attach loader	LA535: 2-lever quick coupler standard; Swift-tach optional
Loader Model	LA240A; LA240A AU-SG (spill guard)	LA535
Loader Lift Height	LA240A: 71.3 in (at pin)	LA535: 84 in
Loader Lift Capacity (Full Height)	LA240A: 745 lb (at pin)	LA535: 1067 lb
Loader Breakout Force	LA240A: 992 lb (at 19.7 in) (19.7 in forward of pivot pin)	Not Published

Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Find a Kubota dealer near you

Kubota BX25D vs Kubota LX2620: Quick Answers

Which has more horsepower, the Kubota BX25D or the Kubota LX2620?: The Kubota LX2620 leads on engine hp at 23.3 hp hp, compared to 23 hp hp for the Kubota BX25D.
Which has more PTO horsepower, the Kubota BX25D or the Kubota LX2620?: The Kubota LX2620 leads on pto hp at 19.4 hp hp, compared to 17.5 hp hp for the Kubota BX25D.
Which is heavier, the Kubota BX25D or the Kubota LX2620?: The Kubota LX2620 leads on weight at 1,775 lb lb, compared to 1,587 lb lb for the Kubota BX25D.
Which has more loader lift capacity, the Kubota BX25D or the Kubota LX2620?: The Kubota LX2620 leads on loader lift at 1,067 lb lb, compared to 745 lb lb for the Kubota BX25D.
Which has more three-point hitch lift capacity, the Kubota BX25D or the Kubota LX2620?: The Kubota LX2620 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 670 lb lb for the Kubota BX25D.

More Head-to-Heads

Category Verdict

Spec	Kubota BX25D	Kubota LX2620
Engine HP (hp)	23 hp	▲ 23.3 hp
PTO HP (hp)	17.5 hp	▲ 19.4 hp
Weight (lb)	1,587 lb	▲ 1,775 lb
Loader Lift (lb)	745 lb	▲ 1,067 lb
3-Pt Lift (24 in) (lb)	670 lb	▲ 1,676 lb
Lift Height (in)	71.3 in	▲ 84 in
Breakout Force (lbf)	992 lbf	n/a
Hydraulic Flow (gpm)	6.2 gpm	▲ 8.7 gpm
Travel Speed (mph)	n/a	11.2 mph

The headline numbers at a glance.

Kubota BX25DKubota LX2620

Engine HPhp

23 hp

▲23.3 hp

PTO HPhp

17.5 hp

▲19.4 hp

Weightlb

1,587 lb

▲1,775 lb

Loader Liftlb

745 lb

▲1,067 lb

3-Pt Lift (24 in)lb

670 lb

▲1,676 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX25D	KubotaLX2620


Engine Manufacturer	Kubota	Kubota
Engine Model	D902	D1305-E4-D36R (LX2620HSD); D1305-E4-D26Q (LX2620HSDC); D1305-E4-D36R (LX2620SUHSD)
Engine Type	Diesel, 3-cylinder, liquid-cooled inline	Indirect injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	54.8 in³	77.0 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	23 hp	23.3 hp
PTO Power	17.5 hp	19.4 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Pressurized radiator
Air Cleaner	Not Published	4.5 in paper filter with dual filter
Fuel System	Not Published	Indirect injection
Alternator	Not Published	Not Published

Pump Type	Not Published	Dual pump
Implement Flow	6.2 gpm	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	Not Published	8.7 gpm
Overall Hydraulic Pump Flow	6.2 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	6.6 gal	7.1 gal (LX2620HSD); 8.5 gal (LX2620HSDC); 7.1 gal (LX2620SUHSD)
Coolant Capacity	2.8 qt	4.5 qt (LX2620HSD); 5.7 qt (LX2620HSDC); 4.5 qt (LX2620SUHSD)
Crankcase Capacity	3.3 qt	4.2 qt
Transmission / Hydraulic System Capacity	Not Published	4.0 gal
Front Axle Fluid Capacity	Not Published	5.0 qt

PTO Type	Independent (rear); independent (mid)	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Mid-PTO, 2500 rpm	2500 rpm (LX2620HSD); 2500 rpm (LX2620HSDC); Optional (LX2620SUHSD)
Category, 3-Point Hitch	Category I (optional)	Category I
Hitch Lift Capacity	992 lb	2139 lb
Hitch Lift Capacity (at 24”)	670 lb	1676 lb
Lift Control Type	Position control	Position control valve

Transmission Type	Not Published	Hydrostatic transmission (HST), 3 ranges
No. of Speeds	Not Published	3 ranges
Max Travel Speed (Forward)	Not Published	11.2 mph
Max Travel Speed (Reverse)	Not Published	8.4 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock standard

Frame Type	Two-post folding ROPS (canopy optional)	Not Published
Steering	Hydrostatic type power steering	Hydrostatic power steering
Brakes	Wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Not Published	Deluxe seat with adjustable suspension (LX2620HSD); Deluxe seat with adjustable suspension (LX2620HSDC); Standard seat with normal suspension (LX2620SUHSD)
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	551 lb	1100 lb

Overall Length with 3-Point Hitch	95.5 in (tractor alone)	101.8 in (LX2620HSD); 103.9 in (LX2620HSDC); 101.8 in (LX2620SUHSD) (without 3-point hitch)
Overall Width	44.5 in	53.7 in
Wheelbase	55.1 in	65.6 in
Ground Clearance	8.7 in (front axle)	14.6 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	87.2 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	84.6 in

Tractor Weight (Base)	1587 lb (tractor only)	1775 lb (LX2620HSD); 2249 lb (LX2620HSDC); 1775 lb (LX2620SUHSD)
Weight with ROPS and Loader	2475 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	18x8.5-10 front, 26x12-12 rear (Turf/Bar/Industrial)	R1 Agricultural, R3 Turf, R4 Industrial (R14 hybrid also offered)
R1 Agricultural - Front	Not Published	180/85D12 (7-12)
R1 Agricultural - Rear	Not Published	320/85D16 (12.4-16)
R3 Turf - Front	Not Published	24x8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	18x8.5-10	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	26x12-12	14-17.5 or 15-19.5

Quick Attach Loader System	LA240A quick attach loader	LA535: 2-lever quick coupler standard; Swift-tach optional
Loader Model	LA240A; LA240A AU-SG (spill guard)	LA535
Loader Lift Height	LA240A: 71.3 in (at pin)	LA535: 84 in
Loader Lift Capacity (Full Height)	LA240A: 745 lb (at pin)	LA535: 1067 lb
Loader Breakout Force	LA240A: 992 lb (at 19.7 in) (19.7 in forward of pivot pin)	Not Published

Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Find a Kubota dealer near you

Kubota BX25D vs Kubota LX2620: Quick Answers

Which has more horsepower, the Kubota BX25D or the Kubota LX2620?

The Kubota LX2620 leads on engine hp at 23.3 hp hp, compared to 23 hp hp for the Kubota BX25D.

Which has more PTO horsepower, the Kubota BX25D or the Kubota LX2620?

The Kubota LX2620 leads on pto hp at 19.4 hp hp, compared to 17.5 hp hp for the Kubota BX25D.

Which is heavier, the Kubota BX25D or the Kubota LX2620?

The Kubota LX2620 leads on weight at 1,775 lb lb, compared to 1,587 lb lb for the Kubota BX25D.

Which has more loader lift capacity, the Kubota BX25D or the Kubota LX2620?

The Kubota LX2620 leads on loader lift at 1,067 lb lb, compared to 745 lb lb for the Kubota BX25D.

Which has more three-point hitch lift capacity, the Kubota BX25D or the Kubota LX2620?

The Kubota LX2620 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 670 lb lb for the Kubota BX25D.
